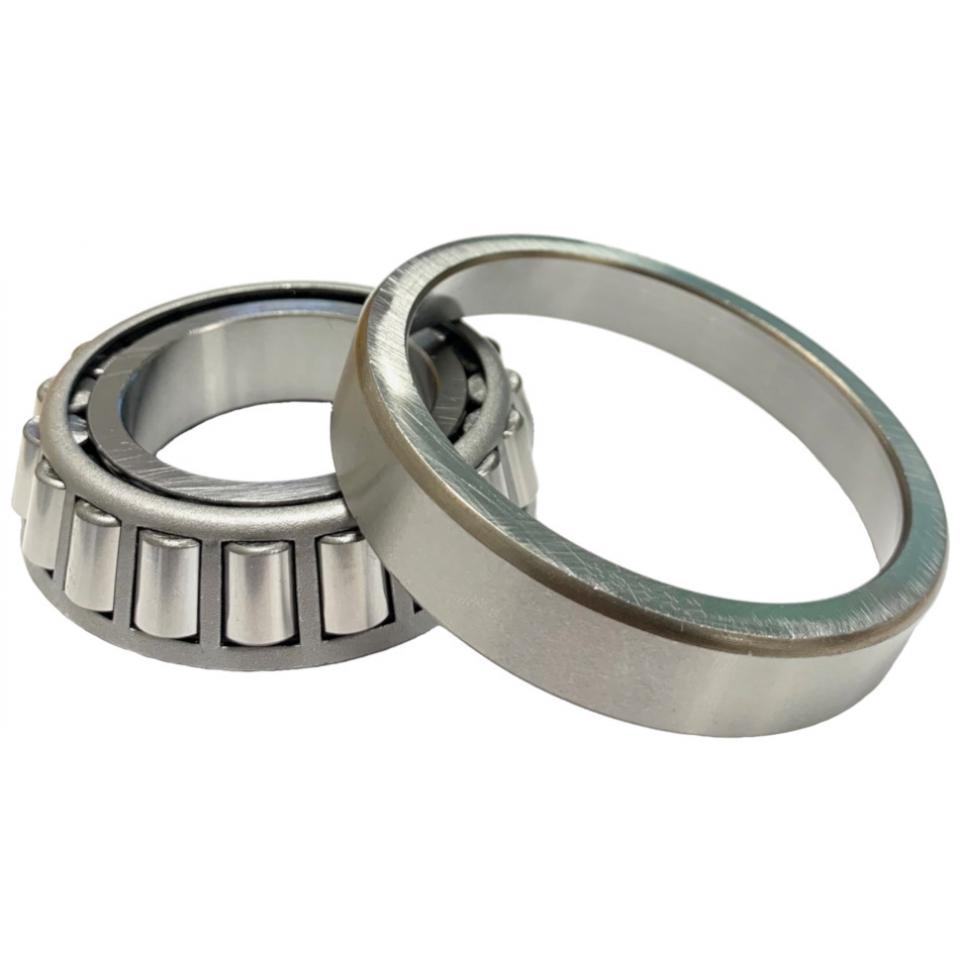

30202 NTN Tapered Roller Bearing 15x35x11mm
NTN Metric taper roller bearing priced cup & cone together 15mm inside x 35mm outside x 11mm width, also know as 4T30202
Regular price
£10.27
inc.VAT
£8.56 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
NTN Tapered roller bearings are angular contact bearings comprised of separate components (cones and cups), facilitating installation. By design they are suitable for combined loading. They can sustain very high loads (axial load in one direction) and tolerate slight misalignment.
Always fitted oppositely with a bearing of the same nature, they provide high assembly stiffness, particularly when pre-loaded. Their load capacity associated with their versatility makes them the second most commonly used items, after radial-contact ball bearings.
Dimensions
Inside diameter: 15mm
Outside diameter: 35mm
Width: 11mm
Load ratings
Dynamic: 13.4kN
Static: 12.3kN
Limiting speeds
Oil: 15 000rpm
Grease: 11 000rpm

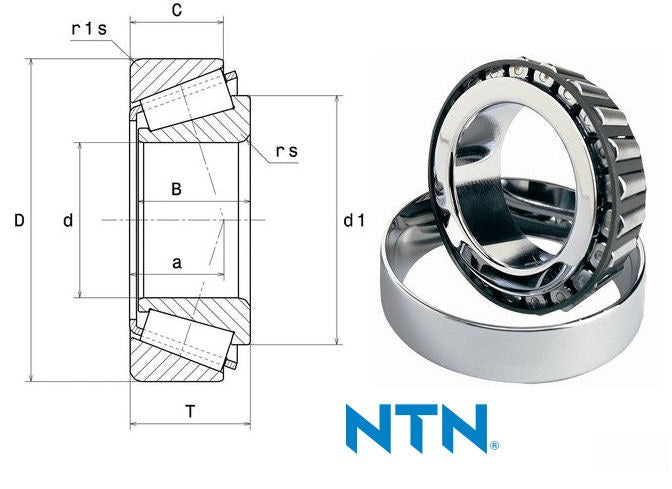

Product definition
d: 15mm
D: 35mm
B: 11mm
C: 10mm
T: 11.75mm
a: 8.5mm
rs min: 0.6mm
r1s min: 0.6mm
e: 0.35
Y2: 1.75
Y0: 0.95
Mass: 0.05kg
