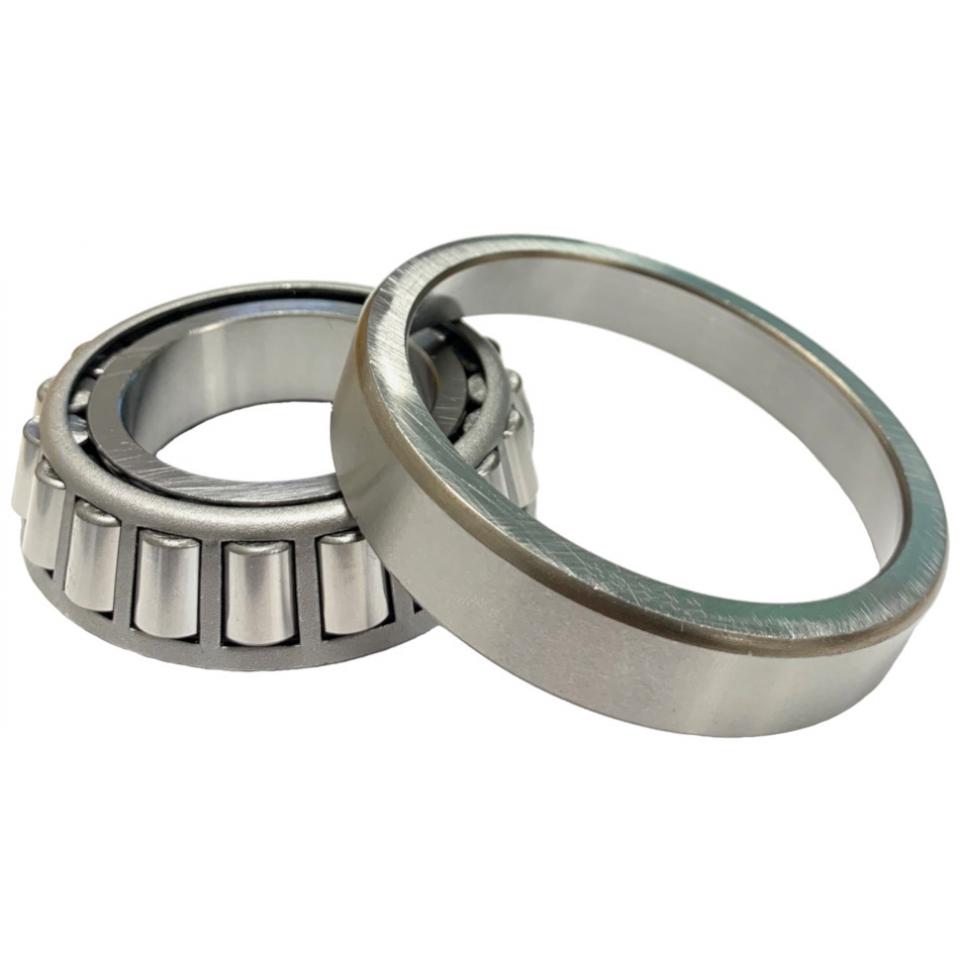

32005 NTN Tapered Roller Bearing 25x47x15mm
NTN Metric taper roller bearing priced cup & cone together 25mm inside x 47mm outside x 15mm width, also known as 4T-32005, 4T32005, 4T32005X, 4T-32005X, T4CC025
Regular price
£15.48
inc.VAT
£12.90 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
NTN Tapered roller bearings are angular contact bearings comprised of separate components (cones and cups), facilitating installation. By design they are suitable for combined loading. They can sustain very high loads (axial load in one direction) and tolerate slight misalignment.
Always fitted oppositely with a bearing of the same nature, they provide high assembly stiffness, particularly when pre-loaded. Their load capacity associated with their versatility makes them the second most commonly used items, after radial-contact ball bearings.
Dimensions
Inside diameter: 25mm
Outside diameter: 47mm
Width: 15mm
Load ratings
Dynamic: 27.8kN
Static: 33.5kN
Limiting speeds
Oil: 11 000rpm
Grease: 7 900rpm

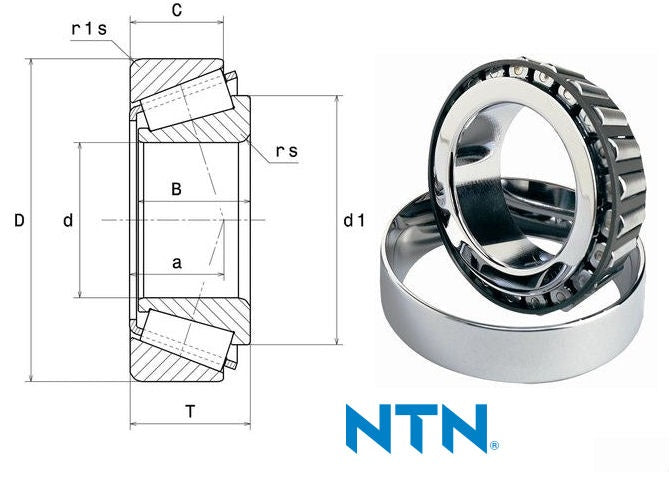

Product definition
d: 25mm
D: 47mm
B: 15mm
C: 11.5mm
T: 15mm
d1: 36.5mm
a: 12mm
rs min: 0.6mm
r1s min: 0.6mm
e: 0.43
Y2: 1.39
Y0: 0.77
Mass: 0.11kg
