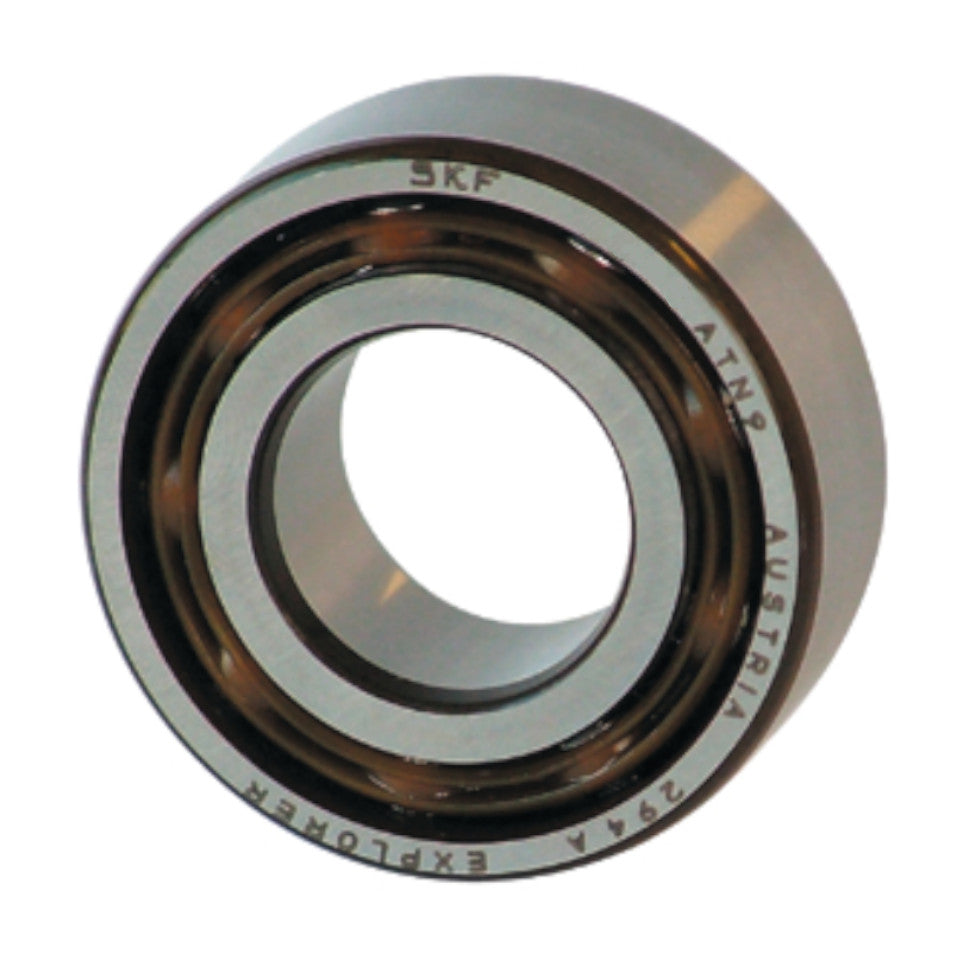

Angular contact ball bearings have raceways in the inner and outer rings which are displaced with respect to each other in the direction of the bearings axis. This means that they are suitable for combined loads both radial and axial. They provide a rigid bearing arrangement and accommodate tilting moments well.

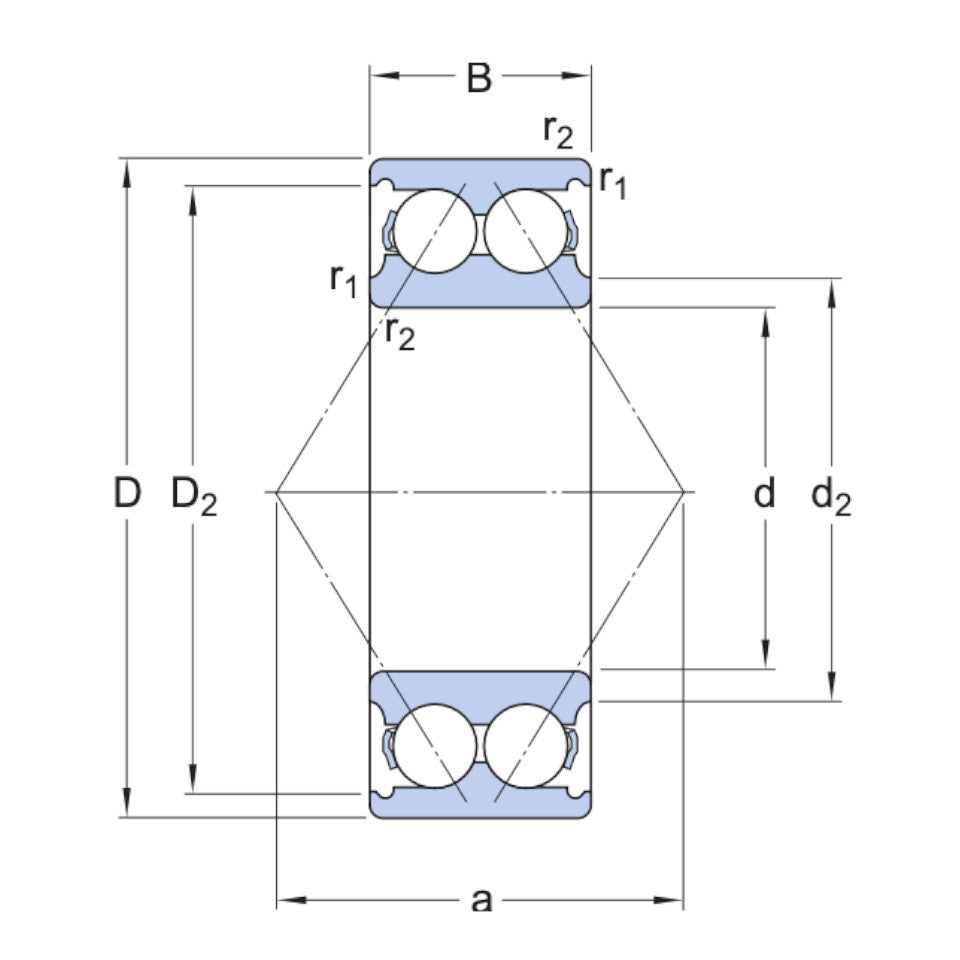

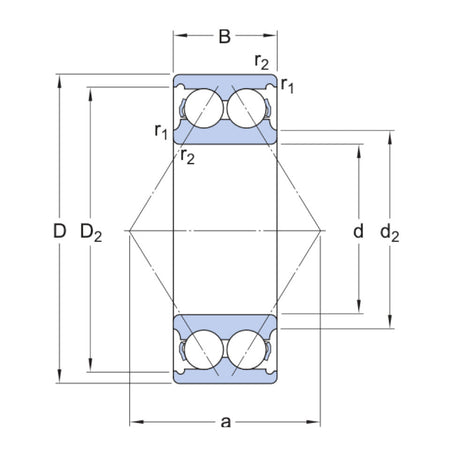

d: 17mm
D: 40mm
B: 17.5mm
Dynamic Load: 14.3kn
Static Load: 8.8kn
Fatigue Load Limit: 0.365kn
Reference Speed: 15 000 r/min
Limiting Speed: 16 000 r/min
Mass: 0.096kg
d2: 25.1mm
D2: 33.6mm
r1r2 Min: 0.6mm
a: 23mm
da Min: 21.4mm
Da Max: 35.6mm
ra Max: 0.6mm
