Home » 62305-2RSR-C3 FAG Sealed Deep Groove Ball Bearing. 25x62x24mm
Single row ball bearings with two rubber seals. 25mm inside x 62mm outside x 24mm width
Single row ball bearings with two rubber seals. 25mm inside x 62mm outside x 24mm width

62305-2RSR-C3 FAG Sealed Deep Groove Ball Bearing. 25x62x24mm

In stock
SKU: 62305-2RSR-C3-FAG
FAG Single row ball bearings with two rubber seals. 25mm inside x 62mm outside x 24mm width
£21.72 inc.VAT
£18.10 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50

Product details

  • Vendor FAG
  • SKU 62305-2RSR-C3-FAG
  • Inside diameter (d) 25mm
  • Outside diameter (D) 62mm
  • Width (B) 24mm
Description Delivery Returns
Single row deep groove ball bearings are used in a wide variety of applications, they are simple in design, non-separable, suitable for high speeds and are robust in operation, and need little maintenance. Deep raceway grooves and the close conformity between the raceway grooves and the balls enable deep groove ball bearings to accommodate axial loads in both directions, in addition to radial loads.

Single row deep groove ball bearings are manufactured as open type (unsealed), sealed and shielded, the most popular sizes of deep groove ball bearings are also produced in sealed versions with shields or contact seals on one or both sides, the bearings with shields or seals on both sides are lubricated for life and are maintenance free. A sealed bearings seals has contact on the bearings inner and outer, a shielded bearings shield has contact on the outer only, and Shielded bearings are primarily intended for applications where the inner ring rotates. If the outer ring rotates, there is a risk that the grease will leak from the bearing at high speeds.

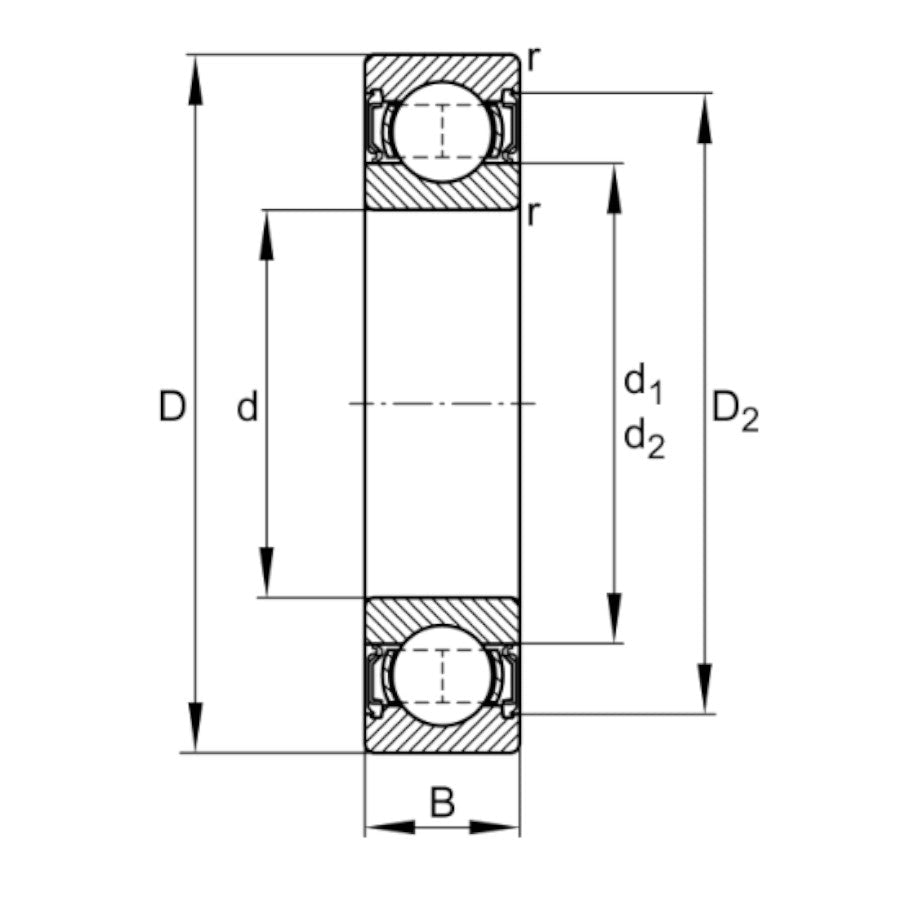

Principal Dimensions
Inside diameter: 25mm
Outside diameter: 62mm
Width: 24mm

Basic Load Ratings
Dynamic: 23.62Kn
Static: 12.13kn

Speed Ratings
Limiting speed: 7,300 r/min

Temperature range:-30 to +110 C
