PTFE lined maintenance required general purpose male rod ends suitable for medium heavy applications requiring low friction & good wear resistance

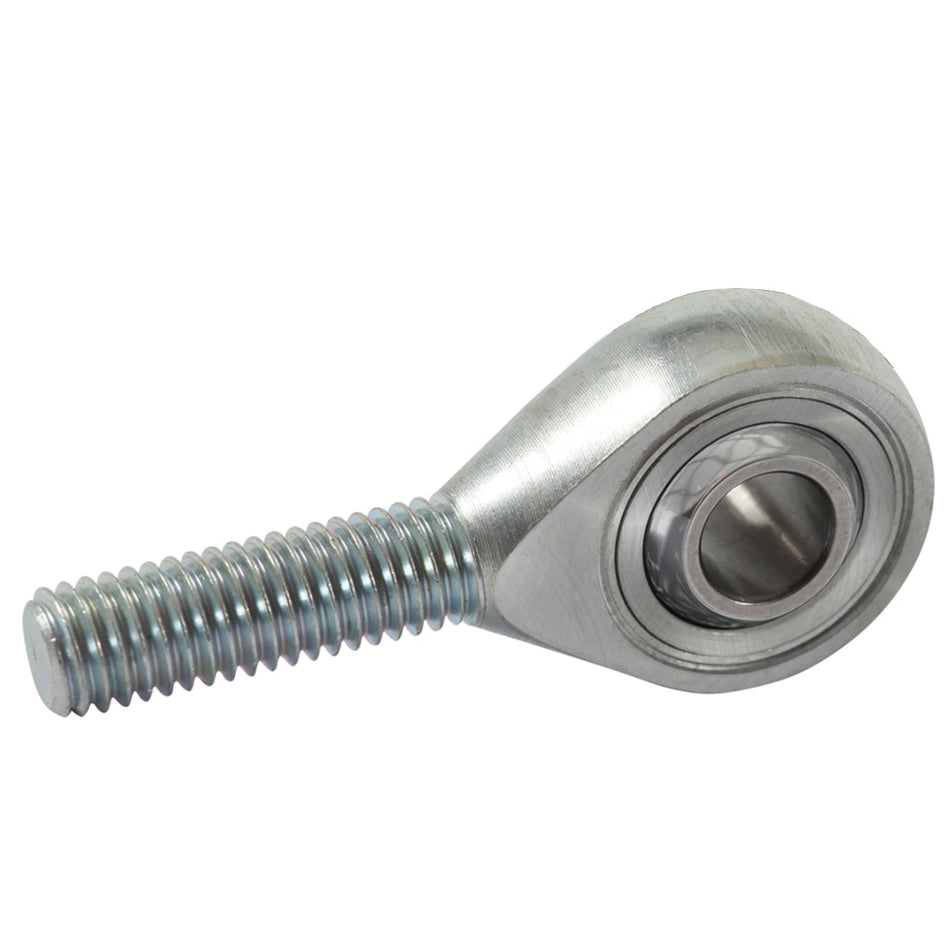

MS Series is a 3 piece standard range of self lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance and have a wide operating temperature range.
Materials Specifications
Housing: Steel 230M07PB Zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated stainless steel 440C and SAE660. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L
Temperature Range
-30 to +170 degrees
Possible Applications
Light to medium/heavy industrial/mechanical applications
Construction equipment
Agricultural equipment
Recreational vehicles
Precision equipment
Linear movement
Specification
ELV and RoHS compliant

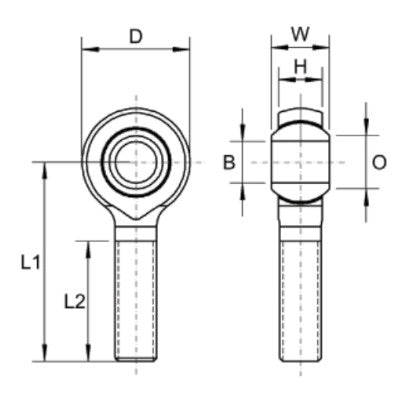

Product Dimensions
Bore Size: 3mm
Thread: M3x0.5
W: 6mm
H: 4.50mm
D: 12mm
L1: 27mm
L2: 15mm
O: 5.20mm
Static load ratings (Newtons) radial: 3,040
