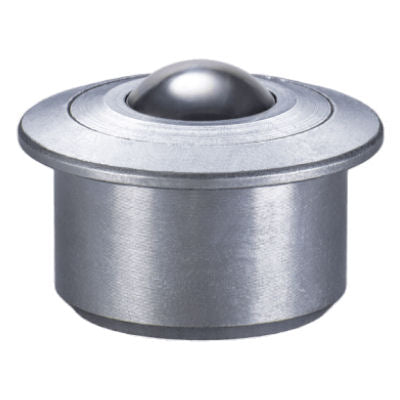

Medium duty range push fit ball transfer units
Medium duty metric ball units are machined from solid steel bar & hardened for heavy load capacity & wear resistance. Reinforced machined steel top cap protects against impact from misalignment of the conveyed item. Main ball sizes larger than 19mm incorporate a felt seal to minimise contamination. Lubricated M and MG series are fitted with single drain hole.
Standard materials are chrome steel AISI52100 balls and machined AISI1016 steel housing, toughened & zinc plated
Solve specific application requirements by upgrading materials - select option by adding suffix
A = Stainless steel balls AISI420 but other materials as standard. Reduce load by 30 percent
SS = All parts in stainless steel - outer housing AISI416, balls AISI420. Reduce load by 30 percent
