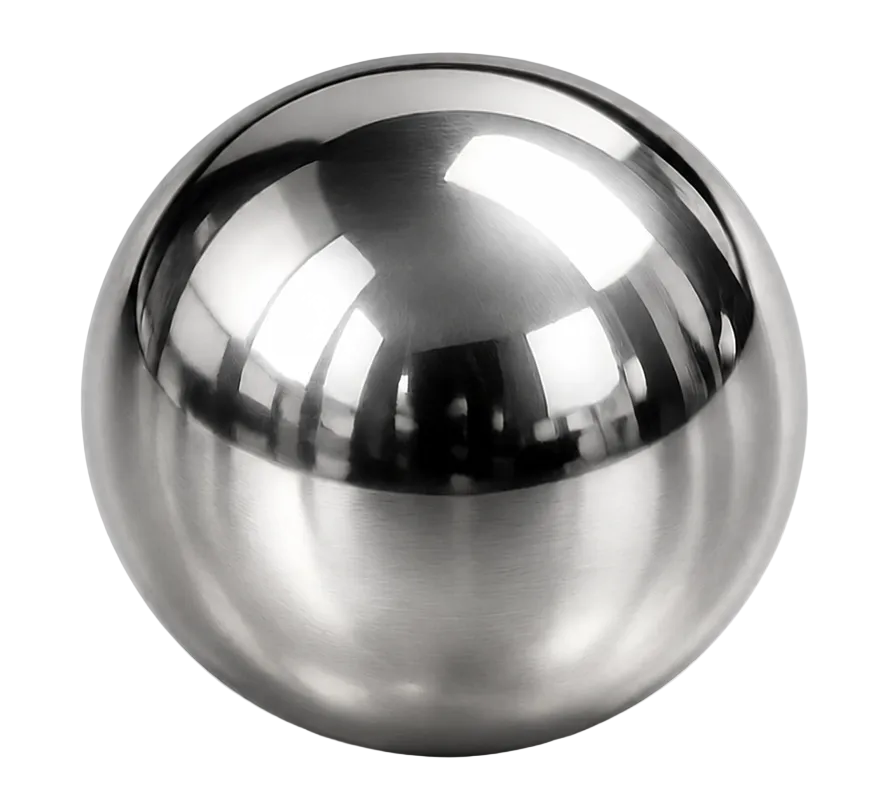

0.5mm Diameter Grade 100 AISI316 Stainless Steel Balls
Couldn't load pickup availability
Product details
- Vendor BKL Brand
- SKU 0.5mm-316-GD100/10PACK
- Outside diameter (D) 0.5mm
Applications for 316 stainless steel balls include dairy, brewery, paper, pulp, photographic chemicals, inks, synthetic fiber, textile benches and dye stuffs equipment. Balls manufactured from 316 stainless steel are FDA approved for use in surgical implants. Due to high temperature properties type 316 stainless steel balls may be used at elevated temperatures.
International Equivalents
AISI316, X 5 Cr Ni Mo17-12-2, AFN Z6 CND 17.11, JIS SUS 316, Wks 1.4401
Min Crushing Load: 25kg
Hardness: 25-39 HRC
Weight each: 0.00051561g
Can be drilled
Attracted to magnets: No
Tensile Strength: 180,000 psi
Yield Strength: 150,000 psi
Density: 0.290 lbs/cu in
Chemical composition (percentage)
Carbon 0.070
Chromium 16.5-18.5
Nickel 10-13
Silicon 1.000
Molybdenum 2-2.5
Manganese 2
Phosphor 0.045
Sulphur 0.030
