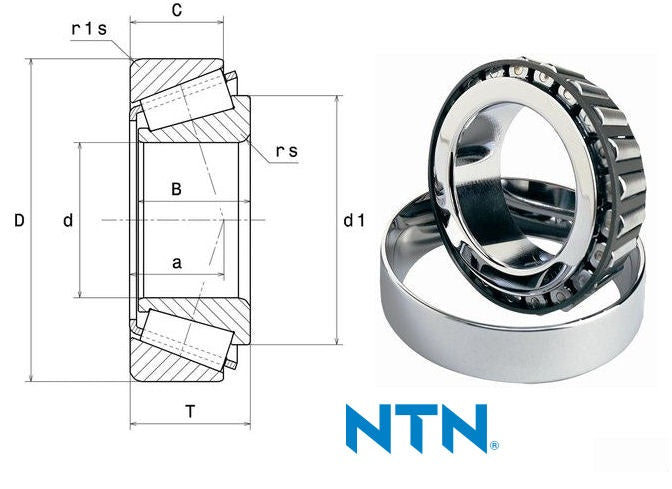

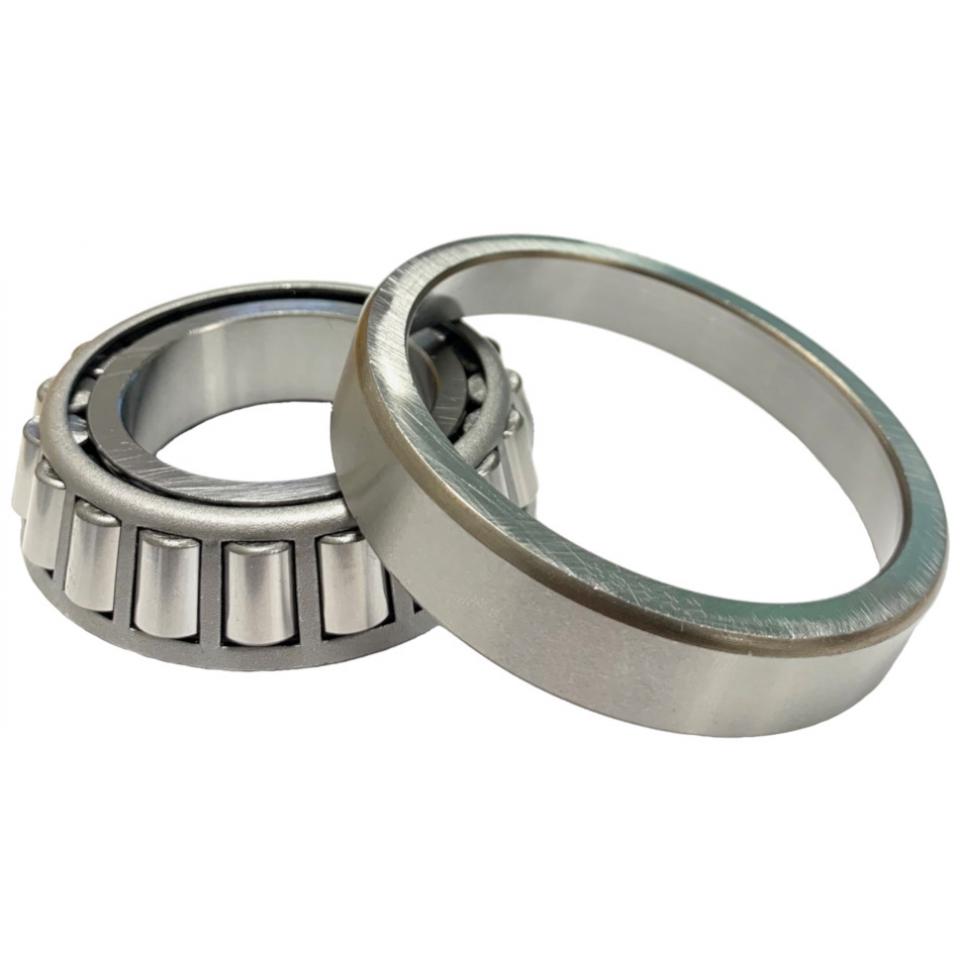

03062/03162 NTN Tapered Roller Bearing 15.875x41.275x14.288mm
NTN Imperial taper roller bearing priced cup & cone together 0.6250 inch (15.875mm) inside x 1.6250 inch (41.275mm) outside x 0.5625 inch (14.288) width, also known as 4T-03062/03162
Regular price
£24.66
inc.VAT
£20.55 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
NTN Tapered roller bearings are angular contact bearings comprised of separate components (cones and cups), facilitating installation. By design they are suitable for combined loading. They can sustain very high loads (axial load in one direction) and tolerate slight misalignment.
Always fitted oppositely with a bearing of the same nature, they provide high assembly stiffness, particularly when pre-loaded. Their load capacity associated with their versatility makes them the second most commonly used items, after radial-contact ball bearings.
Dimensions
Inside diameter: 15.875mm - 0.6250 inch
Outside diameter: 41.275mm - 1.6250 inch
Width: 14.288mm - 0.5625 inch
Always fitted oppositely with a bearing of the same nature, they provide high assembly stiffness, particularly when pre-loaded. Their load capacity associated with their versatility makes them the second most commonly used items, after radial-contact ball bearings.
Dimensions
Inside diameter: 15.875mm - 0.6250 inch
Outside diameter: 41.275mm - 1.6250 inch
Width: 14.288mm - 0.5625 inch
