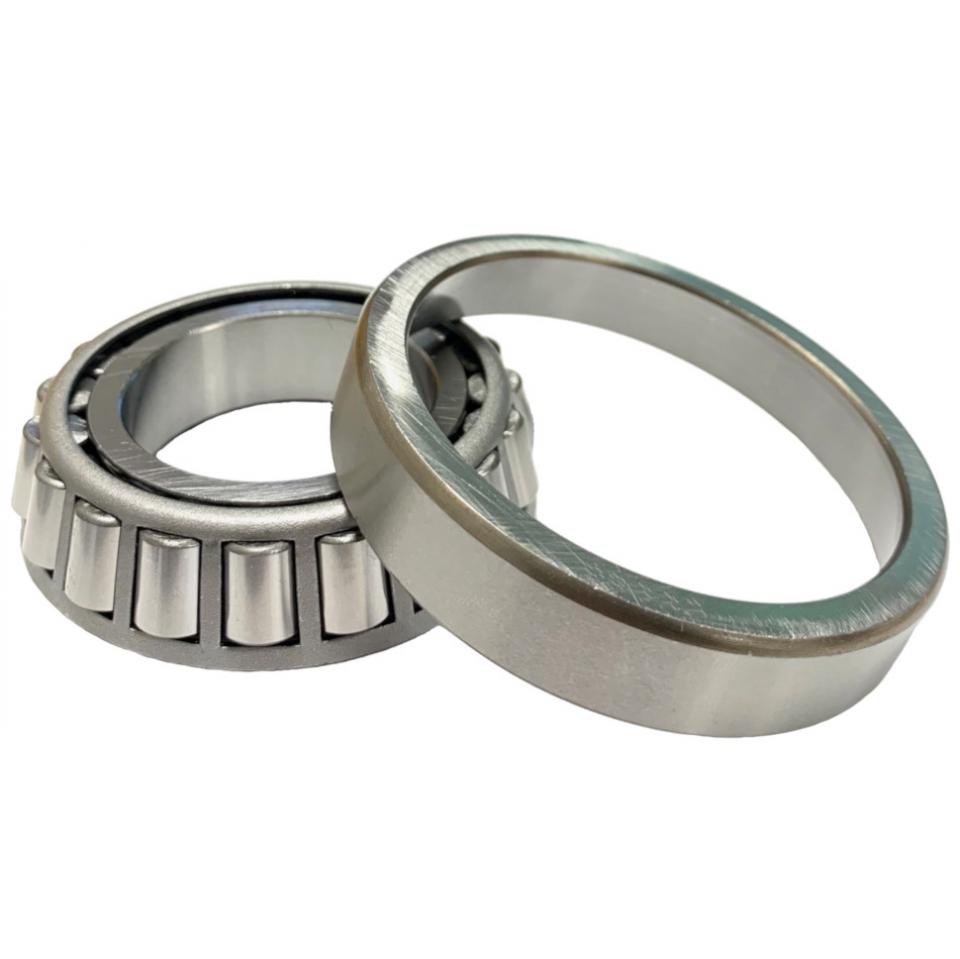

07100S/07210X NTN Tapered Roller Bearing 25.400x50.800x15.011mm
NTN Imperial taper roller bearing priced cup & cone together 1 inch (25.400mm) inside x 2 inch (50.800mm) outside x 0.5910 inch (15.011mm) width, also known as 4T-07100S/07210X, 4T07100S/07210X
Regular price
From
£19.20
£16.00 exc.VAT
Couldn't load pickup availability
NTN Tapered roller bearings are angular contact bearings comprised of separate components (cones and cups), facilitating installation. By design they are suitable for combined loading. They can sustain very high loads (axial load in one direction) and tolerate slight misalignment.
Always fitted oppositely with a bearing of the same nature, they provide high assembly stiffness, particularly when pre-loaded. Their load capacity associated with their versatility makes them the second most commonly used items, after radial-contact ball bearings.
Dimensions
Inside diameter: 25.4mm - 1 inch
Outside diameter: 50.8mm - 2 inch
Width: 15.01mm - 0.5910 inch
Load ratings
Dynamic: 26kN
Static: 28kN
Limiting speeds
Oil: 10 000rpm
Grease: 7 500rpm

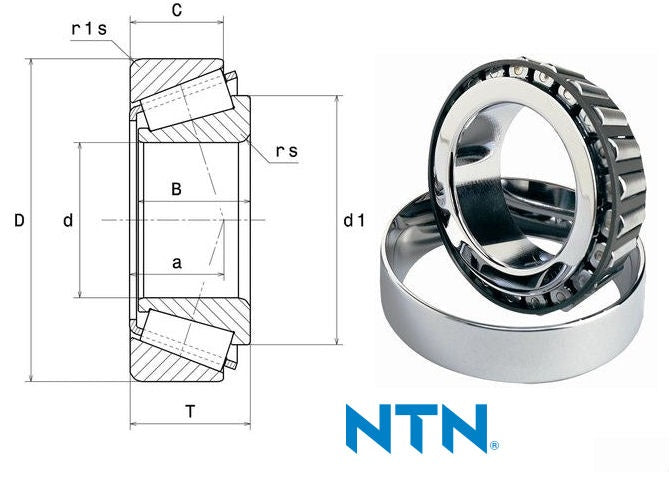

Product definition
d: 25.4mm
D: 50.8mm
B: 14.26mm
C: 12.7mm
T: 15.01mm
a: 18mm
rs min: 1.5mm
r1s min: 1.5mm
e: 0.4
Y2: 1.49
Y0: 0.82
Mass: 0.13kg
