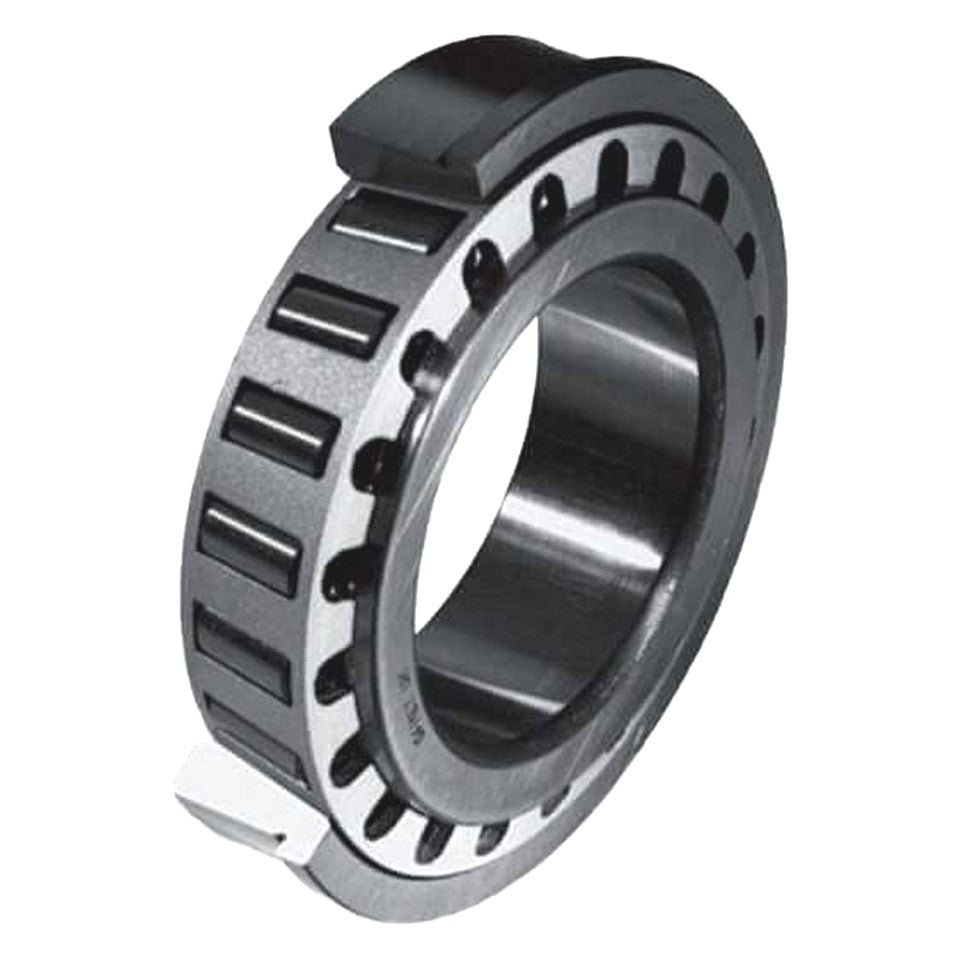

Gamet Plain Cup Series comprises precision taper roller bearings developed for applications requiring high accuracy, controlled preload, and flexible housing arrangements. Designed and manufactured in the UK by Gamet Bearings, this series reflects the expertise of one of the world’s leading precision bearing specialists, combining advanced manufacturing techniques with proven bearing design.
Plain cup bearings feature a smooth, unflanged outer cup, allowing axial location to be controlled by the surrounding components rather than the bearing itself. This makes the series particularly well suited to machine tool spindles, gearboxes, and general industrial assemblies where accurate positioning and adjustment are required. The basic single-row bearing arrangement provides a simple and cost-effective solution for light to medium loaded applications while still delivering excellent rigidity and reliability.
The Gamet Plain Cup Series is manufactured using high-quality bearing materials and precision-ground components to ensure consistent performance and long service life. Cone bore run-out tolerances are tightly controlled, typically ranging from 0.5 microns to 1.5 microns, supporting high levels of running accuracy and smooth operation. The range covers a comprehensive selection of sizes from 25 mm bore upwards, making it suitable for a wide variety of industrial and precision engineering requirements.
All bearings are quality assured in accordance with BS EN ISO 9001:2000 standards, ensuring dependable manufacturing consistency and traceability.
Supplied by Bearing King Ltd, the Gamet Plain Cup Series provides a reliable, precise, and economical bearing solution backed by British engineering expertise and comprehensive technical support.

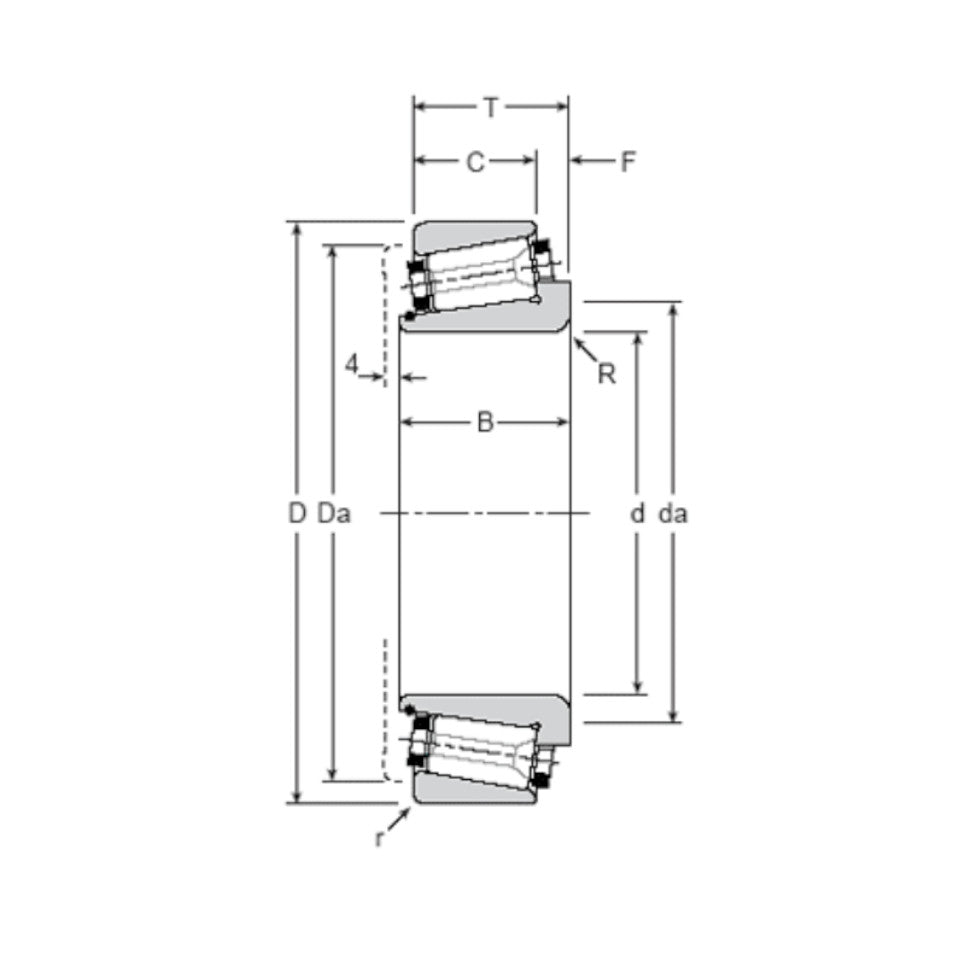

Shaft (inner) diameter (d): 60.00 mm
Outer diameter (D): 110.00 mm
Basic bearing width (B): approximately 33.00 mm
Overall assembled width (T): approximately 30.16 mm nominal
Outer ring (cup) width (C): approximately 23.81 mm
Inner ring (cone) face width (F): approximately 6.35 mm
Recommended shaft shoulder diameter (da): approximately 75 mm
Recommended housing shoulder diameter (Da): approximately 98 mm
Corner radii (r, R): approximately 2.50 mm
Typical static stiffness values for the single-row plain cup type are approximately 72 daN per micron radially and approximately 14 daN per micron axially.
Static load ratings for the plain cup type, based on 10,000 hours at 500 rpm, are approximately 1700 daN radial and approximately 1100 daN axial.
The maximum recommended operating speed for the plain cup variant is approximately 6200 rpm.
The typical component weight for the plain cup variant is approximately 1.090 kg.
This bearing consists of cone 120060 and plain cup 120110 and is designed to support combined radial and axial loads in one direction, with preload and axial positioning controlled by the surrounding assembly.
