12648/12610 NTN

In stock
SKU: 12648/12610-NTN

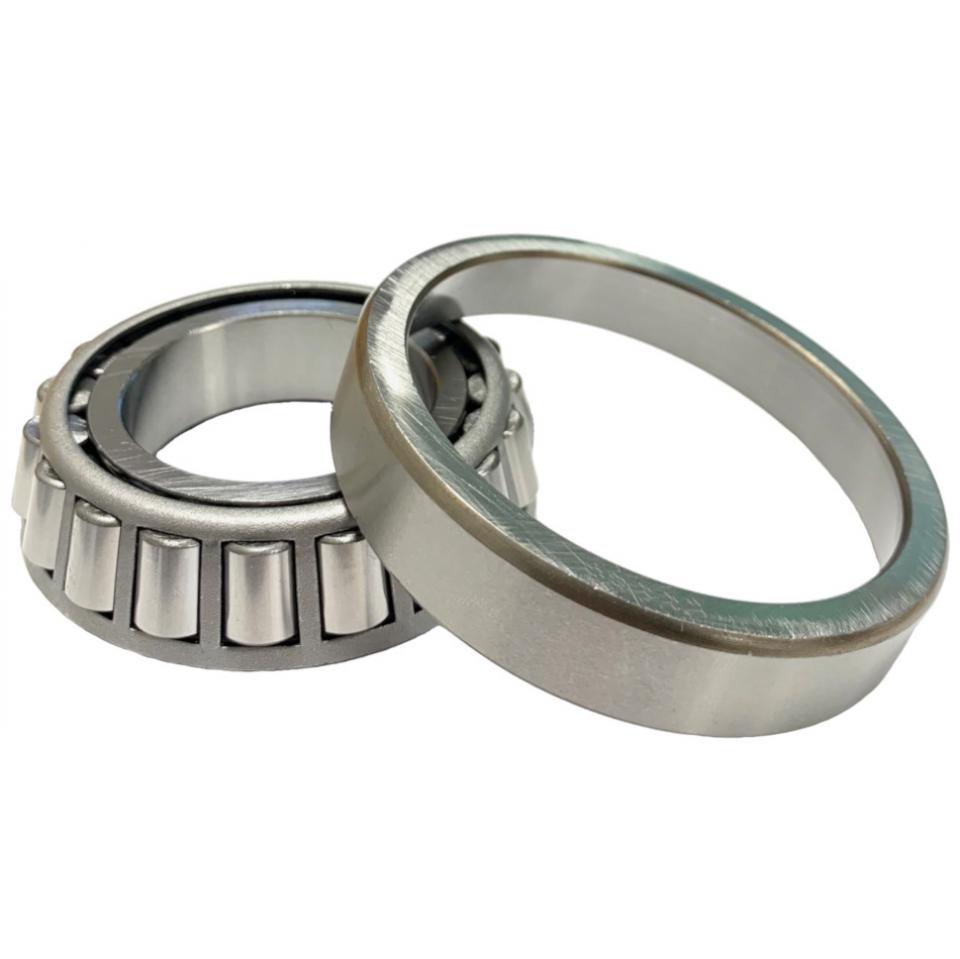

NTN Imperial taper roller bearing priced cup & cone together 0.8750 inch inside x 1.9687 inch outside x 0.6900 inch width, also known as 4T-12648/12610
Regular price £19.54 inc.VAT
£16.28 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50

Product details

  • Vendor NTN
  • SKU 12648/12610-NTN
  • Inside diameter (d) 22.225mm
  • Outside diameter (D) 50.005mm
  • Width (B) 17.526mm
Tapered roller bearings are angular contact bearings comprised of separate components (cones and cups), facilitating installation. By design they are suitable for combined loading. They can sustain very high loads (axial load in one direction) and tolerate slight misalignment.

Always fitted oppositely with a bearing of the same nature, they provide high assembly stiffness, particularly when pre-loaded. Their load capacity associated with their versatility makes them the second most commonly used items, after radial-contact ball bearings.

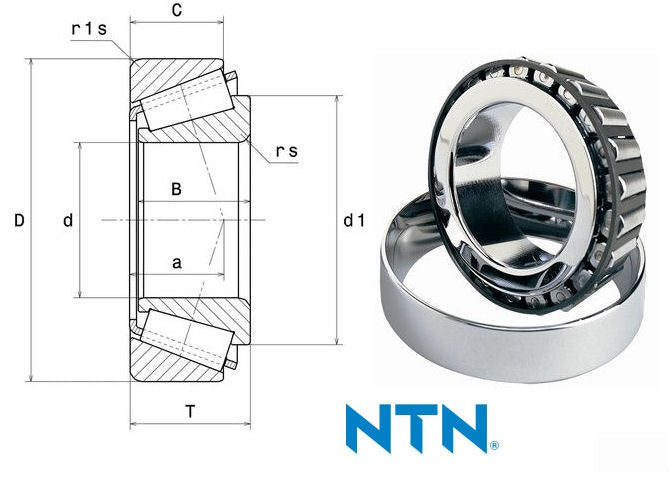

Bore: 0.8750 inch / 22.225mm
Outside Dia: 1.9687 inch / 50.005mm
Width: 0.6900 inch / 17.526mm
