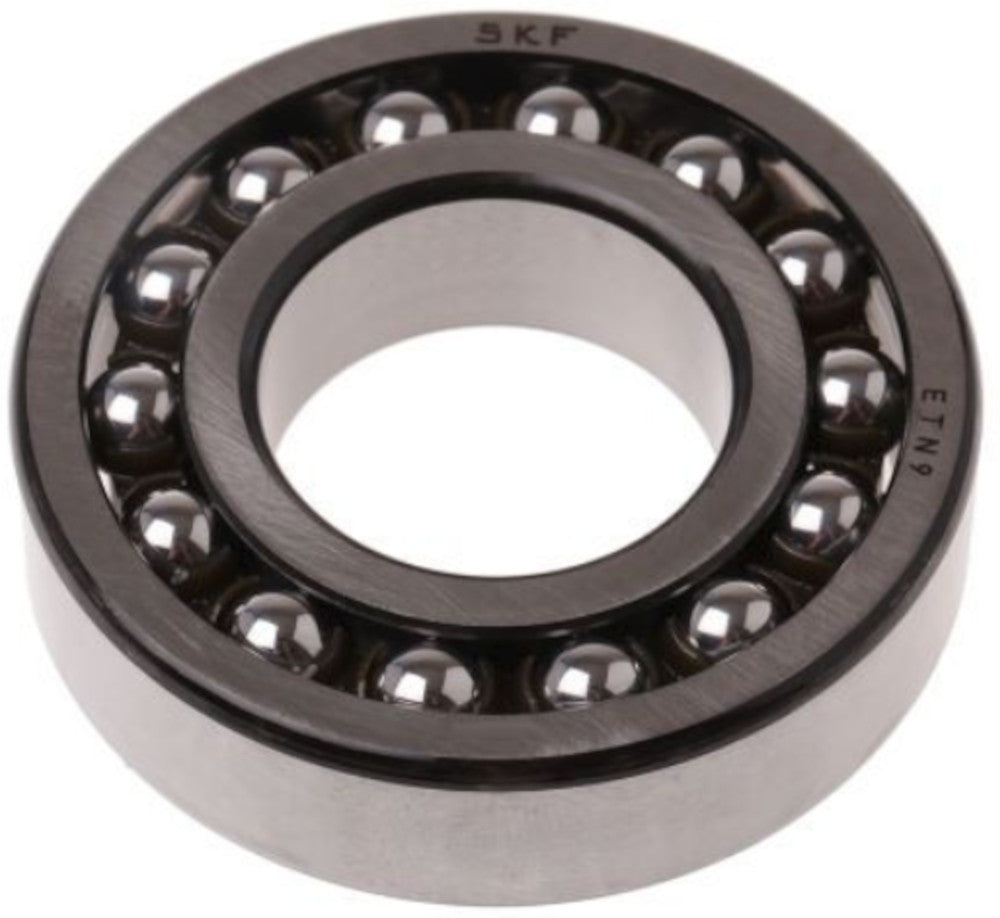

135TN9 SKF Self Aligning Ball Bearing 5x19x6mm

135TN9 SKF Self Aligning Ball Bearing 5x19x6mm

Name: 135TN9 SKF Self Aligning Ball Bearing 5x19x6mm
Brand: SKF
SKU: 135TN9-SKF
Price: 15.15 GBP
Availability: InStock

In stock

SKU: 135TN9-SKF

No reviews

Self aligning ball bearing with polyamide cage 5mm inside x 19mm outside x 6mm wide, also known as 135TV, 135TVH, 135TN

£18.18 inc.VAT

£15.15 exc.VAT

All prices exclude VAT unless otherwise stated

Product variants

FREE UK MAINLAND DELIVERY ON ORDERS OVER £50

Product details

Vendor SKF
SKU 135TN9-SKF
Inside diameter (d) 5mm
Outside diameter (D) 19mm
Width (B) 6mm

The self-aligning ball bearing was invented by SKF. It has two rows of balls and a common sphered raceway in the outer ring. The bearing is consequently self-aligning and insensitive to angular misalignments of the shaft relative to the housing.

The design of self-aligning ball bearings is such that angular misalignment between the outer and the inner rings can be accommodated without any negative effect on bearing performance.

Principal dimensions
d: 5mm
D: 19mm
B: 6mm

Basic load ratings
Dynamic: 2,51kn
Static: 0,48kn

Fatigue load limit
0,025kn

Speed ratings
Reference speed: 63 000 r/min
Limiting speed: 45 000 r/min

Mass: 0,009kg

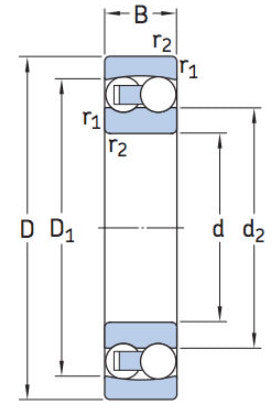

Dimensions
d2: 10,3mm
D1: 15,4mm
R1,2 min: 0,3mm
