15-C Kukko Separating Set
For removing ball bearings, roller bearings, inner races and other tight parts if there is not enough space to use pulling hooks.
Regular price
£774.85
inc.VAT
£645.71 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
Description

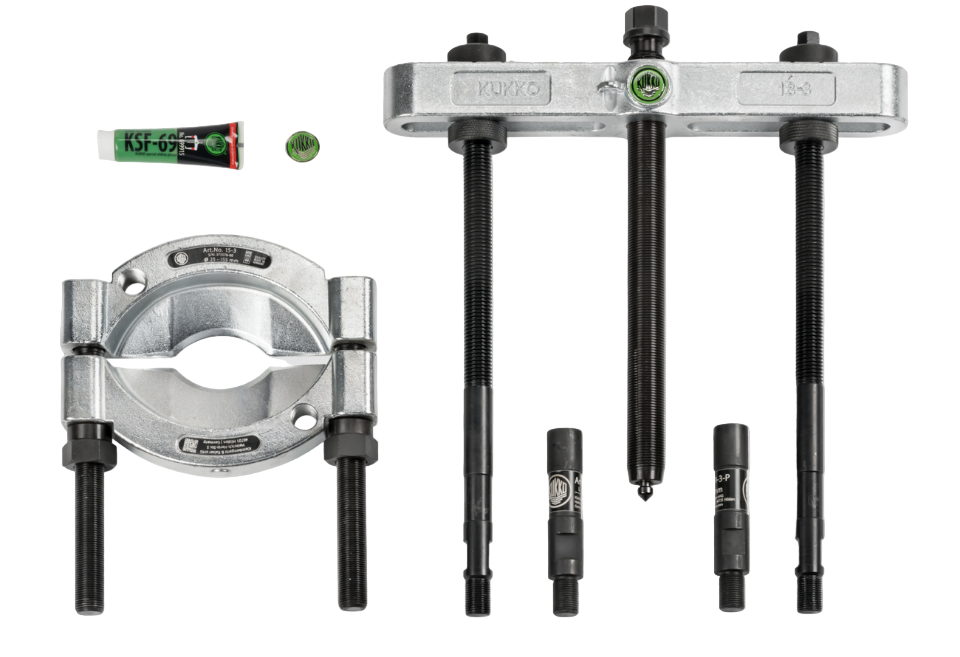

4-parts, the sets contain one separator, one pulling device and a pair of extensions.
The sharp blades enable flush parts to be removed where pulling jaws cannot be used.
The wedge-shaped separator jaws are secured underneath the component to be removed.
The large supporting surfaces protect the parts to be pulled.
Instructions on the cover.
Advantage
Ultimate stability when removing, as the separator and pulling device are screwed firmly together.
Practical package for universal use.
Complete easy-to-manage package.
Almost all components available as replacement parts, time-saving order process thanks to numbering system.

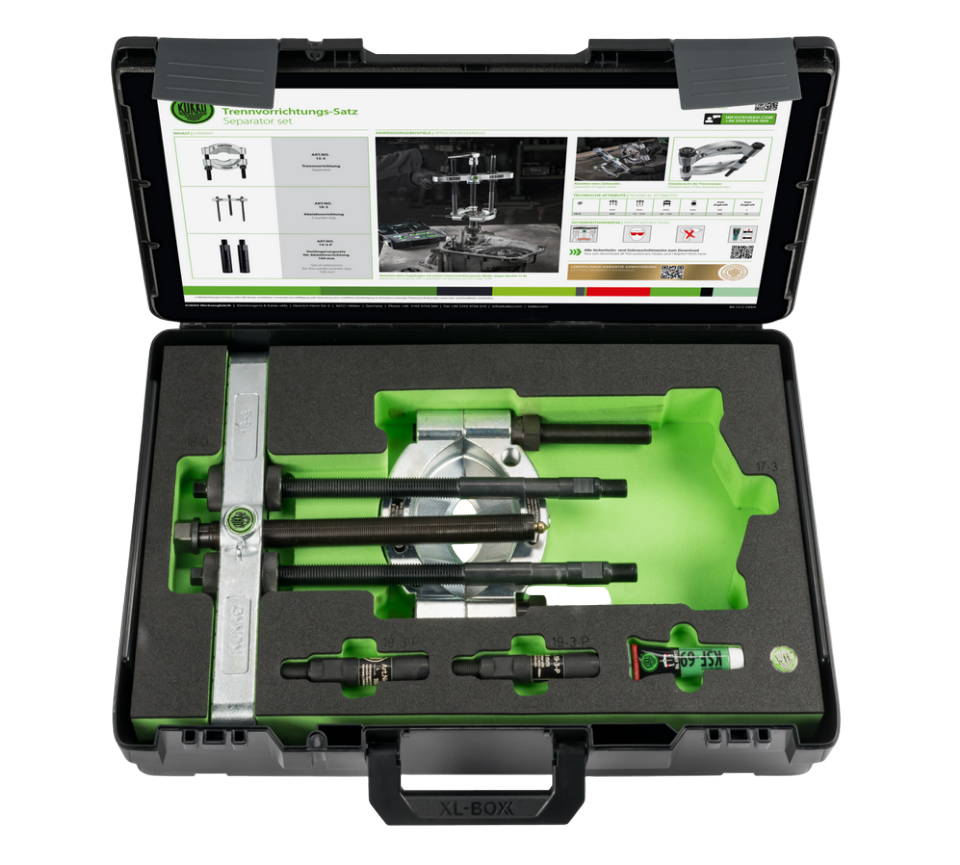

Kit in the tried-and-tested KUKKO-i-Boxx-System.
Kukko quality standards
Quality made in Germany.
Strong design, high performance and long service life.
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
Safety label to ensure protection of intellectual property.
A tube of KUKKO special grease included for pressure spindle.
How it works
The wedge-shaped separator jaws are secured underneath the component to be removed.
The separator jaws are clamped by tightening the nuts on the side bolts in equal measure.
The flat surfaces of the separator blades are used to remove sensitive parts without damaging them. The separator blades provide a larger supporting surface to prevent the parts from twisting.
For removal, the tension bolts on the pulling device have to be screwed into the separator.
Note: The clamping depths can be increased using the extensions included in the set.
Safety information
If several parts have to be removed, always follow a step-by-step process. Do not remove several parts at the same time.
The separator blades' support surfaces must always sit fully beneath the part to be removed.
Do not use any electrical or pneumatic servo screwdrivers or hammer drills.
Protective blanket required.
Protective goggles required.
