15123/15245 NTN

In stock
SKU: 15123/15245-NTN

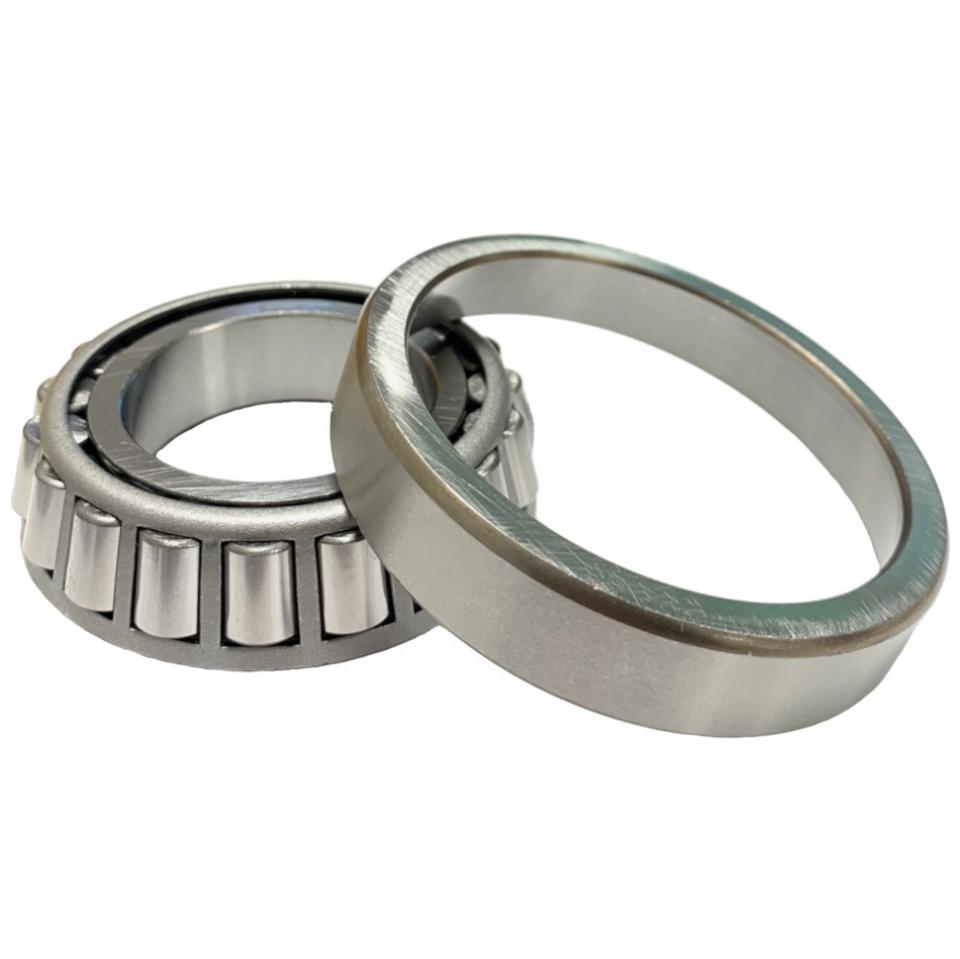

NTN Imperial taper roller bearing priced cup & cone together 1.250 inch inside x 2.4409 inch outside x 0.7150 inch width, also known as 4T-15123/15245
Regular price £14.86 inc.VAT
£12.38 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50

Product details

  • Vendor NTN
  • SKU 15123/15245-NTN

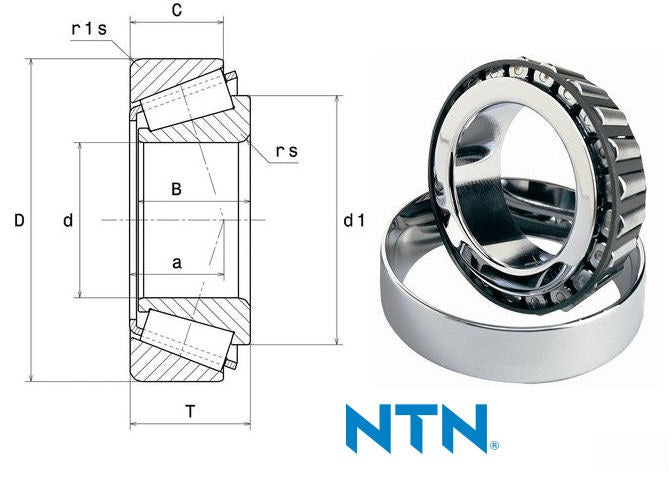

  • Inside diameter (d) 31.75mm
  • Outside diameter (D) 62mm
  • Width (B) 18.161mm
Tapered roller bearings are angular contact bearings comprised of separate components (cones and cups), facilitating installation. By design they are suitable for combined loading. They can sustain very high loads (axial load in one direction) and tolerate slight misalignment.

Always fitted oppositely with a bearing of the same nature, they provide high assembly stiffness, particularly when pre-loaded. Their load capacity associated with their versatility makes them the second most commonly used items, after radial-contact ball bearings.

Bore: 1.250 inch / 31.750mm
Outside Dia: 2.4409 inch / 62.00mm
Width: 0.7150 inch / 18.161mm
