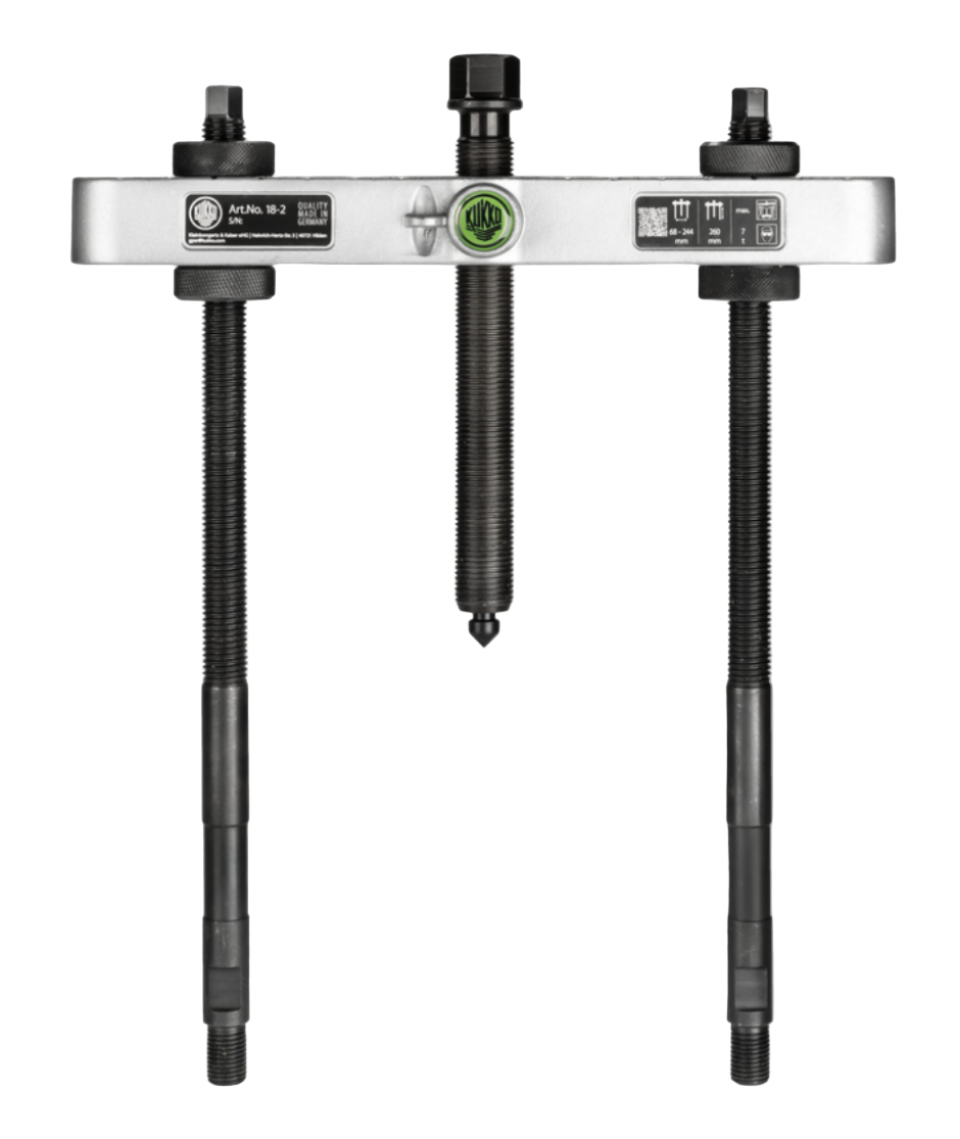

18-2 Kukko Pulling Device for use with Series 17, 15, 18-AS and 18-A

In stock
SKU: 18-2-KUKKO
Kukko pulling device for use with series 17, series 15, series 18-AS and series 18-A. Leg length 125-250mm, leg width 60-200mm
From £165.43
£137.86 exc.VAT

Product details

  • Vendor KUKKO
  • SKU 18-2-KUKKO
  • Barcode 4021176075759
Description Delivery Returns
Description
For use with series 15 and 17 separators.
The pulling device can be combined with the series 18-0-AS screw adapter to remove parts with threaded holes.
Mechanical pressure screw.
Milled thread treated with special coating.

Advantage
Ultimate stability when removing, as the separator and pulling device are screwed firmly together.
Almost all components available as replacement parts, time-saving order process thanks to numbering system.

How it works

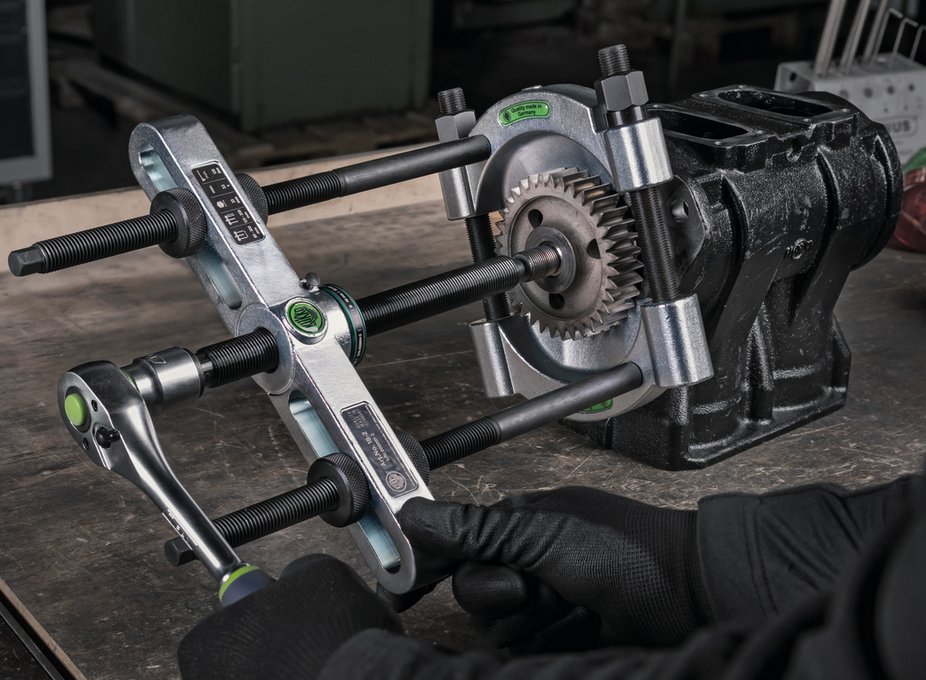

The wedge-shaped separator jaws are secured underneath the component to be removed.
For removal, the tension bolts on the pulling device have to be screwed into the separator.
Use the knurled screws to position the cross-beam.
Tightening of the pressure screw and the resulting pressure removes the part from the shaft.

Goes with
15-2 Separators
17-2 Separator with quick clamping pressure spindle

Spare part of
15-B Separating-set
17-B Separating-set with quick clamping pressure spindle
K-20-15 Universal puller set with separator
29-B Universal puller set in TANOS-Systainer

Part of
WT-010 Puller product range - commercial vehicles - TOP
15-B Separating-set
17-B Separating-set with quick clamping pressure spindle
WT-50 Puller product range - industrial - TOP
K-20-15 Universal puller set with separator
29-B Universal puller set in TANOS-Systainer ®
WT-019 Puller product range - separating

Accessories
8-01 Long hydraulic spindle
19-2-P 2 extensions for pulling devices (pair)
18-2-AS Set of screw adapters
18-208A Internal Extracting
18-210A Internal Extracting
18-212A Internal Extracting
18-214A Internal Extracting
18-216A Internal Extracting
18-218A Internal Extracting

Safety information
If several parts have to be removed, always follow a step-by-step process. Do not remove several parts at the same time.
The separator blades support surfaces must always sit fully beneath the part to be removed.
Do not use any electrical or pneumatic servo screwdrivers or hammer drills.
Protective blanket required.
Protective goggles required.
