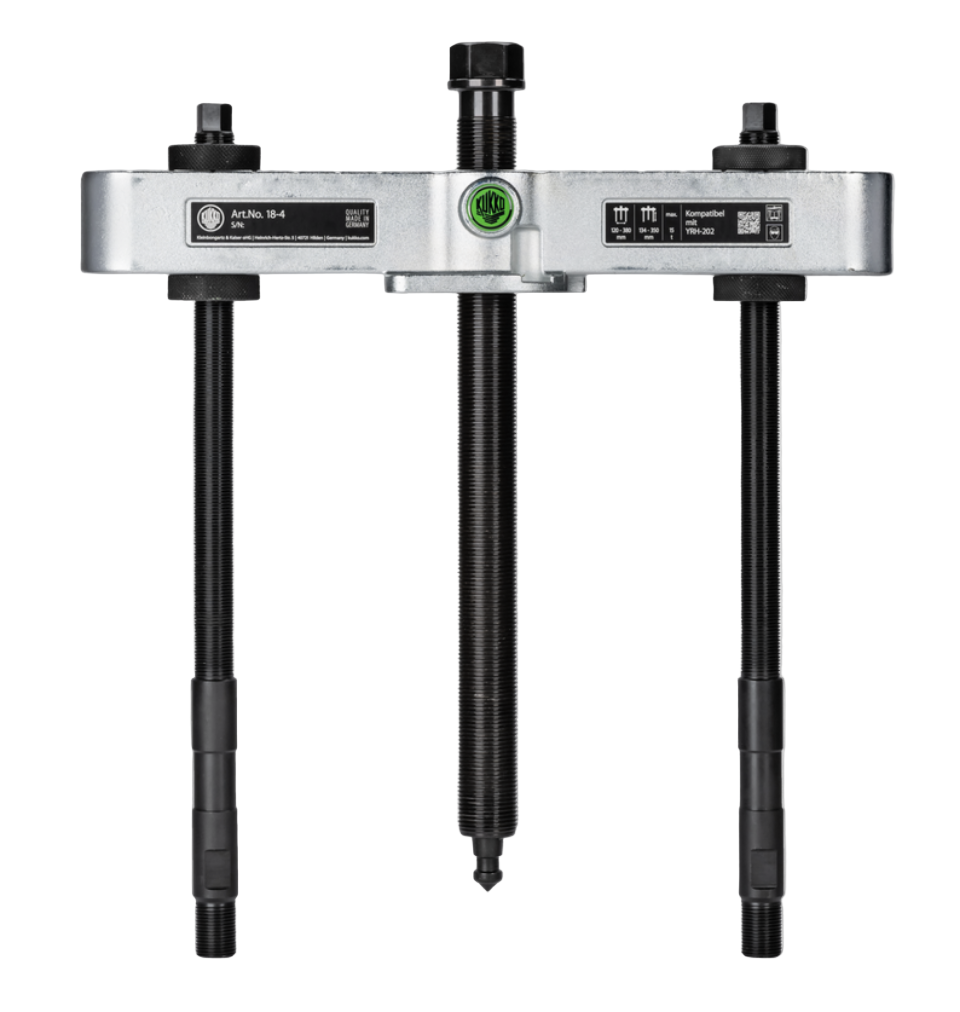

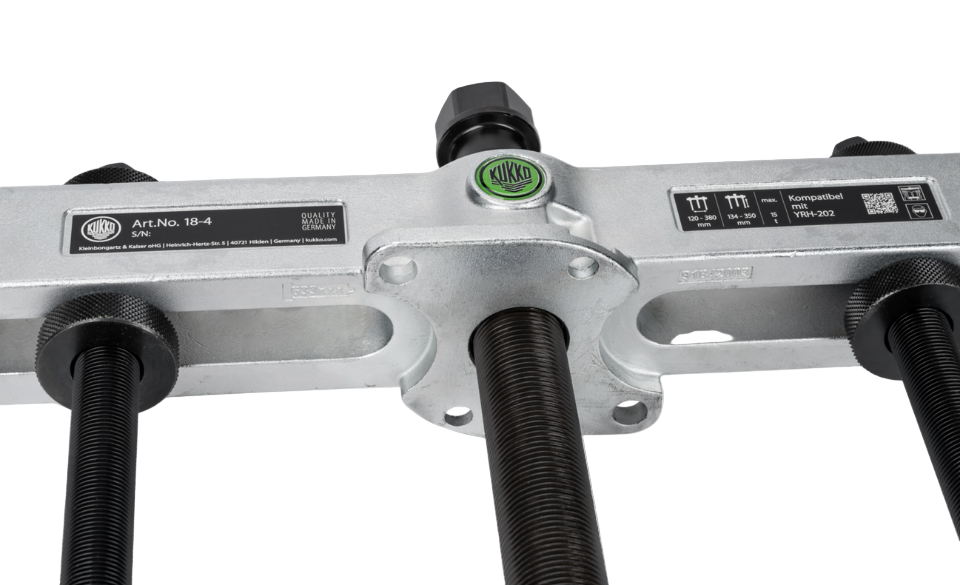

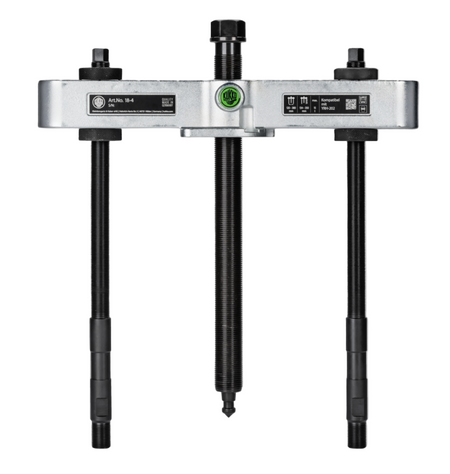

18-4 Kukko Pulling Device for use with Series 17, 15, 18-AS and 18-A

In stock
SKU: 18-4-KUKKO
Kukko pulling device for use with series 17, series 15, series 18-AS and series 18-A. Leg length 134-350mm, leg width 120-380mm
Regular price From £675.82
£563.18 exc.VAT

Product details

  • Vendor KUKKO
  • SKU 18-4-KUKKO
  • Barcode 4021176006043
Description
For use with series 15 and 17 separators.
The pulling device can be combined with the series 18-0-AS screw adapter to remove parts with threaded holes.
Mechanical pressure screw.
Milled thread treated with special coating.

Advantage
Ultimate stability when removing, as the separator and pulling device are screwed firmly together.
Almost all components available as replacement parts, time-saving order process thanks to numbering system.

How it works
The wedge-shaped separator jaws are secured underneath the component to be removed.
For removal, the tension bolts on the pulling device have to be screwed into the separator.
Use the knurled screws to position the cross-beam.
Tightening of the pressure screw and the resulting pressure removes the part from the shaft.

Goes with
15-4 Separators

Spare part of
15-D Separating-set

Part of
226-4/11 Pulling device
K-226-4/12 Pulling device for truck axles, in case
15-D Separating-set

Accessories
19-4-P 2 extensions for pulling devices (pair)
8-HP-100 Long hydraulic spindles with handle
8-1-B Long hydraulic spindle

Safety information
If several parts have to be removed, always follow a step-by-step process. Do not remove several parts at the same time.
The separator blades support surfaces must always sit fully beneath the part to be removed.
Do not use any electrical or pneumatic servo screwdrivers or hammer drills.
Protective blanket required.
Protective goggles required.
