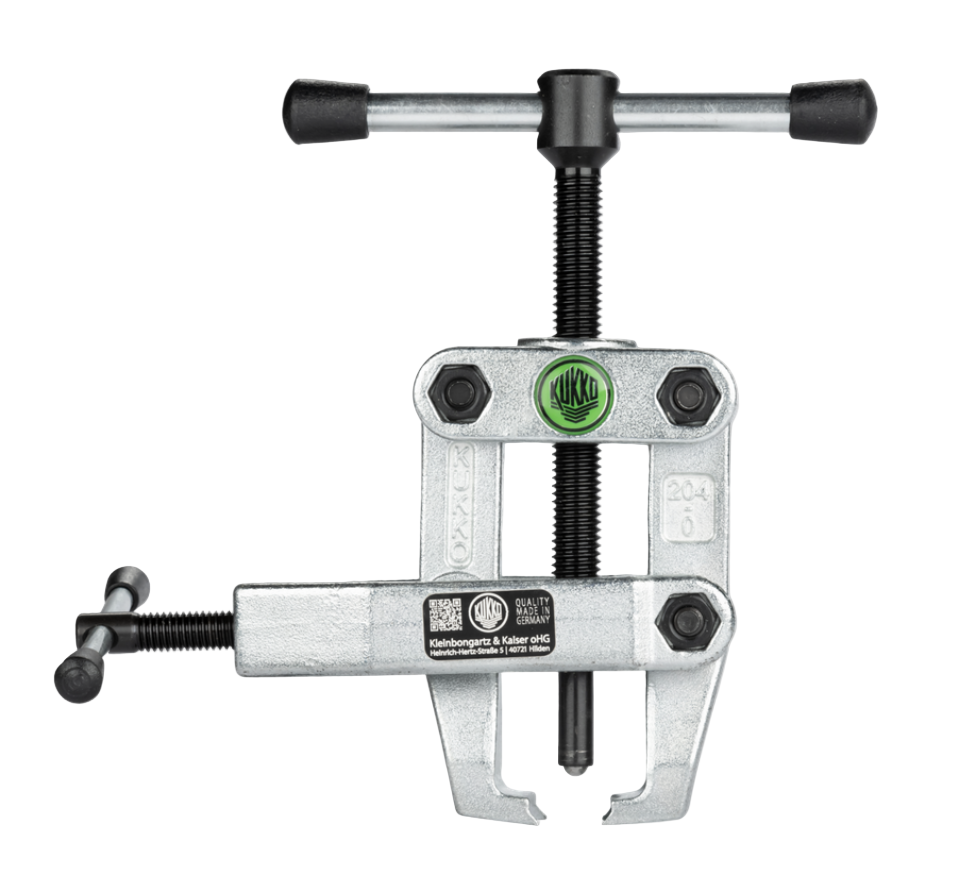

204-0 Kukko 2-Jaw Bearing Puller "Cobra" with Separating Claw and Side Clamp
For removing tight ball bearings, bearing rings and workpieces. Leg length 70mm, max pulling dia 50mm
Regular price
£117.24
inc.VAT
£97.70 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
Description
Puller hooks are specially hardened and smoothed.
With integrated clamp.
Mechanical pressure screw.
Milled thread treated with special coating.
Advantage
When the tension clamp is tightened, the pulling jaws grip below the part to be removed and loosen it before the actual removal process.
Clamps increase the pressure of the hooks significantly and prevent the puller from slipping.
Spindle head band prevents the wrench from slipping off.
Safe, fast and efficient disassembly.
No cut-off grinding, chiselling or hammering required.
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.

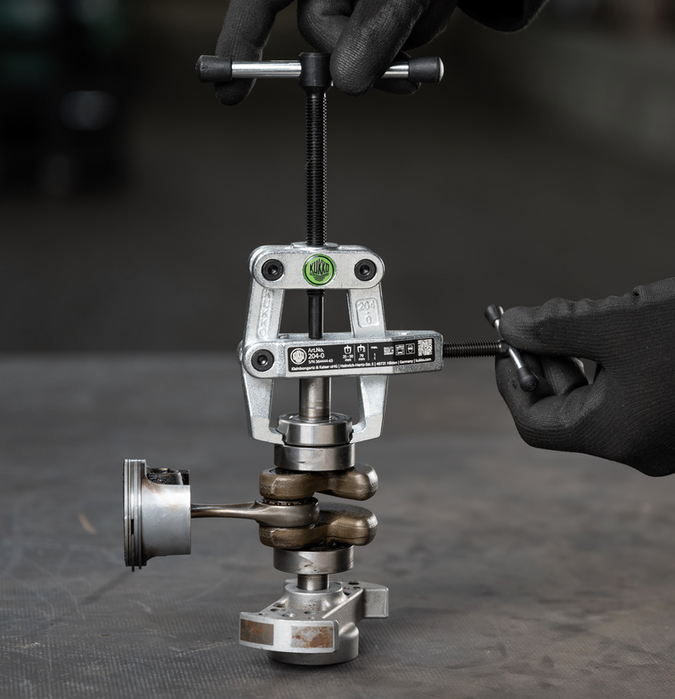

How it works
The part due to be removed is gripped from the outside.
Tighten the clamps to push the separating claws underneath the flat workpiece.
Tightening of the pressure screw and the resulting pressure removes the part from the shaft.
Note: Make sure that the clamps have been tightened during the process.
