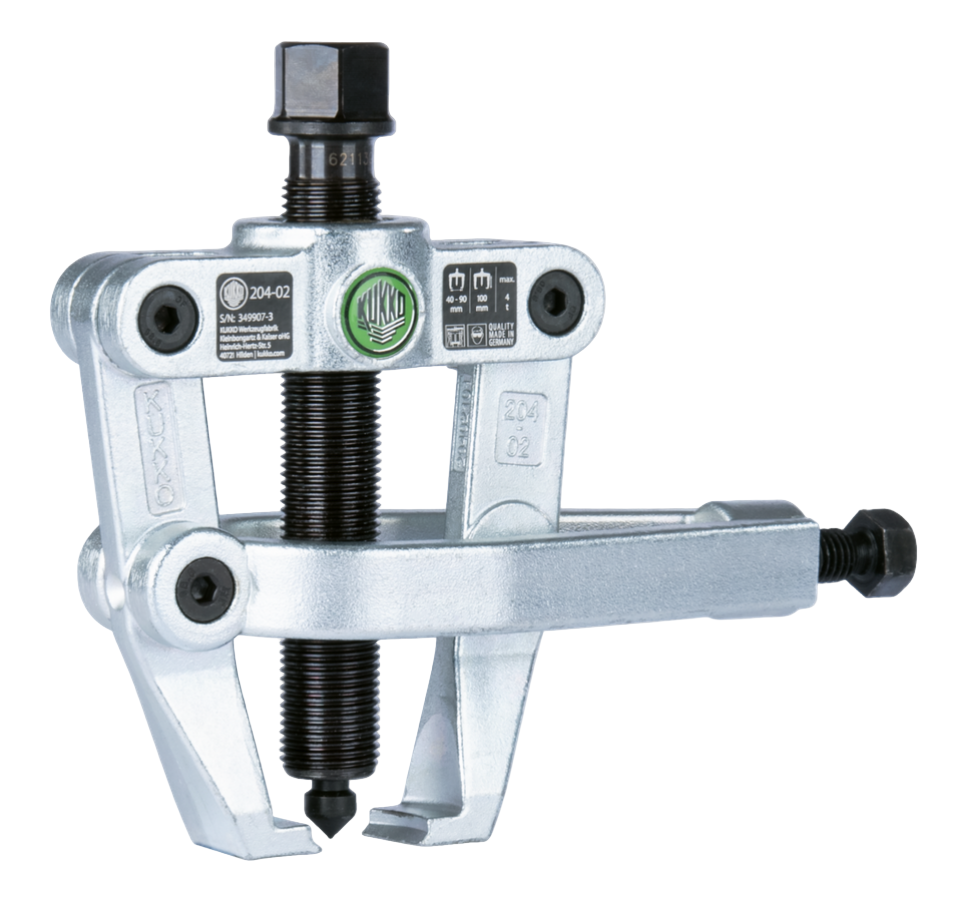

204-02 Kukko 2-Jaw Bearing Puller "Cobra" with Separating Claw and Side Clamp

In stock
SKU: 204-02-KUKKO
For removing tight ball bearings, bearing rings and workpieces. Leg length 100mm, max pulling dia 90mm
£181.09 inc.VAT
£150.91 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50

Product details

  • Vendor KUKKO
  • SKU 204-02-KUKKO
Description Delivery Returns
Description
Puller hooks are specially hardened and smoothed.
With integrated clamp.
Mechanical pressure screw.
Milled thread treated with special coating.

Advantage
When the tension clamp is tightened, the pulling jaws grip below the part to be removed and loosen it before the actual removal process.
Clamps increase the pressure of the hooks significantly and prevent the puller from slipping.
Spindle head band prevents the wrench from slipping off.
Safe, fast and efficient disassembly.
No cut-off grinding, chiselling or hammering required.
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.

How it works
The part due to be removed is gripped from the outside.
Tighten the clamps to push the separating claws underneath the flat workpiece.
Tightening of the pressure screw and the resulting pressure removes the part from the shaft.
Note: Make sure that the clamps have been tightened during the process.

Part of
29-B Universal puller set in TANOS-Systainer®
K-204-02-210-1 Universal puller set with side clamp
EVLW-1-INDUSTRIE Display

Spare part of
29-B Universal puller set in TANOS-Systainer

Safety information
Do not use any electrical or pneumatic servo screwdrivers or hammer drills.
Protective goggles required.
