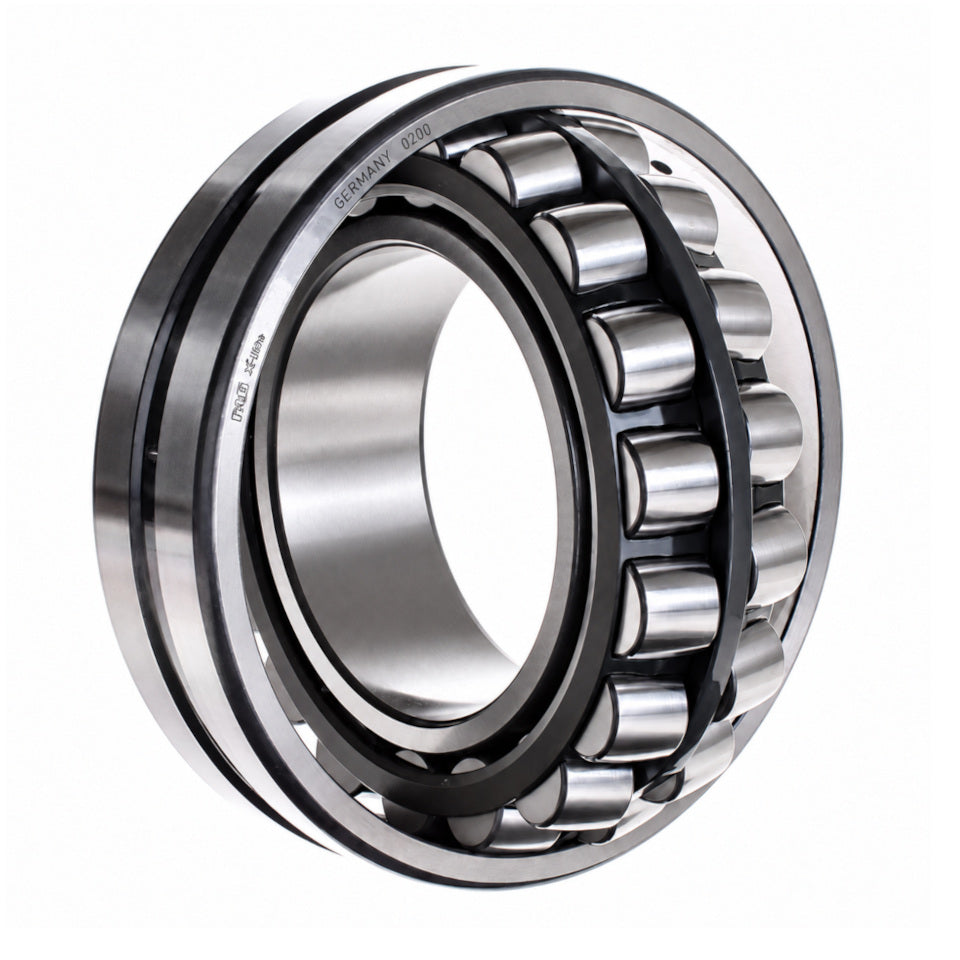

The FAG 22238-BE-XL is a double-row spherical roller bearing designed to support heavy radial loads and axial loads in both directions. Its self-aligning design compensates for shaft deflection and bearing seat misalignment, making it suitable for demanding industrial machinery.
Part of FAG’s X-life range, this bearing features optimised internal geometry for high load capacity and reliable performance. It has a cylindrical bore, normal radial internal clearance (CN) and an open construction without seals, allowing lubrication to be supplied through the bearing arrangement.

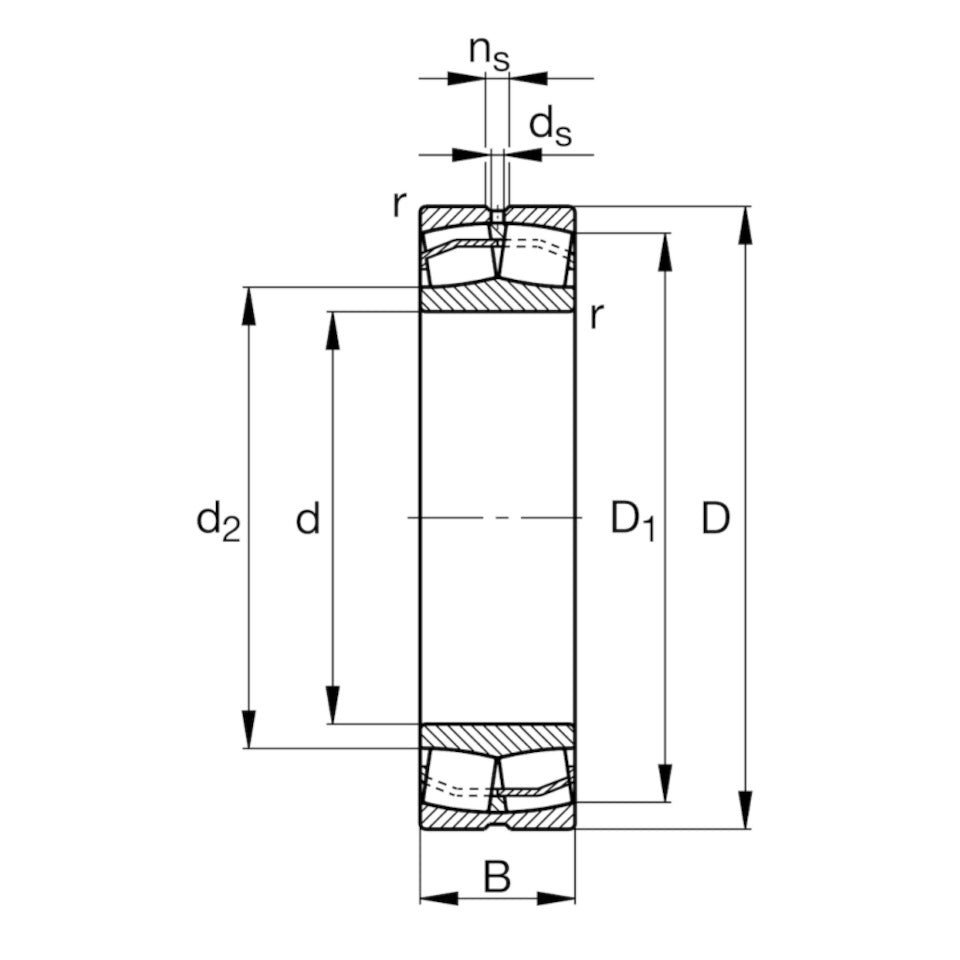

Technical specifications
Bore diameter (d): 190 mm
Outside diameter (D): 340 mm
Width (B): 92 mm
Basic dynamic load rating, radial (Cr): 1,360,000 N
Basic static load rating, radial (C0r): 1,760,000 N
Fatigue load limit, radial (Cur): 164,000 N
Limiting speed (nG): 2,480 rpm
Reference speed (nϑr): 1,620 rpm
Approximate weight (≈m): 35.465 kg
Bore type: Cylindrical
Internal clearance: Normal (CN)
Sealing: Open, without seals
Brand: FAG
Product designation: 22238-BE-XL
Available from Bearing King Ltd for industrial maintenance, machinery repairs and new equipment builds.
