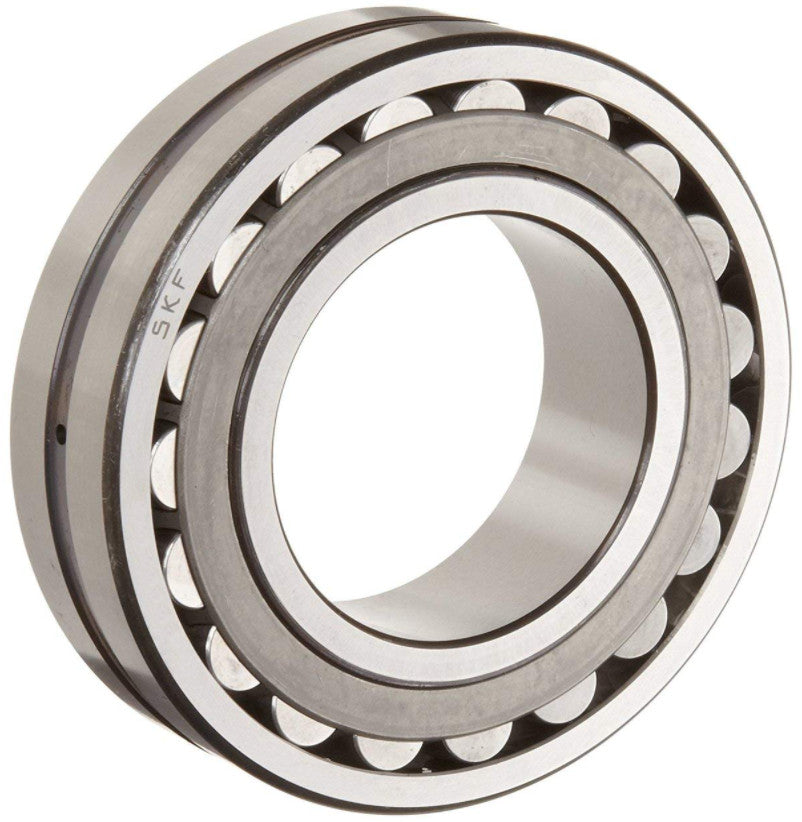

23068CC/W33 SKF Spherical Roller Bearing with Cylindrical Bore 340x520x133mm
Spherical roller bearing with cylindrical bore and annular groove with three lubrication holes in outer ring 340mm inside x 520mm outside x 133mm width
Regular price
£3,585.92
inc.VAT
£2,988.27 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
Why spherical roller bearings?
Spherical roller bearings offer an attractive combination of design features, which are making them irreplaceable in many demanding applications.
Self-aligning
Spherical roller bearings accommodate misalignment between the shaft and housing without increasing friction or reducing bearing service life.
Very high load carrying capacity
Optimized internal geometry within the available cross section provides maximum radial and axial load carrying capacity.
Robust
Insensitive to misalignment caused by shaft or housing deflections as a result of heavy loads.
Easily fitted for loads in all directions
The bearings are non-separable and ready to install, having a choice of mounting methods.
SKF bearings are developed for customer satisfaction. The best confirmation of the total quality of SKF spherical roller bearings is their success on the market. There are twice as many SKF spherical roller bearings in service as those of any other bearing manufacturer. This is not just by chance: SKF spherical roller bearings are well-proven in the field and undergo continuous development to provide improved performance. The latest examples include the introduction of SKF Explorer bearings, which opened up new application horizons.

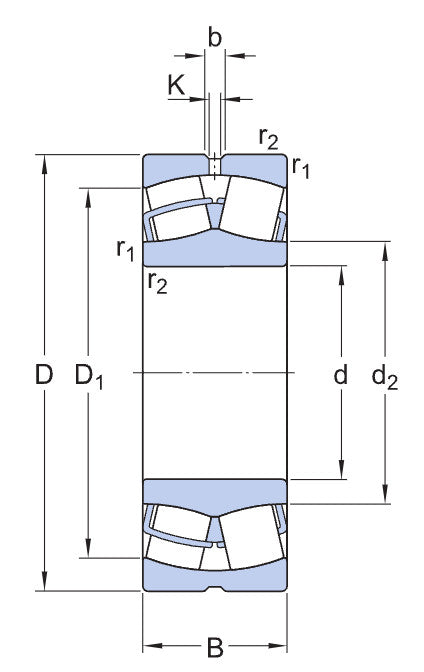

DIMENSIONS
d 340 mm Bore diameter
D 520 mm Outside diameter
B 133 mm Width
d2 ?385 mm Shoulder diameter of inner ring
D1 ?468 mm Shoulder/recess diameter of outer ring
b 22.3 mm Width of lubrication groove
K 12 mm Diameter of lubrication hole
r1,2 min.5 mm Chamfer dimension
ABUTMENT DIMENSIONS
da min.358 mm Diameter of shaft abutment
Da max.502 mm Diameter of housing abutment
ra max.4 mm Radius of fillet
CALCULATION DATA
Basic dynamic load rating C 2 812 kN
Basic static load rating C0 4 550 kN
Fatigue load limit Pu 335 kN
Reference speed 1 000 r/min
Limiting speed 1 300 r/min
Limiting value e 0.24
Axial load factor Y1 2.8
Axial load factor Y2 4.2
Axial load factor Y0 2.8
MASS
Mass 100 kg
