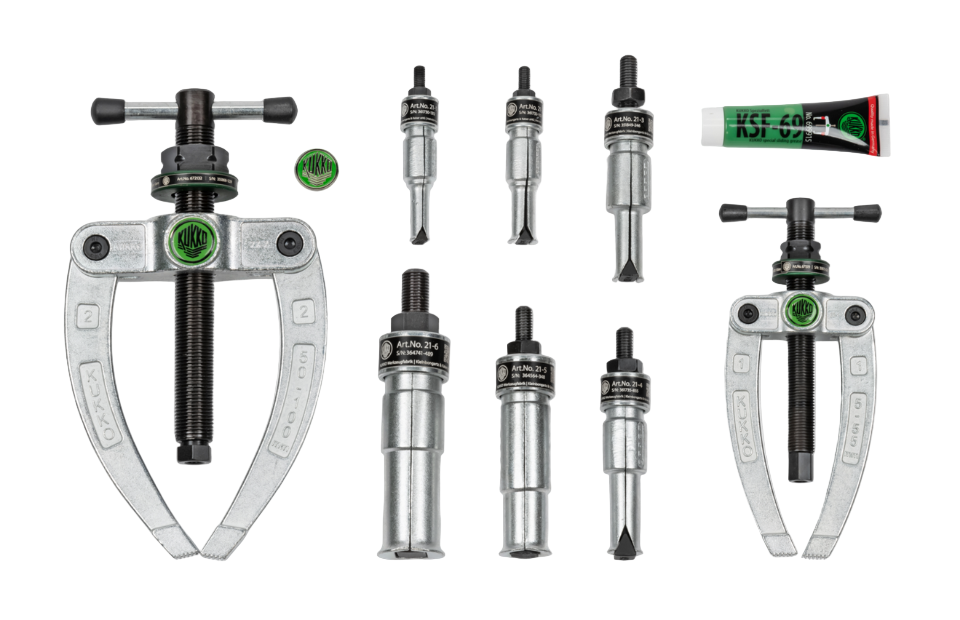

25-A Kukko Set of Bearing Extracting Tools 12-46mm
For extracting inner bearings, bearing outer rings and bushings.
Regular price
£748.70
inc.VAT
£623.92 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
Description
The 2-shell design with extra large grasp edges ensures safe extraction.
The internal extractors are equipped with an internal safety stop to protect against excess spreading and overloading.
Mechanical pressure screw.
Milled thread treated with special coating.
Instructions on the cover.

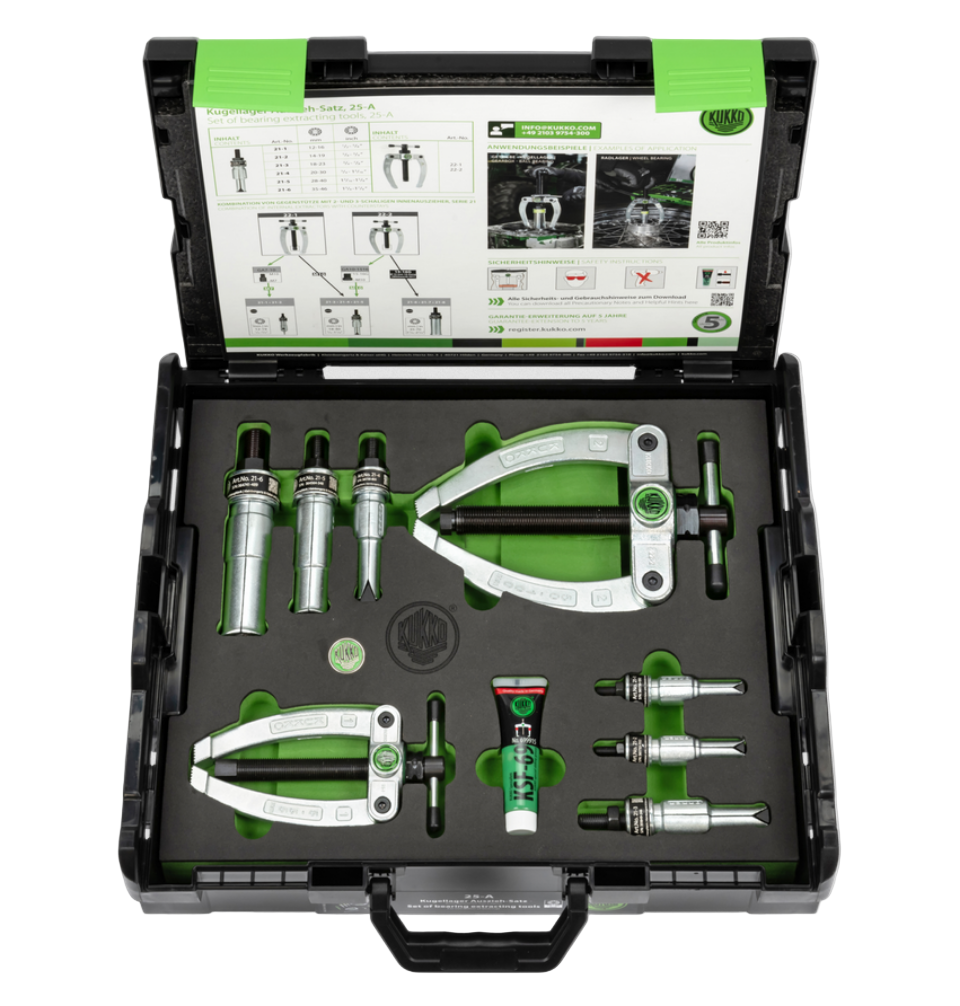

Secure storage in special foam.
Advantage
Practical package for universal use.
KUKKO internal extractors can be combined with counter supports and slide hammers.
The arms on the counter supports are easy-to-adjust thanks to an internal spring mechanism. (size 1 to 3)
Thanks to their support struts, sizes (4 and 5) counter struts are particularly suited for large ball bearings, etc., and ensure that the assembly remains stable during the extraction process.
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
Working Method
1. Place the internal extractor into the bearing's hole.
Using a ring spanner, tighten the nuts to open the jaws of the internal extractor. Make sure that the jaws sit securely below the bearing's inner race.
For removal, the spindle on the counter support series 22 or on the slide hammer series 22-0 is screwed onto the key spindle on the internal extractor.
Counter support:
2. The counter support's arms must not block the part due to be removed. Make sure that the arms are parallel.
3. Hold on to the T-grip and at the same time use the jaw wrench to tighten the nuts above the cross-beam until the component has been loosened from its position.
Safety Notice
Do not use electric or pneumatic power or impact wrenches.
Safety cover required.
Wear safety glasses.
