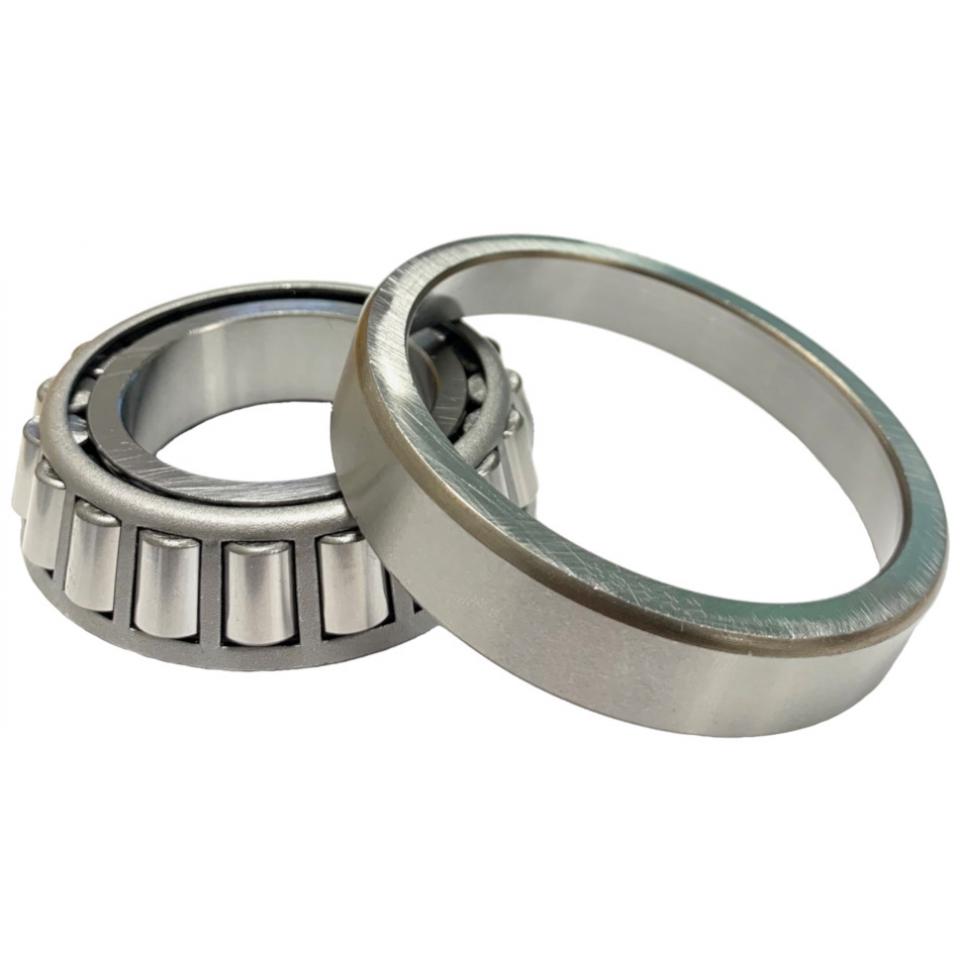

NTN Tapered roller bearings are angular contact bearings comprised of separate components (cones and cups), facilitating installation. By design they are suitable for combined loading. They can sustain very high loads (axial load in one direction) and tolerate slight misalignment.
Always fitted oppositely with a bearing of the same nature, they provide high assembly stiffness, particularly when pre-loaded. Their load capacity associated with their versatility makes them the second most commonly used items, after radial-contact ball bearings.
Dimensions
Inside diameter: 30.16mm
Outside diameter: 69.85mm
Width: 23.81mm
Load ratings
Dynamic: 69kN
Static: 81.5kN
Limiting speeds
Oil: 7 600rpm
Grease: 5 700rpm

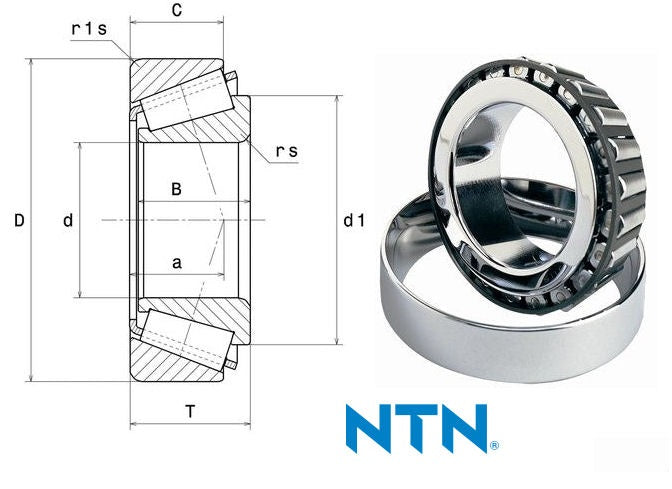

Product definition
d: 30.16mm
D: 69.85mm
B: 25.36mm
C: 19.05mm
T: 23.81mm
d1: 49mm
a: 14.71mm
e: 0.27
Y2: 2.19
Y0: 1.21
Mass: 0.47kg
