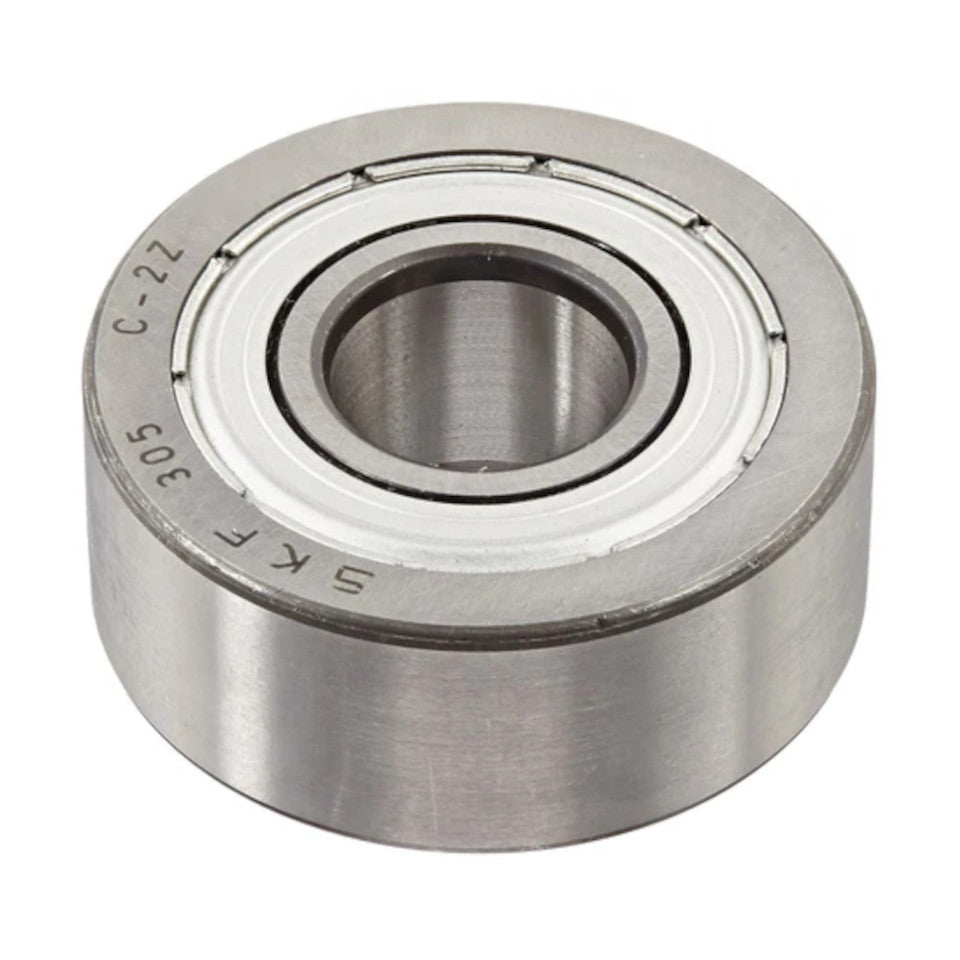

Double Row Cam Rollers are deep groove ball bearings which have a crowned runner surface, they are ready to mount as they are pre-greased. Due to their thicker outer races they can be used in applications where angular misalignment to the track are present. They are fitted with pressed steel shields which form a long sealing gap with the inner ring shoulder to keep the lubricants in and the contamination out.
Principal Dimensions
Inside diameter d: 15mm
Outside diameter D: 40mm
Width B: 15.9mm
Basic Load Ratings
Dynamic: 10,6kN
Static: 5,85kN
Speed Ratings
Limiting speed: 8,500 r/min

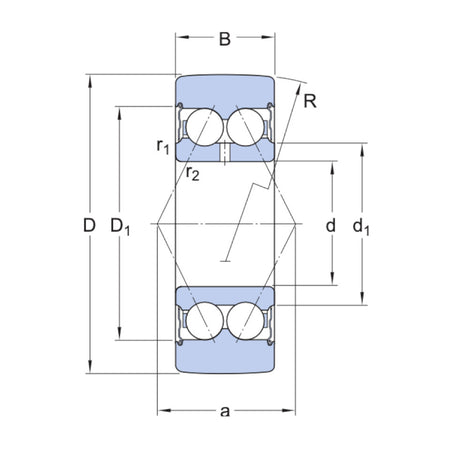

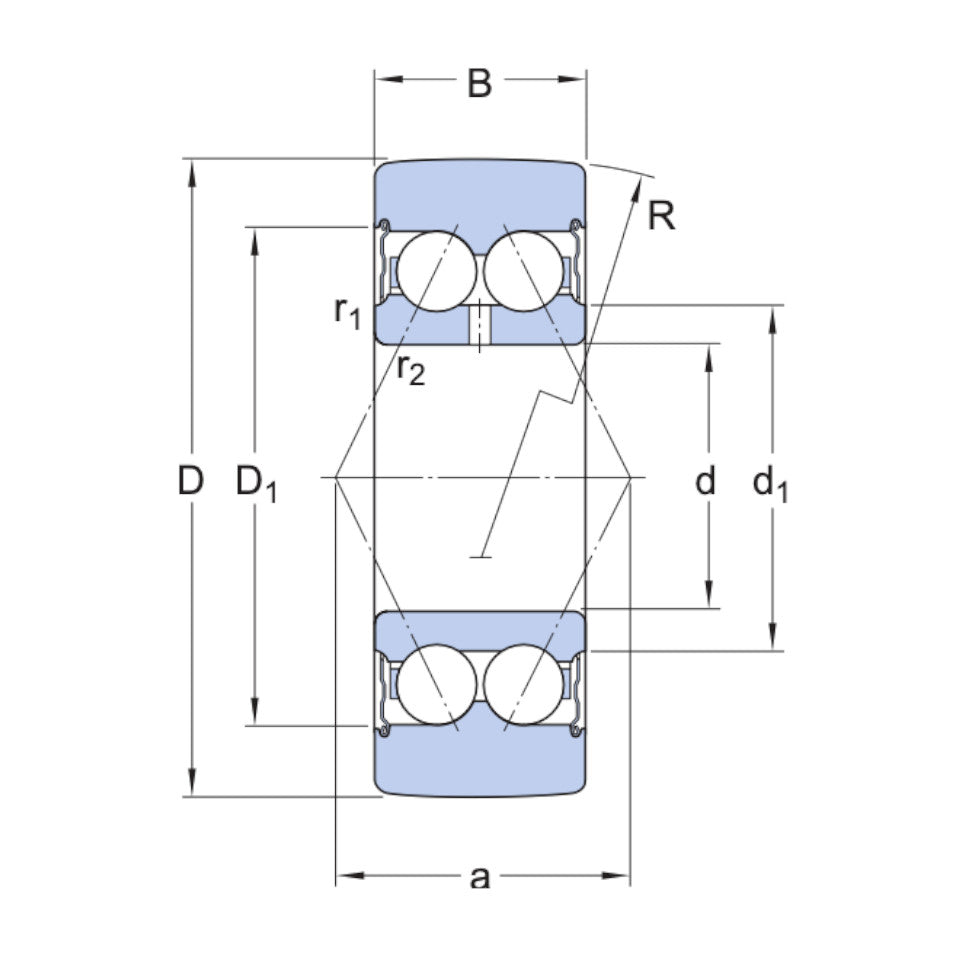

Dimensions (mm)
d1: 22,1
D1: 30,7
r1,2 min: 0,6
a: 18
