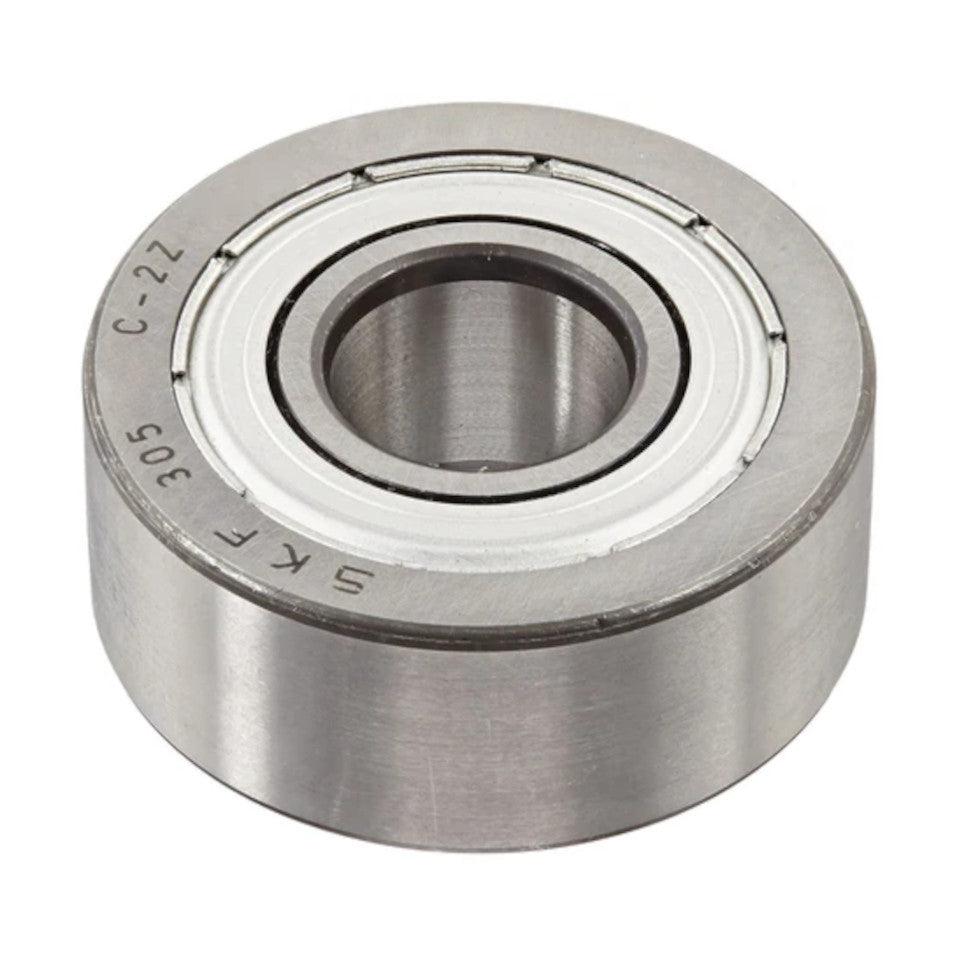

Double Row Cam Rollers are deep groove ball bearings which have a crowned runner surface, they are ready to mount as they are pre-greased. Due to their thicker outer races they can be used in applications where angular misalignment to the track are present. They are fitted with pressed steel shields which form a long sealing gap with the inner ring shoulder to keep the lubricants in and the contamination out.
Principal Dimensions
Inside diameter d: 17mm
Outside diameter D: 47mm
Width B: 17.5mm
Basic Load Ratings
Dynamic: 13,5kN
Static: 7,8kN
Speed Ratings
Limiting speed: 8,000 r/min

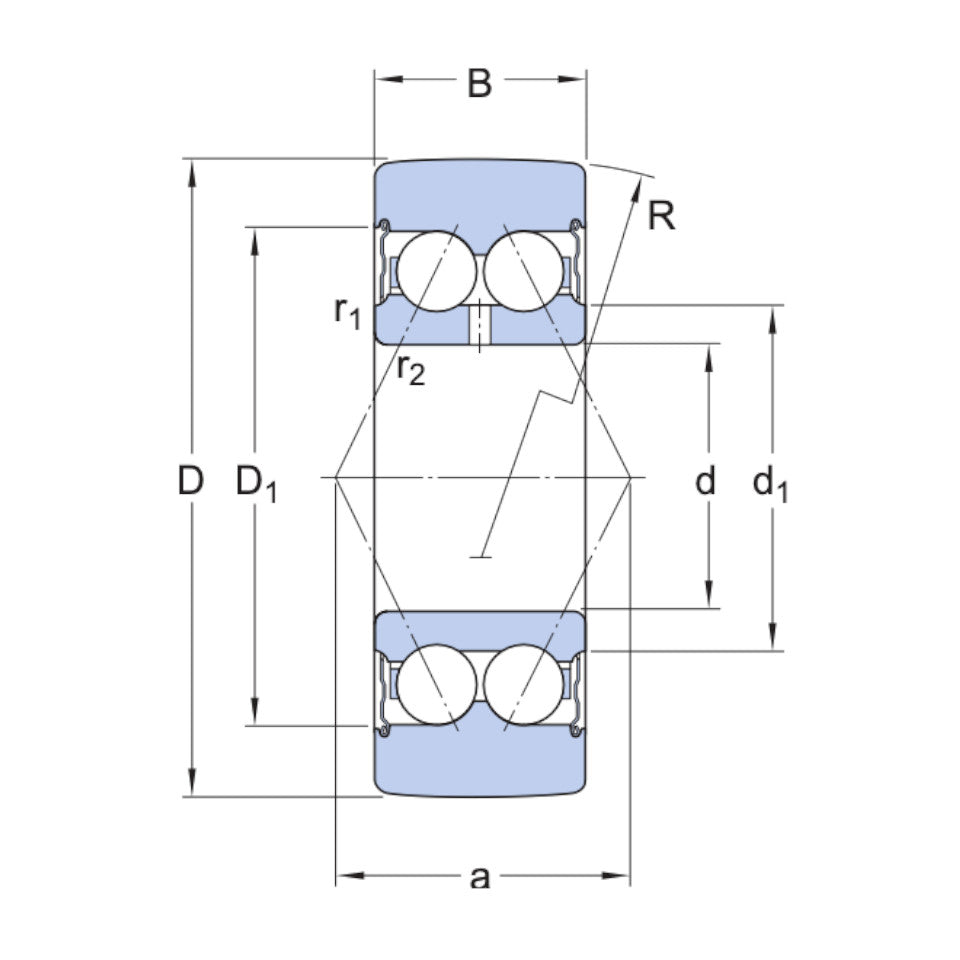

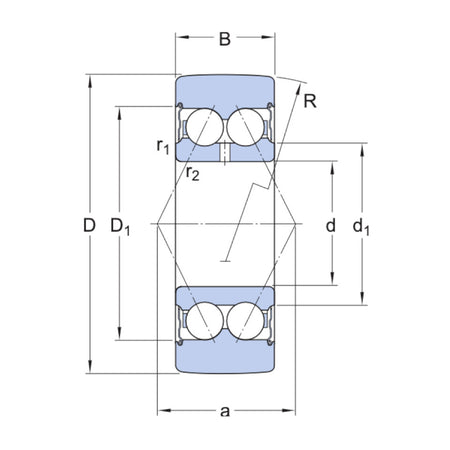

Dimensions (mm)
d1: 25,2
D1: 35
r1,2 min: 0,6
a: 20
