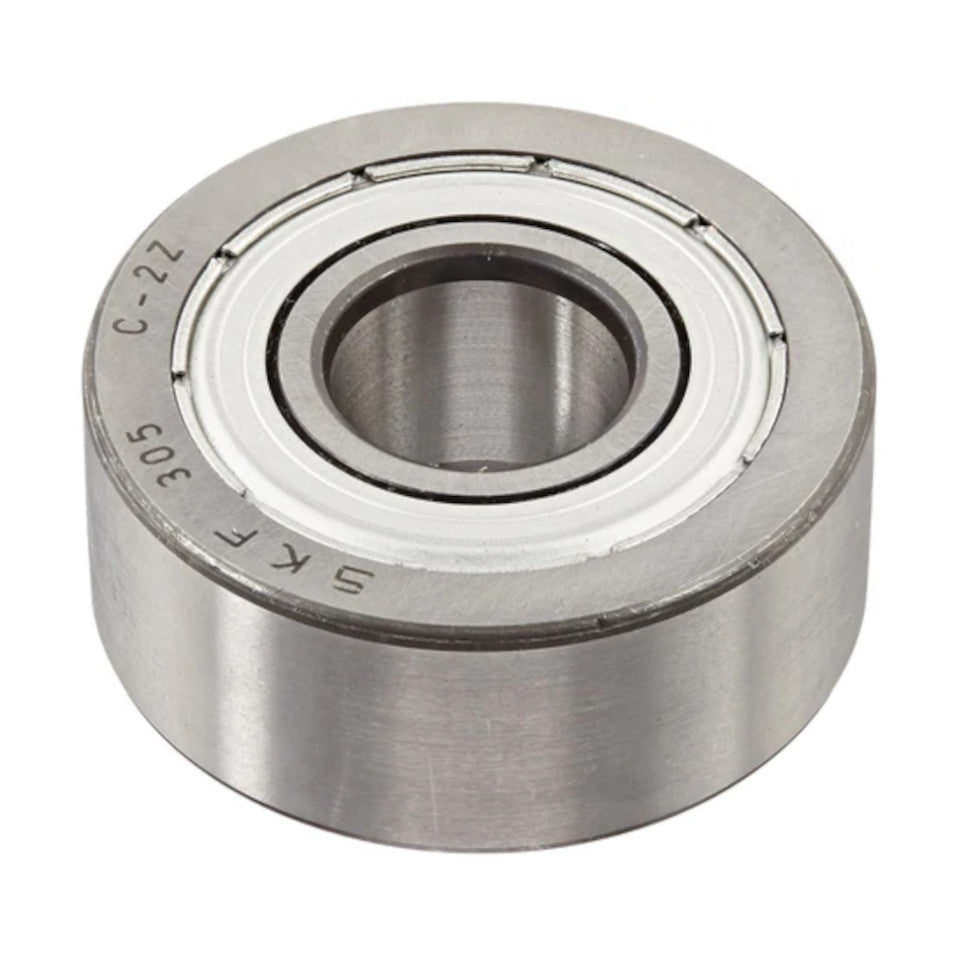

Double Row Cam Rollers are deep groove ball bearings which have a crowned runner surface, they are ready to mount as they are pre-greased. Due to their thicker outer races they can be used in applications where angular misalignment to the track are present. They are fitted with pressed steel shields which form a long sealing gap with the inner ring shoulder to keep the lubricants in and the contamination out.
Principal Dimensions
Inside diameter d: 25mm
Outside diameter D: 62mm
Width B: 20.6mm
Basic Load Ratings
Dynamic: 19,5kN
Static: 12,5kN
Speed Ratings
Limiting speed: 6,000 r/min

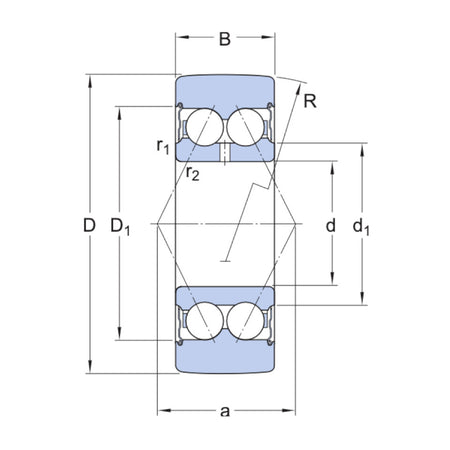

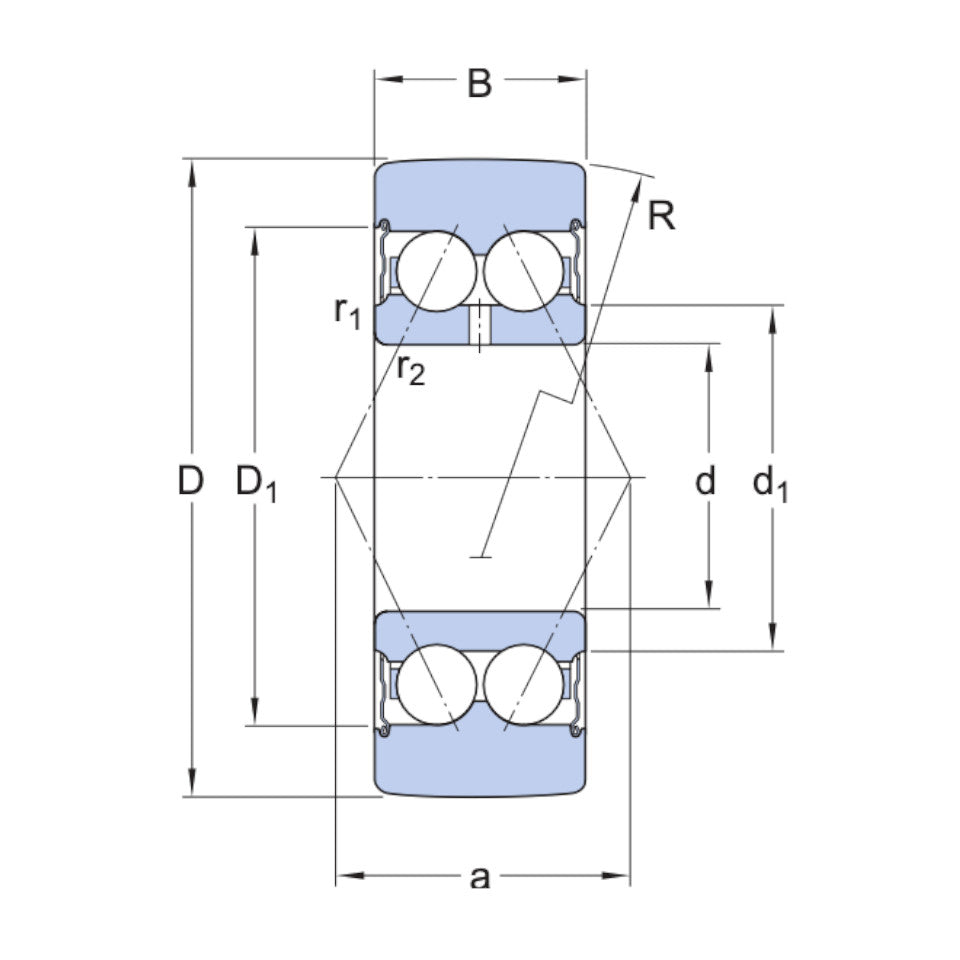

Dimensions (mm)
d1: 34,4
D1: 45,9
r1,2 min: 1
a: 26,5
