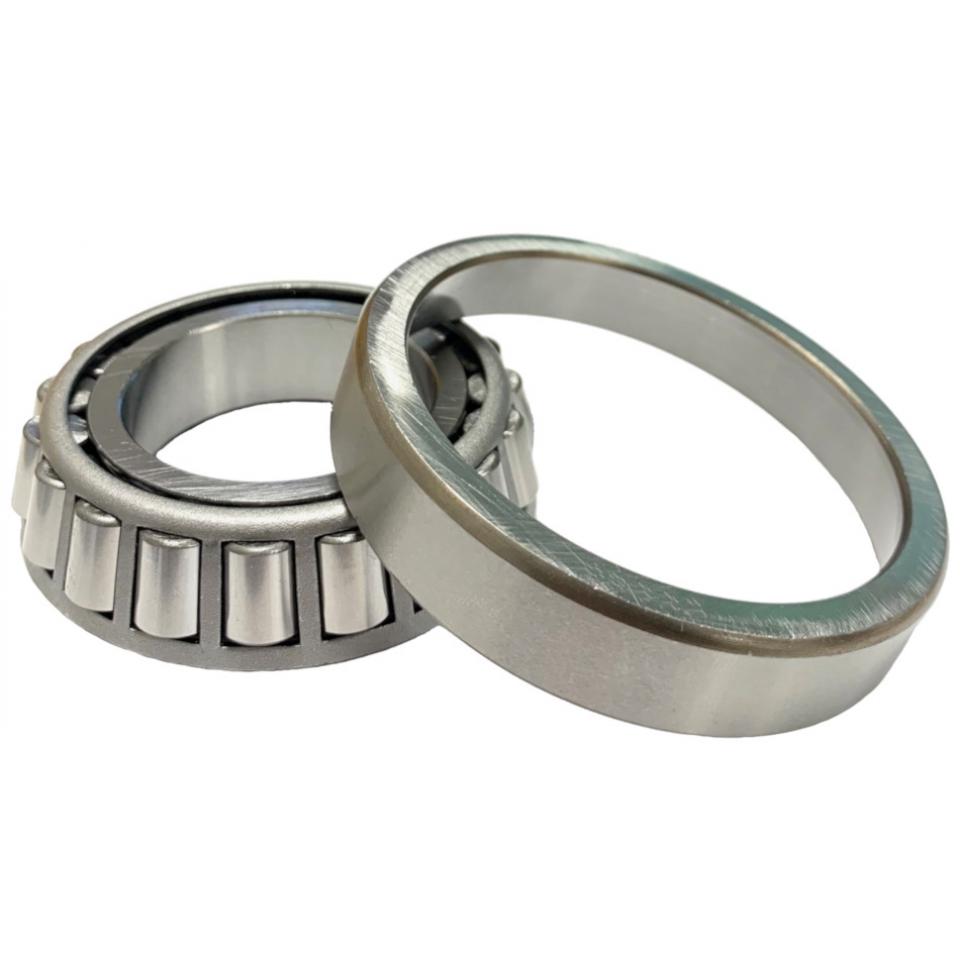

32007 NTN Tapered Roller Bearing 35x62x18mm
NTN Metric taper roller bearing priced cup & cone together 35mm inside x 62mm outside x 18mm width, also known as 4T-32007, 4T32007, 4T-32007X, 4T32007X, T4CC035
Regular price
£19.09
inc.VAT
£15.91 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
NTN Tapered roller bearings are angular contact bearings comprised of separate components (cones and cups), facilitating installation. By design they are suitable for combined loading. They can sustain very high loads (axial load in one direction) and tolerate slight misalignment.
Always fitted oppositely with a bearing of the same nature, they provide high assembly stiffness, particularly when pre-loaded. Their load capacity associated with their versatility makes them the second most commonly used items, after radial-contact ball bearings.
Dimensions
Inside diameter: 35mm
Outside diameter: 62mm
Width: 18mm
Load ratings
Dynamic: 41.5kN
Static: 52.5kN
Limiting speeds
Oil: 8 100rpm
Grease: 6 100rpm

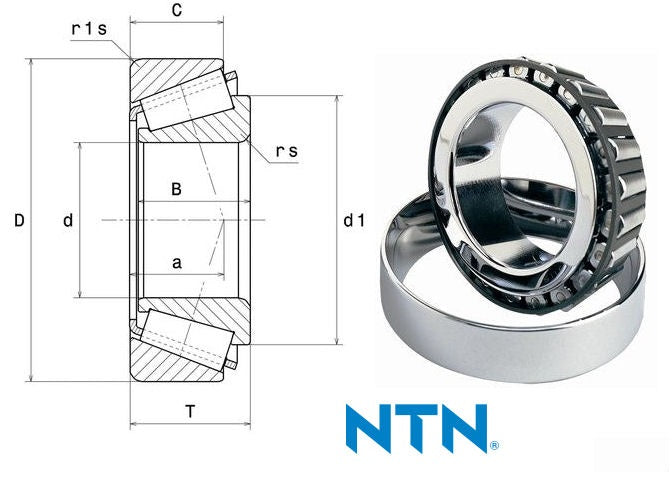

Product definition
d: 35mm
D: 62mm
B: 18mm
C: 14mm
T: 18mm
d1: 49.5mm
a: 15.5mm
rs min: 1mm
r1s min: 1mm
e: 0.45
Y2: 1.32
Y0: 0.73
Mass: 0.22kg
