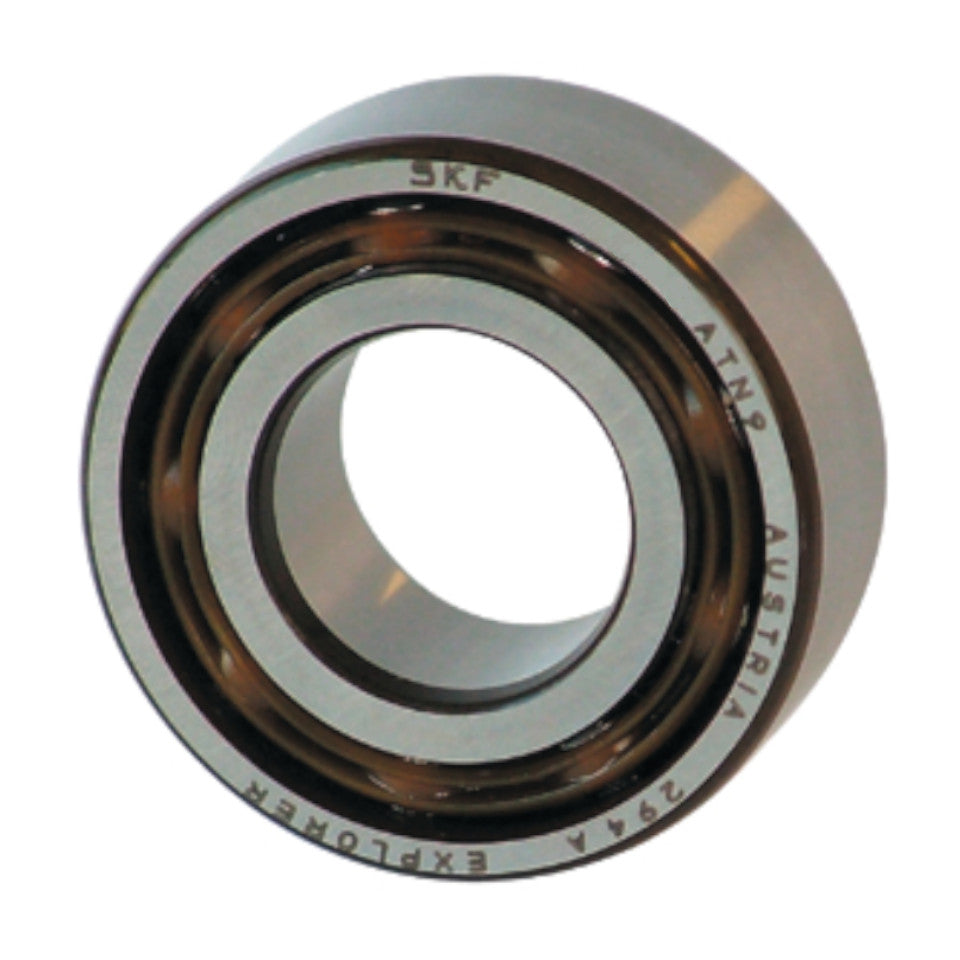

3200ATN9/C3 SKF Double Row Angular Contact Ball Bearing 10x30x14mm

In stock
SKU: 3200ATN9/C3-SKF
Double row angular contact ball bearing with polyamide cage & C3 clearance 10mm inside x 30mm outside x 14mm wide
Regular price £26.57 inc.VAT
£22.14 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50

Product details

  • Vendor SKF
  • SKU 3200ATN9/C3-SKF
  • Inside diameter (d) 10mm
  • Outside diameter (D) 30mm
  • Width (B) 14mm
Angular contact ball bearings have raceways in the inner and outer rings which are displaced with respect to each other in the direction of the bearings axis. This means that they are suitable for combined loads both radial and axial. They provide a rigid bearing arrangement and accommodate tilting moments well.

d: 10mm
D: 30mm
B: 14mm
Dynamic Load: 7.61kn
Static Load: 4.3kn
Fatigue Load Limit: 0.183kn
Reference Speed: 22 000 r/min
Limiting Speed: 24 000 r/min
Mass: 0.051kg

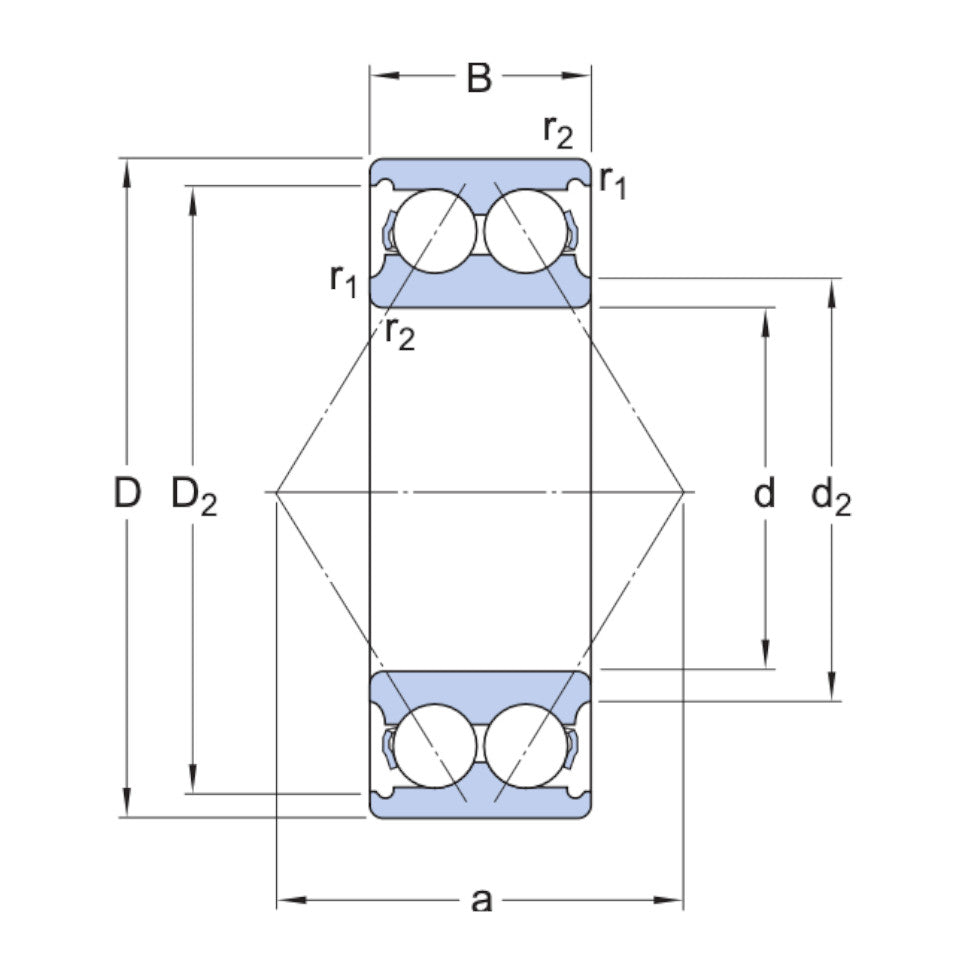

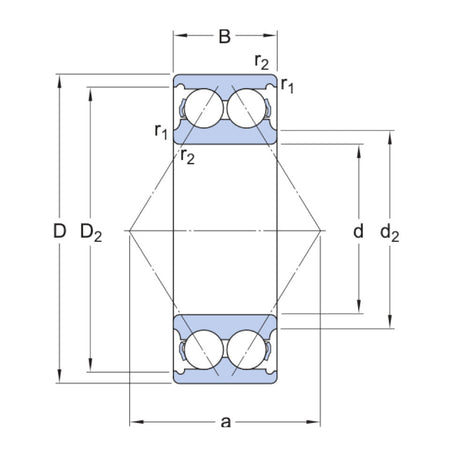

d2: 17.7mm
D2: 23.6mm
r1r2 Min: 0.6mm
a: 16mm
da Min: 14.4mm
Da Max: 25.6mm
ra Max: 0.6mm
