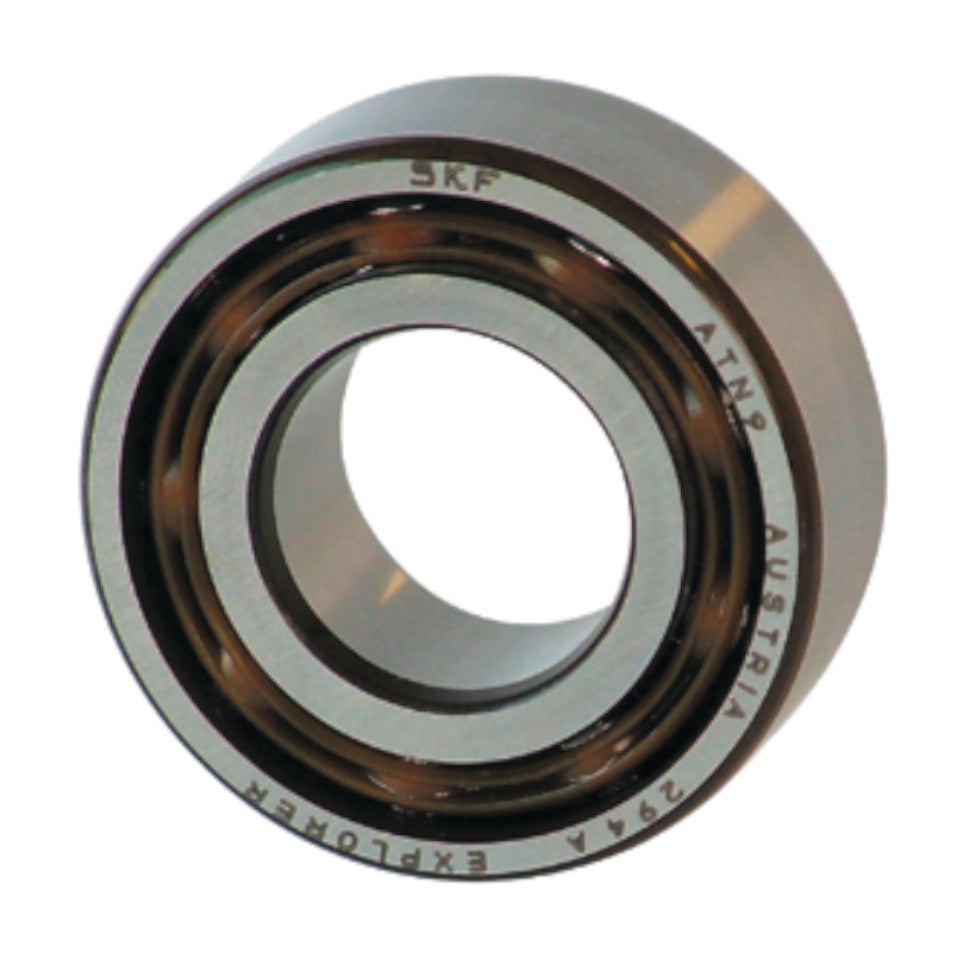

The SKF 3200ATN9 is a premium-quality double row angular contact ball bearing designed to handle both radial and axial loads in either direction. Its compact construction and robust performance make it ideal for applications requiring high stiffness and reliability within limited mounting space.
Angular contact ball bearings have raceways in the inner and outer rings which are displaced with respect to each other in the direction of the bearings axis.

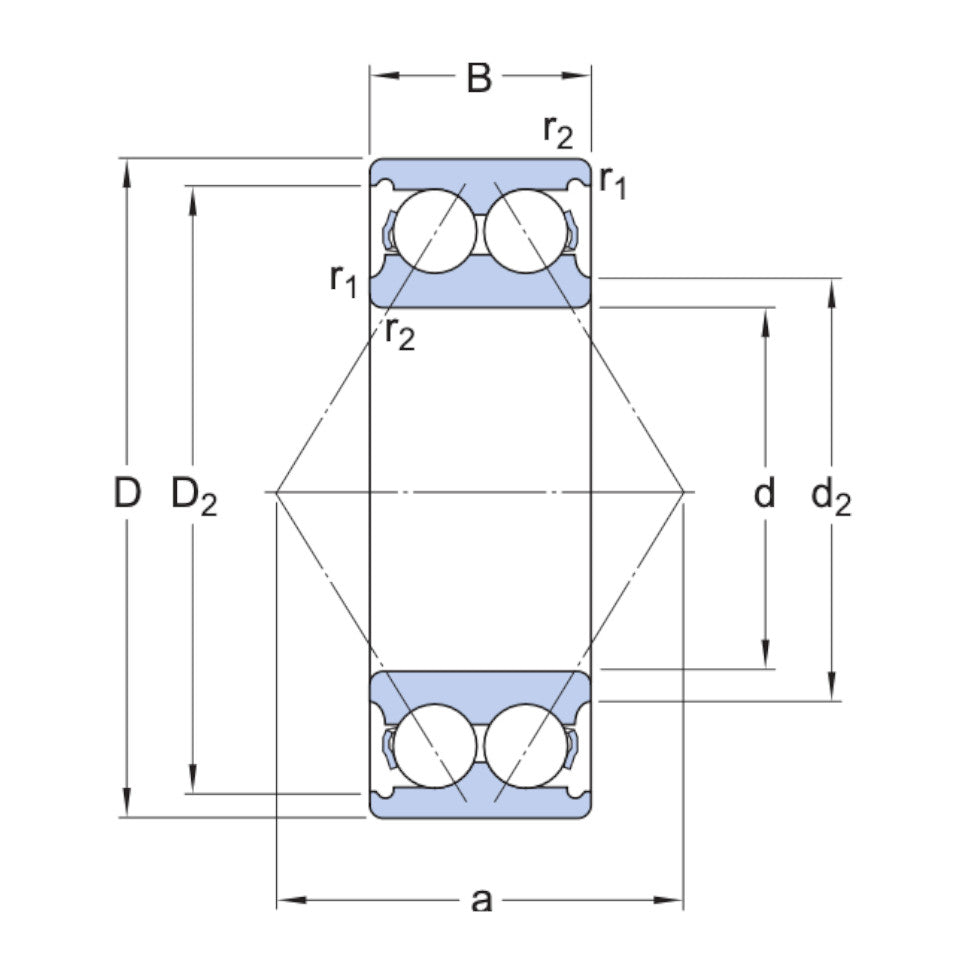

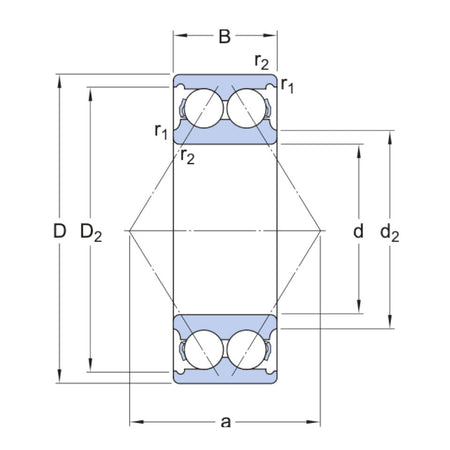

d: 10mm Bore
D: 30mm Outside Diameter
B: 14mm Width
Dynamic Load: 7.61kn
Static Load: 4.3kn
Fatigue Load Limit: 0.183kn
Reference Speed: 22 000 r/min
Limiting Speed: 24 000 r/min
Mass: 0.051kg
d2: 17.7mm
D2: 23.6mm
r1r2 Min: 0.6mm
a: 16mm
da Min: 14.4mm
Da Max: 25.6mm
ra Max: 0.6mm
