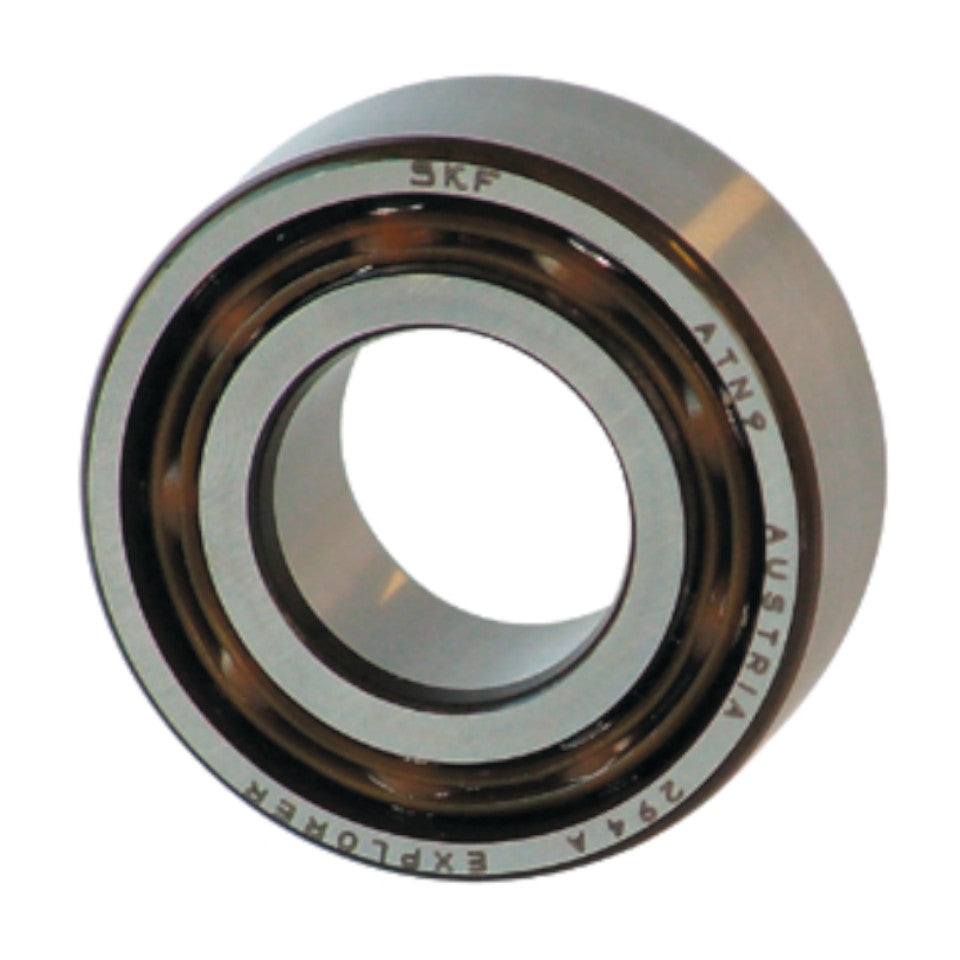

3201ATN9/C3 SKF Double Row Angular Contact Ball Bearing 12x32x15.9mm

In stock
SKU: 3201ATN9/C3-SKF
Double row angular contact ball bearing with polyamide cage & C3 clearance 12mm inside x 32mm outside x 15.9mm wide
Regular price £27.11 inc.VAT
£22.59 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50

Product details

  • Vendor SKF
  • SKU 3201ATN9/C3-SKF
  • Inside diameter (d) 12mm
  • Outside diameter (D) 32mm
  • Width (B) 15.9mm
Angular contact ball bearings have raceways in the inner and outer rings which are displaced with respect to each other in the direction of the bearings axis. This means that they are suitable for combined loads both radial and axial. They provide a rigid bearing arrangement and accommodate tilting moments well.

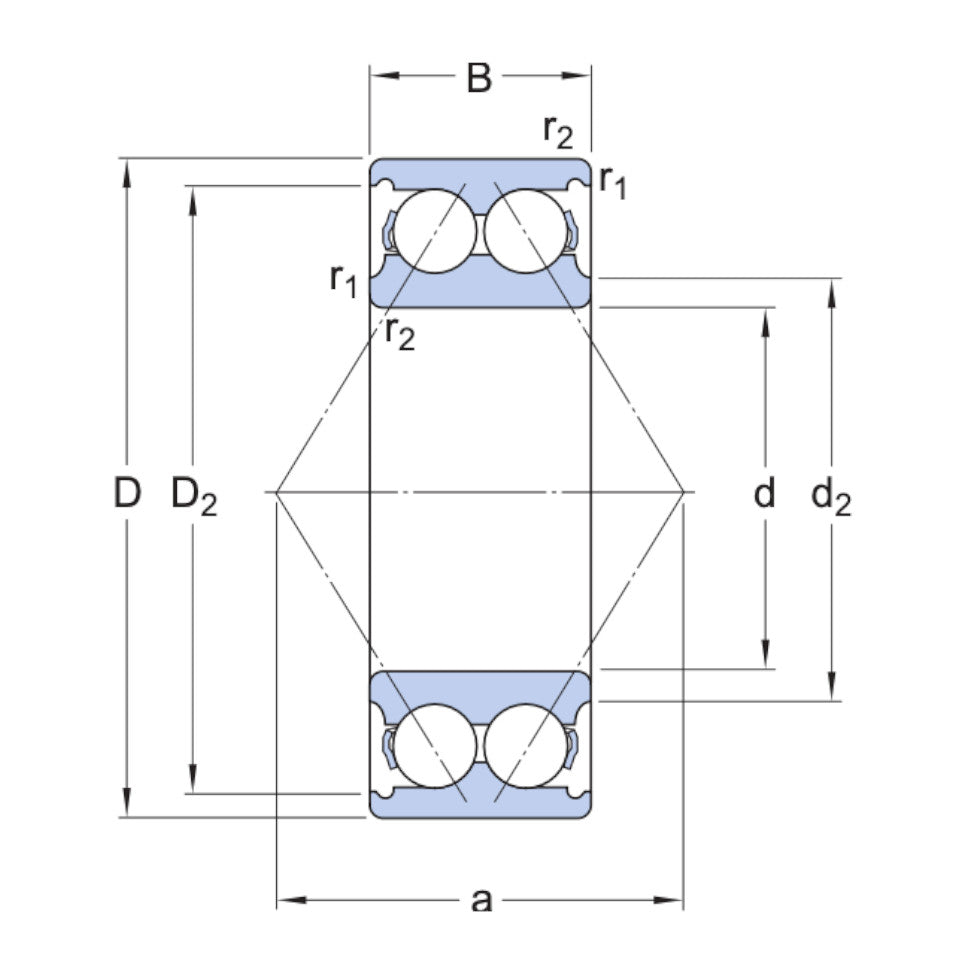

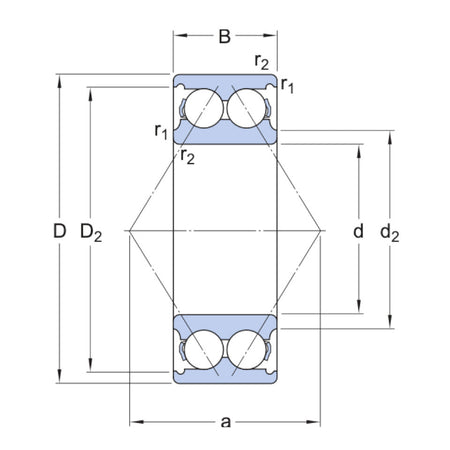

d: 12mm
D: 32mm
B: 15.9mm
Dynamic Load: 10.1kn
Static Load: 5.6kn
Fatigue Load Limit: 0.24kn
Reference Speed: 20 000 r/min
Limiting Speed: 22 000 r/min
Mass: 0.058kg
d2: 19.1mm
D2: 26.5mm
r1r2 Min: 0.6mm
a: 19mm
da Min: 16.4mm
Da Max: 27.6mm
ra Max: 0.6mm
