3203ATN9 SKF Double Row Angular Contact Ball Bearing 17x40x17.5mm

In stock
SKU: 3203ATN9-SKF
Double row angular contact ball bearing with polyamide cage 17mm inside x 40mm outside x 17.5mm wide
Regular price From £28.33
£23.61 exc.VAT

Product details

  • Vendor SKF
  • SKU 3203ATN9-SKF
  • Inside diameter (d) 17mm
  • Outside diameter (D) 40mm
  • Width (B) 17.5mm
Angular contact ball bearings have raceways in the inner and outer rings which are displaced with respect to each other in the direction of the bearings axis. This means that they are suitable for combined loads both radial and axial. They provide a rigid bearing arrangement and accommodate tilting moments well.

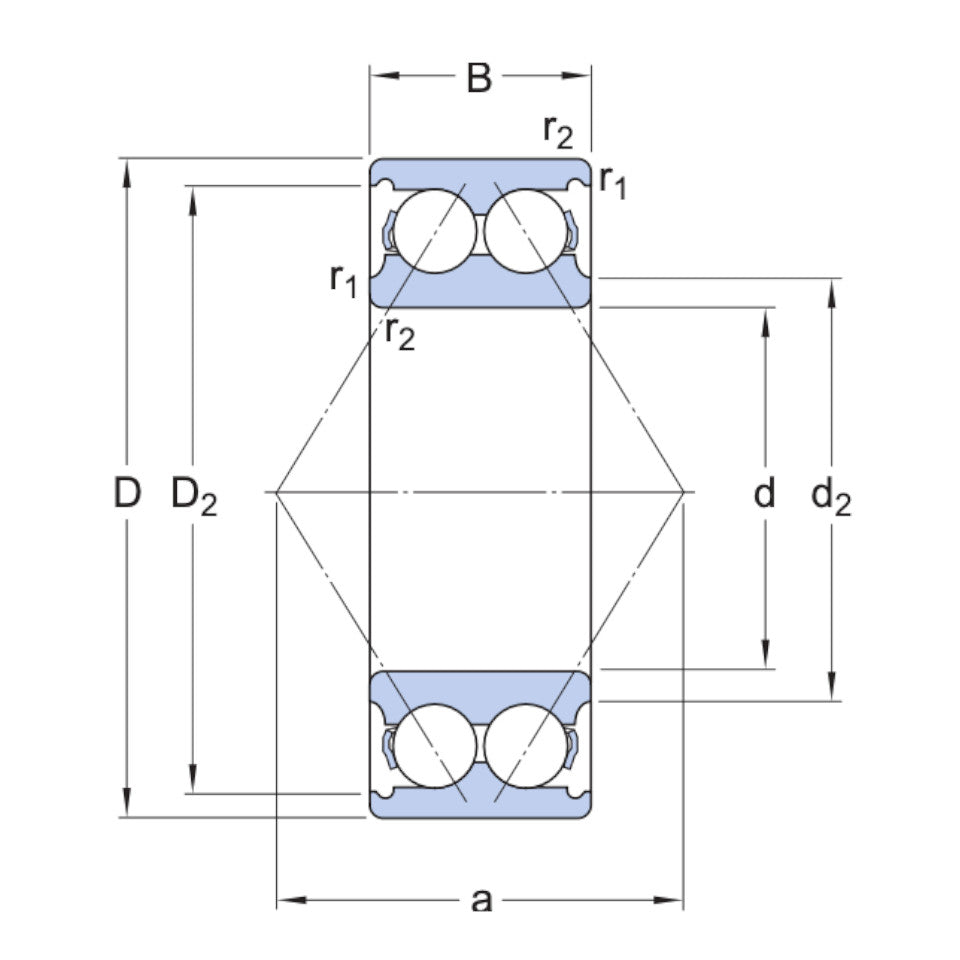

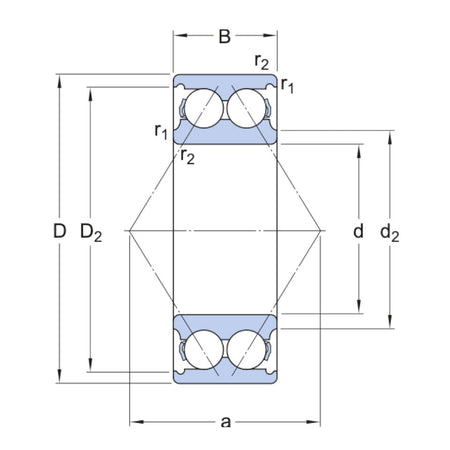

d: 17mm
D: 40mm
B: 17.5mm
Dynamic Load: 14.3kn
Static Load: 8.8kn
Fatigue Load Limit: 0.365kn
Reference Speed: 15 000 r/min
Limiting Speed: 16 000 r/min
Mass: 0.096kg
d2: 25.1mm
D2: 33.6mm
r1r2 Min: 0.6mm
a: 23mm
da Min: 21.4mm
Da Max: 35.6mm
ra Max: 0.6mm
