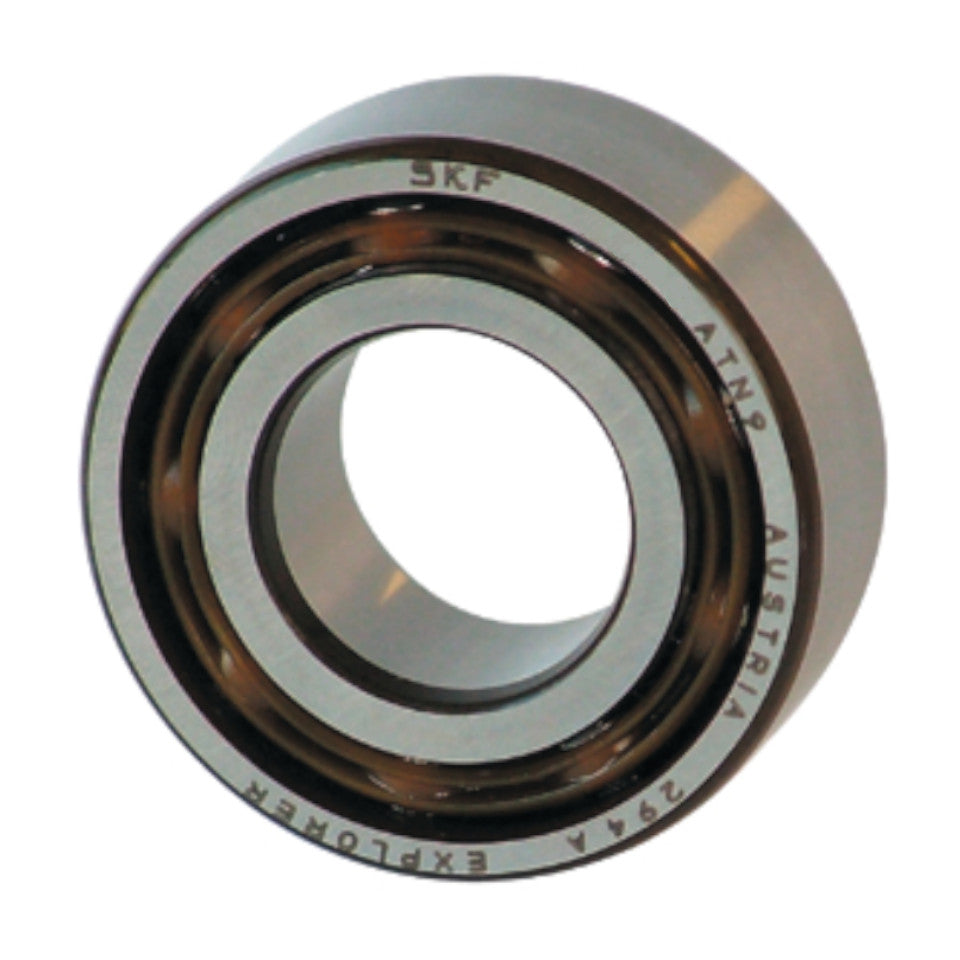

The SKF 3204ATN9/C3 is a premium-quality double row angular contact ball bearing designed to handle both radial and axial loads in either direction. Its compact construction and robust performance make it ideal for applications requiring high stiffness and reliability within limited mounting space.
Angular contact ball bearings have raceways in the inner and outer rings which are displaced with respect to each other in the direction of the bearings axis.

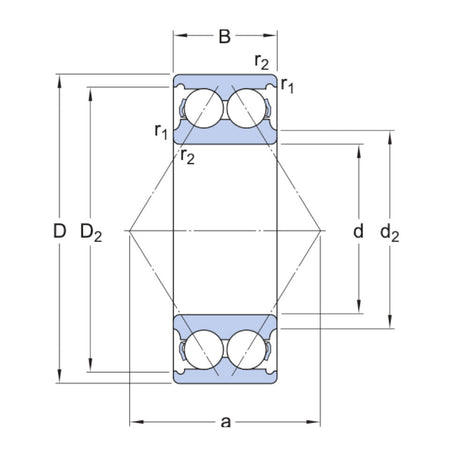

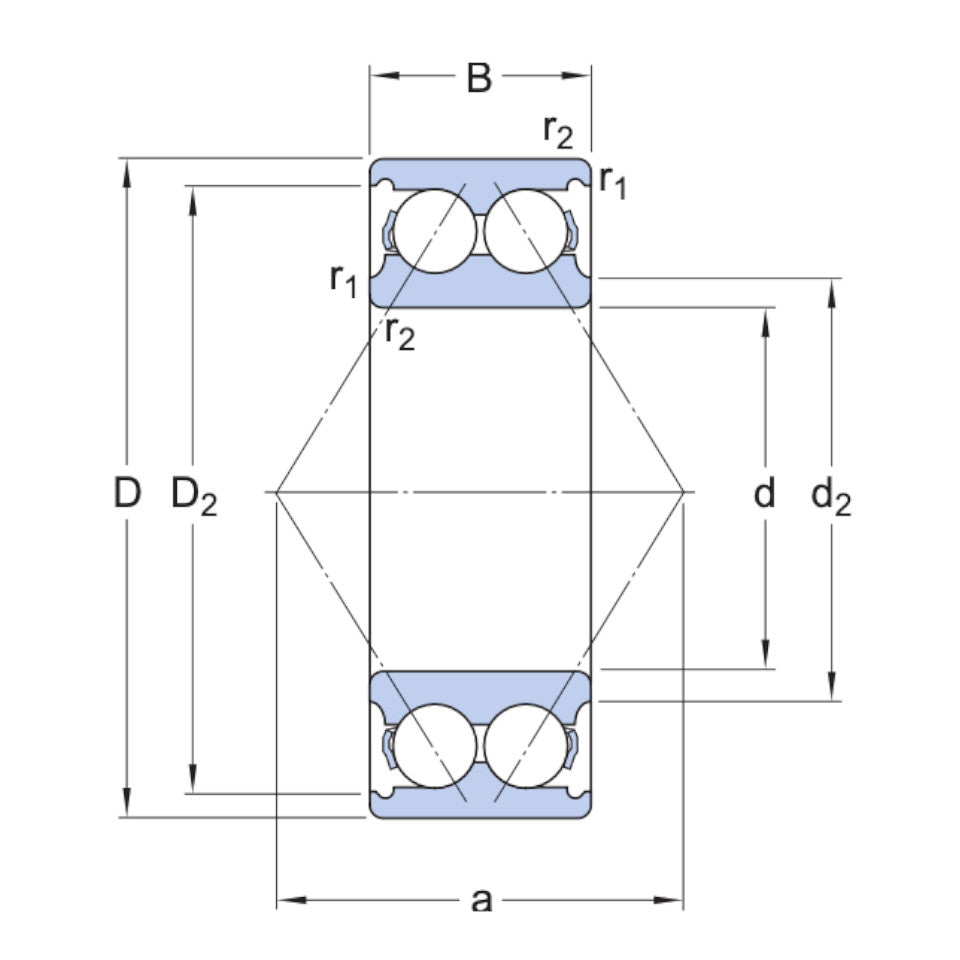

d: 20mm Bore
D: 47mm outside Diameter
B: 20.6mm Width
Dynamic Load: 20kn
Static Load: 12kn
Fatigue Load Limit: 0.51kn
Reference Speed: 14 000 r/min
Limiting Speed: 14 000 r/min
Mass: 0.16kg
d2: 27.7mm
D2: 40.9mm
r1r2 Min: 1mm
a: 28mm
da Min: 25.6mm
Da Max: 41.4mm
ra Max: 1mm
