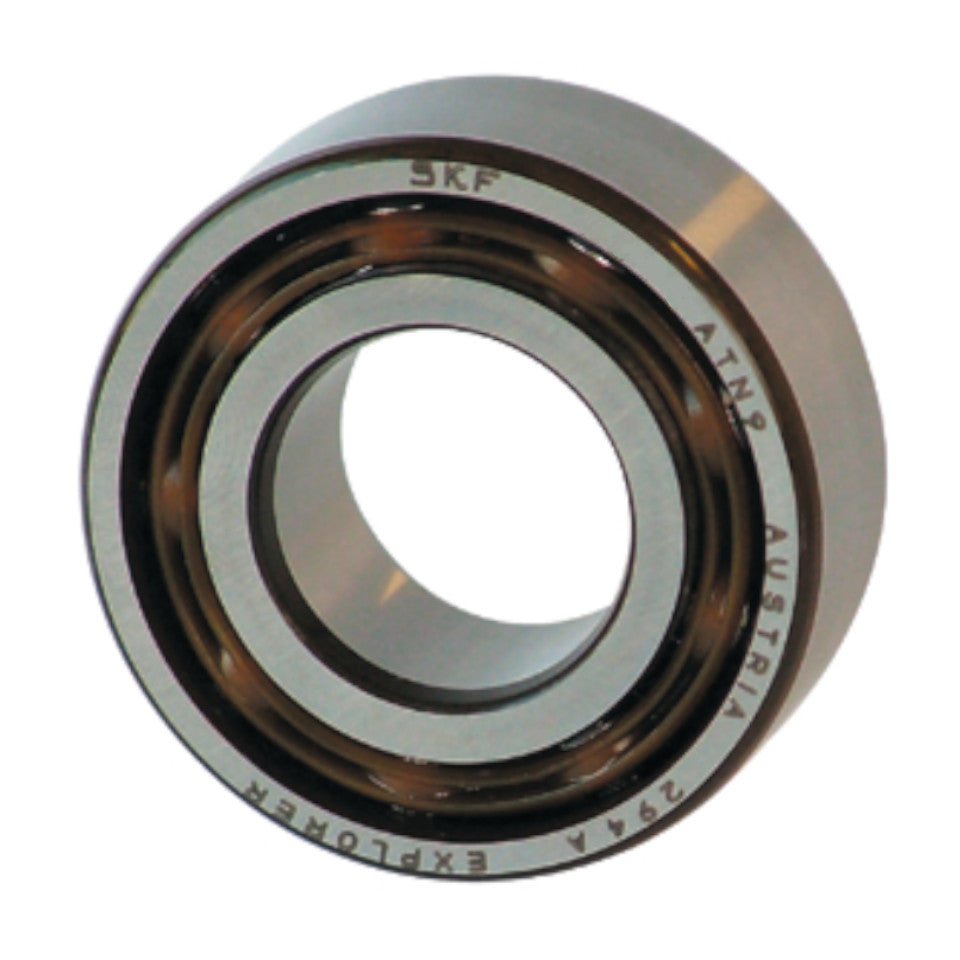

3204ATN9 SKF Double Row Angular Contact Ball Bearing 20x47x20.6mm

In stock
SKU: 3204ATN9-SKF
Double row angular contact ball bearing with polyamide cage 20mm inside x 47mm outside x 20.6mm wide
Regular price From £29.09
£24.24 exc.VAT

Product details

  • Vendor SKF
  • SKU 3204ATN9-SKF
  • Inside diameter (d) 20mm
  • Outside diameter (D) 47mm
  • Width (B) 20.6mm
Angular contact ball bearings have raceways in the inner and outer rings which are displaced with respect to each other in the direction of the bearings axis. This means that they are suitable for combined loads both radial and axial. They provide a rigid bearing arrangement and accommodate tilting moments well.

d: 20mm
D: 47mm
B: 20.6mm
Dynamic Load: 20kn
Static Load: 12kn
Fatigue Load Limit: 0.51kn
Reference Speed: 14 000 r/min
Limiting Speed: 14 000 r/min
Mass: 0.16kg
d2: 27.7mm
D2: 40.9mm
r1r2 Min: 1mm
a: 28mm
da Min: 25.6mm
Da Max: 41.4mm
ra Max: 1mm
