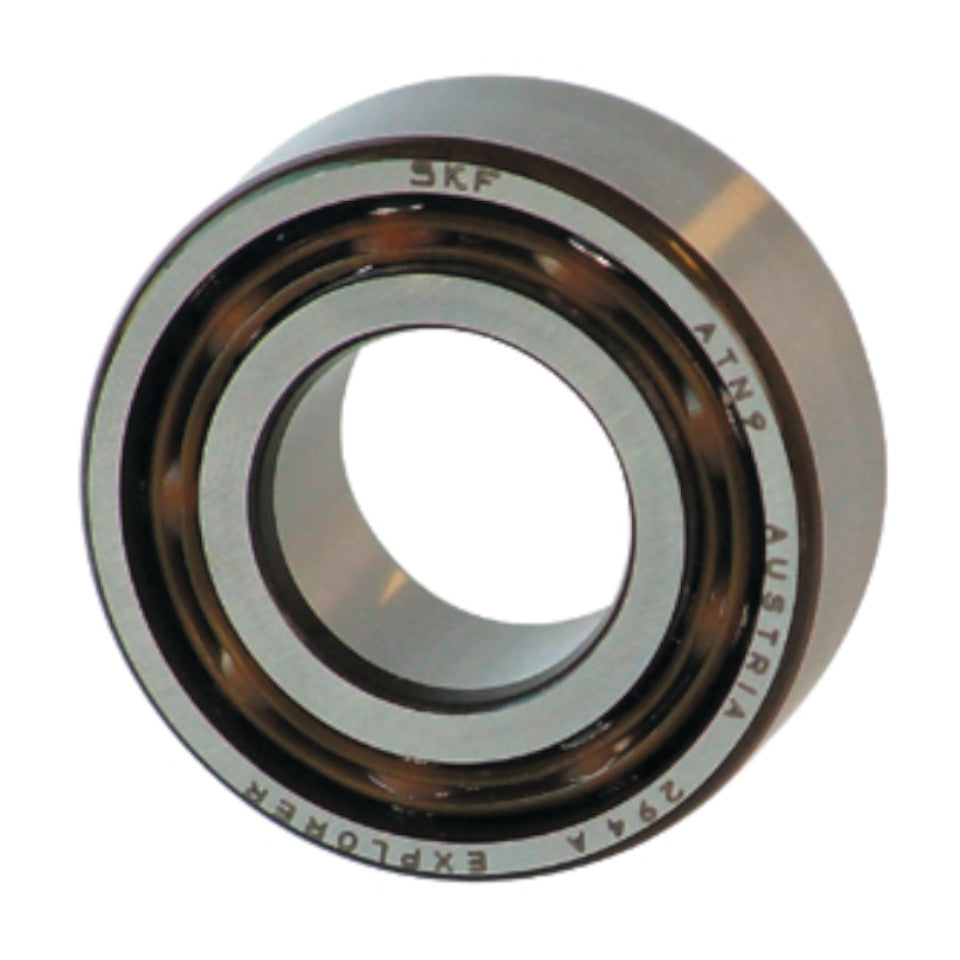

The SKF 3206ATN9 is a premium-quality double row angular contact ball bearing designed to handle both radial and axial loads in either direction. Its compact construction and robust performance make it ideal for applications requiring high stiffness and reliability within limited mounting space.
Angular contact ball bearings have raceways in the inner and outer rings which are displaced with respect to each other in the direction of the bearings axis.

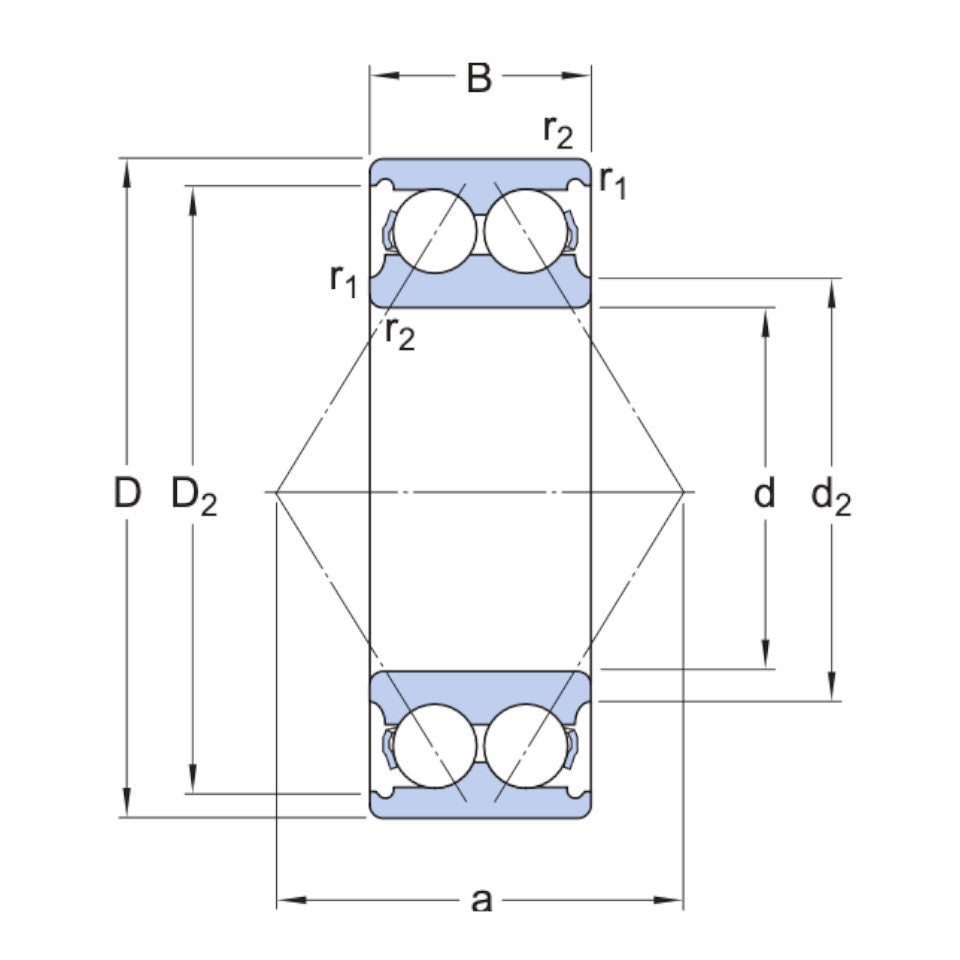

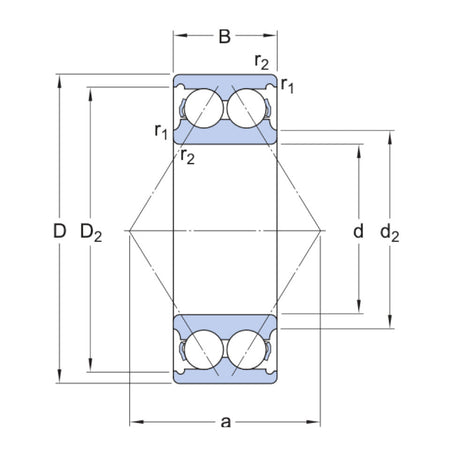

d: 30mm Bore
D: 62mm Outside Diameter
B: 23.8mm Width
Dynamic Load: 30kn
Static Load: 20.4kn
Fatigue Load Limit: 0.865kn
Reference Speed: 10 000 r/min
Limiting Speed: 10 000 r/min
Mass: 0.29kg
d2: 38.7mm
D2: 55.2mm
r1r2 Min: 1mm
a: 36mm
da Min: 35.6mm
Da Max: 56.4mm
ra Max: 1mm
Why Choose SKF Bearings from Bearing King?
At Bearing King, we supply only genuine SKF bearings sourced directly from authorised distributors. All products are backed by fast UK shipping, competitive prices, and expert customer support.
