3208-TV-ZZ Dunlop Double Row Angular Contact Shielded Bearing 40x80x30.2mm
Dunlop double row angular contact shielded bearing 40mm inside x 80mm outside x 30.2mm width
Regular price
From
£24.02
£20.02 exc.VAT
Couldn't load pickup availability
A double row angular contact bearing is a type of ball bearing that is designed to support axial and radial loads simultaneously. It consists of two rows of balls with an inner and outer raceway, allowing for a greater load capacity compared to a single row angular contact bearing.
The inner and outer raceways of the bearing are shaped at an angle relative to each other, which allows the bearing to support both axial and radial loads. The angle between the two raceways is typically 30 degrees, but can vary depending on the specific design of the bearing.
Double row angular contact bearings are commonly used in applications such as machine tool spindles, automotive wheels, and industrial equipment, where high axial and radial loads are present. They are also known for their high speed capabilities and low friction, making them suitable for applications where precision and efficiency are critical.
Overall, double row angular contact bearings offer a robust and reliable solution for a wide range of industrial and automotive applications.

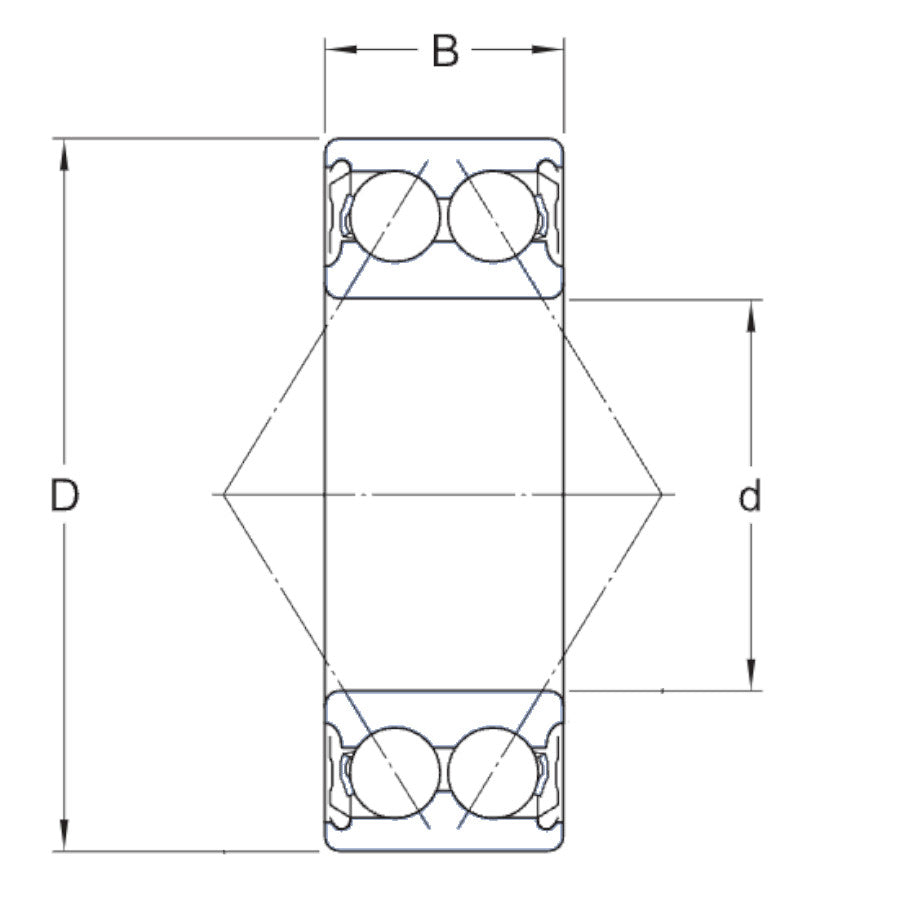

Principal Dimensions
Inside diameter d: 40mm
Outside diameter D: 80mm
Width B: 30.2mm
The inner and outer raceways of the bearing are shaped at an angle relative to each other, which allows the bearing to support both axial and radial loads. The angle between the two raceways is typically 30 degrees, but can vary depending on the specific design of the bearing.
Double row angular contact bearings are commonly used in applications such as machine tool spindles, automotive wheels, and industrial equipment, where high axial and radial loads are present. They are also known for their high speed capabilities and low friction, making them suitable for applications where precision and efficiency are critical.
Overall, double row angular contact bearings offer a robust and reliable solution for a wide range of industrial and automotive applications.
Principal Dimensions
Inside diameter d: 40mm
Outside diameter D: 80mm
Width B: 30.2mm
