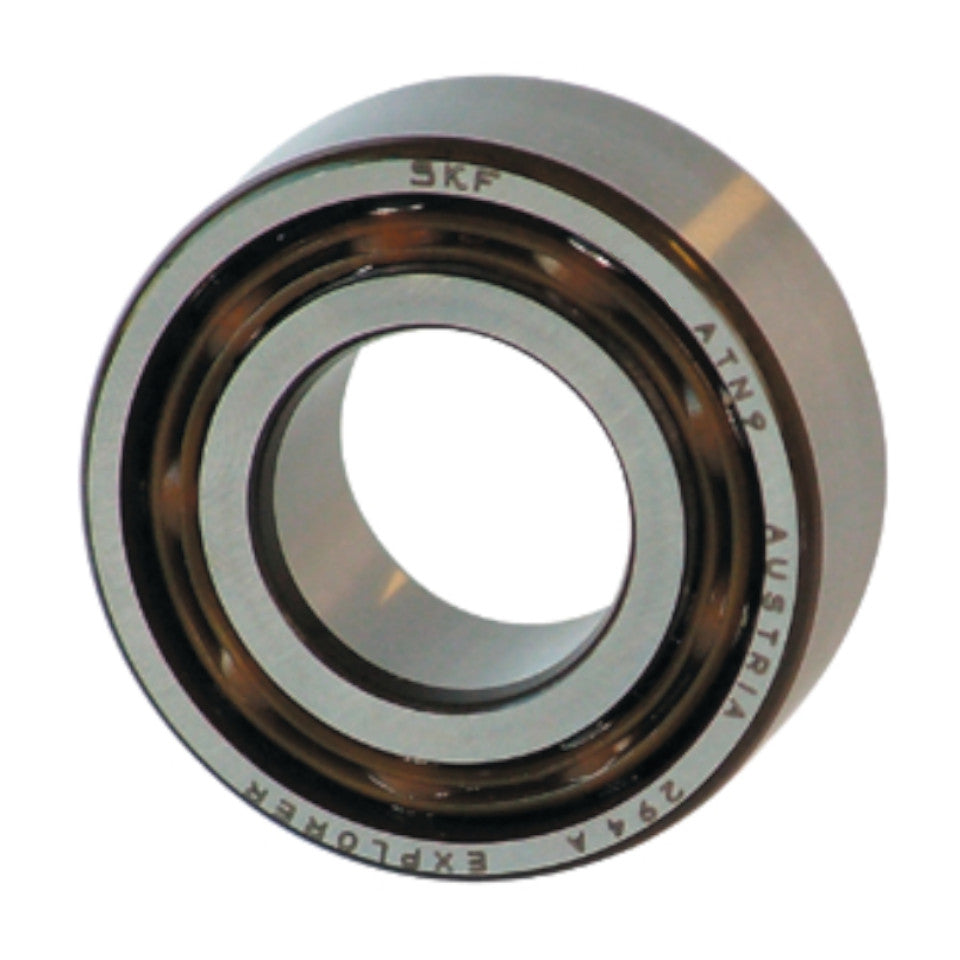

The SKF 3304ATN9 is a premium-quality double row angular contact ball bearing designed to handle both radial and axial loads in either direction. Its compact construction and robust performance make it ideal for applications requiring high stiffness and reliability within limited mounting space.
Angular contact ball bearings have raceways in the inner and outer rings which are displaced with respect to each other in the direction of the bearings axis.

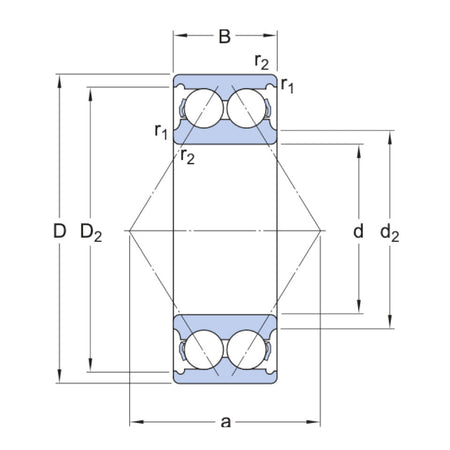

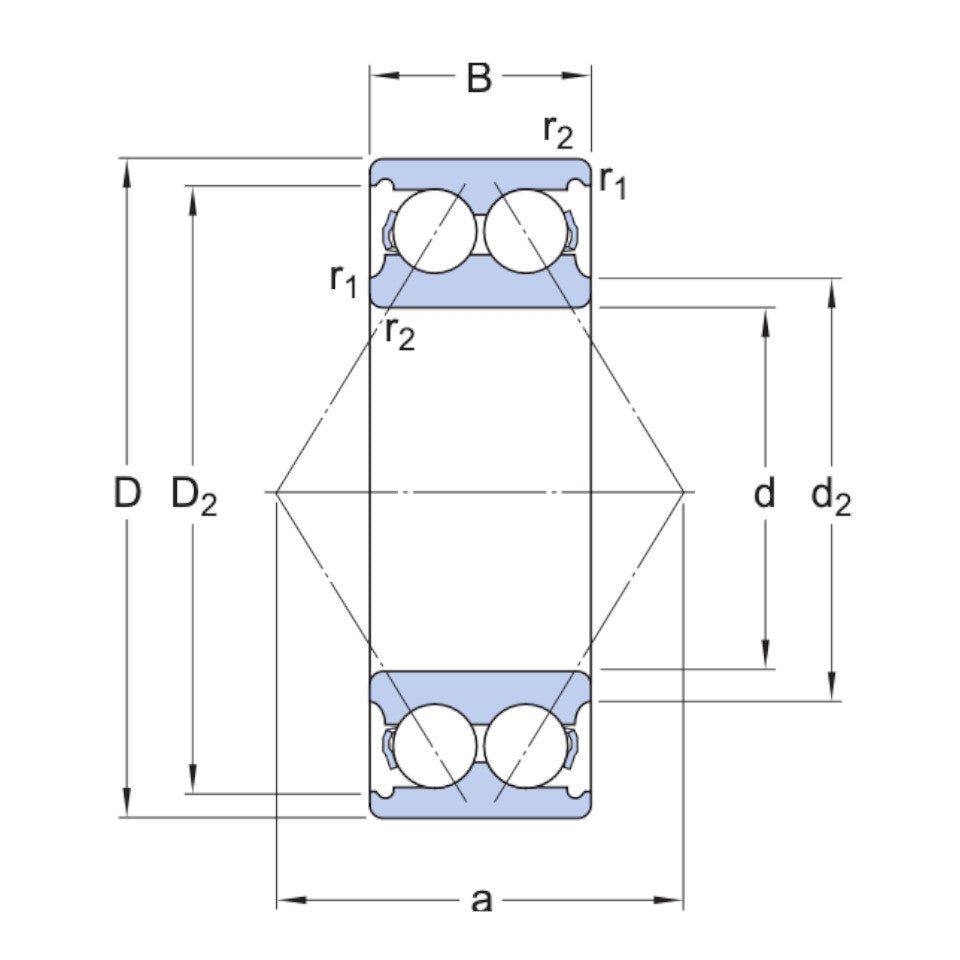

d: 20mm Bore
D: 52mm Outside Diameter
B: 22.2mm Width
Dynamic Load: 23.6kn
Static Load: 14.6kn
Fatigue Load Limit: 0.62kn
Reference Speed: 13 000 r/min
Limiting Speed: 13 000 r/min
Mass: 0.22kg
d2: 29.9mm
D2: 44.0mm
r1r2 Min: 1.1mm
a: 30mm
da Min: 27mm
Da Max: 45mm
ra Max: 1mm
