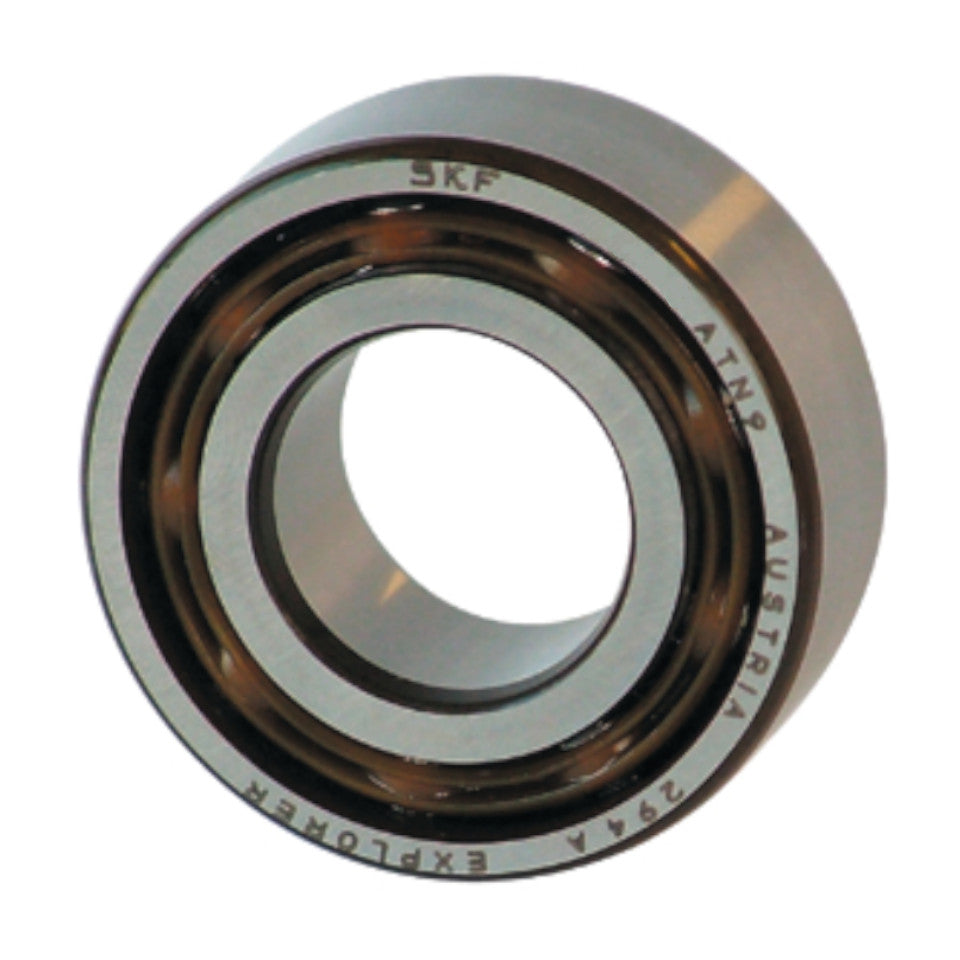

3305ATN9/C3 SKF Double Row Angular Contact Ball Bearing 25x62x25.4mm

In stock
SKU: 3305ATN9/C3-SKF
Double row angular contact ball bearing with polyamide cage & C3 clearance 25mm inside x 62mm outside x 25.4mm wide
Regular price £63.49 inc.VAT
£52.91 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
 More payment options

Pickup available at Bearing King

Usually ready in 24 hours

Product details

  • Vendor SKF
  • SKU 3305ATN9/C3-SKF
  • Inside diameter (d) 25mm
  • Outside diameter (D) 62mm
  • Width (B) 25.4mm
Angular contact ball bearings have raceways in the inner and outer rings which are displaced with respect to each other in the direction of the bearings axis. This means that they are suitable for combined loads both radial and axial. They provide a rigid bearing arrangement and accommodate tilting moments well.

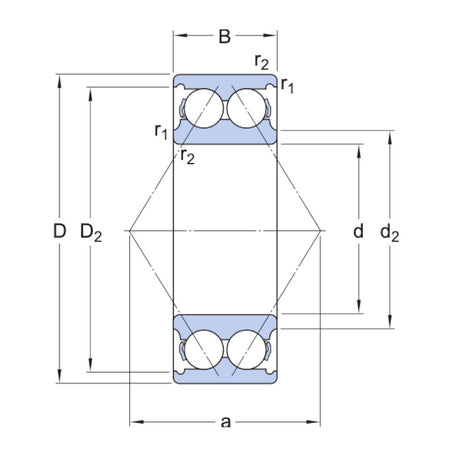

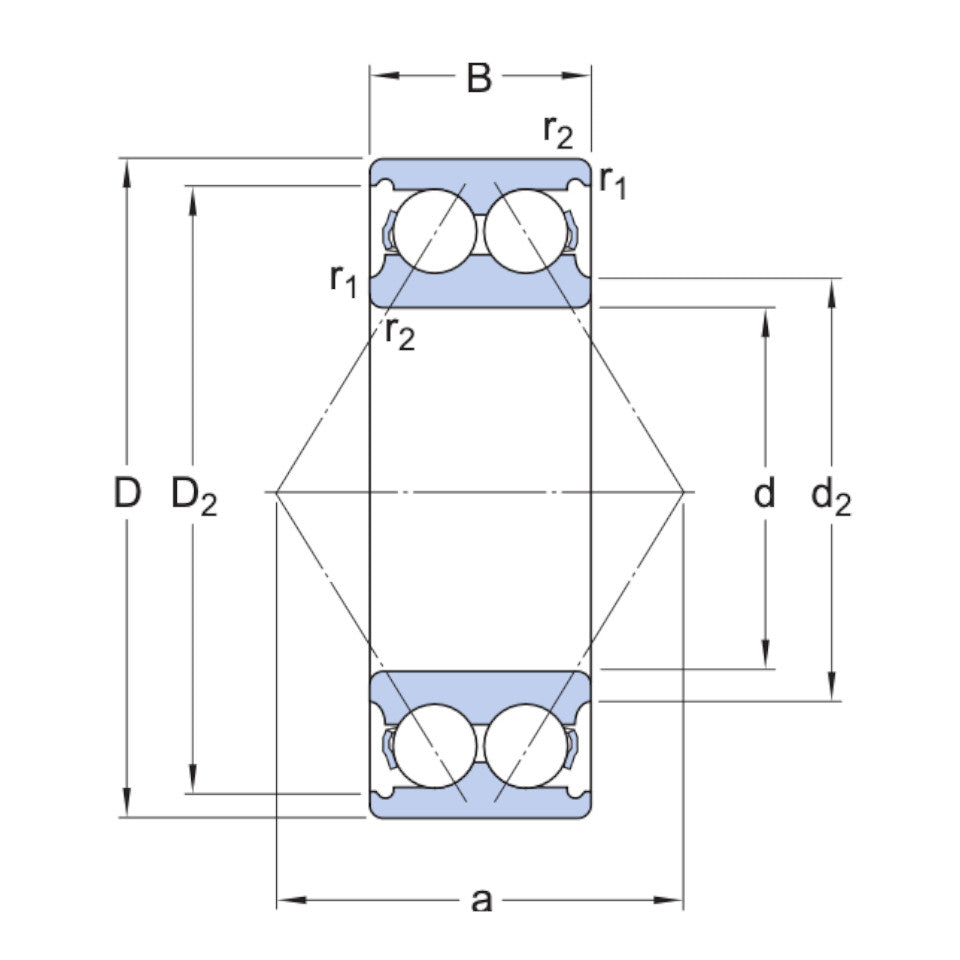

d: 25mm
D: 62mm
B: 25.4mm
Dynamic Load: 32kn
Static Load: 20.4kn
Fatigue Load Limit: 0.865kn
Reference Speed: 11 000 r/min
Limiting Speed: 11 000 r/min
Mass: 0.35kg
d2: 35.7mm
D2: 53.4mm
r1r2 Min: 1.1mm
a: 36mm
da Min: 32mm
Da Max: 55mm
ra Max: 1mm
