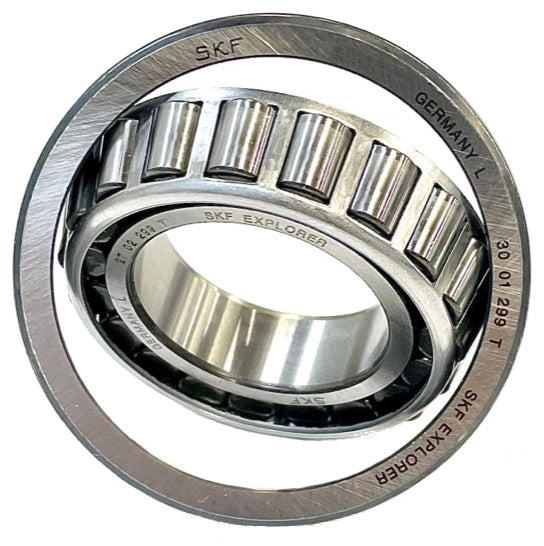

33109/Q SKF Tapered Roller Bearing 45x80x26mm
SKF Metric taper roller bearing priced cup & cone together 45mm inside x 80mm outside x 26mm width
Regular price
£51.82
inc.VAT
£43.18 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Pickup available at Bearing King
Usually ready in 24 hours
SKF Taper roller bearings have tapered inner and outer ring raceways between which tapered rollers are arranged. The projection lines of all the tapered surfaces meet at a common point on the bearing axis. Their design makes taper roller bearings particularly suitable for the accommodation of combined (radial and axial) loads.
Taper roller bearings are generally separable, i.e. the cone, consisting of the inner ring with roller and cage assembly, can be mounted separately from the cup (outer ring).
SKF taper roller bearings have the logarithmic contact profile that provides optimum stress distribution over the roller/raceway contacts. The special design of the sliding surfaces of the guide flange and large roller ends considerably promote lubricant film formation in the roller end/flange contacts. The resulting benefits include increased operational reliability and reduced sensitivity to misalignment.
Principal dimensions:
Inside diameter d: 45mm
Outside diameter D: 80mm
Width T: 26mm
Basic load ratings:
Dynamic C: 96,5kN
Static Co: 114kN
Fatigue load limit Pu: 12,9kN
Speed ratings:
Reference speed: 6 700 r/min
Limiting speed: 8 000 r/min
Mass: 0,56kg

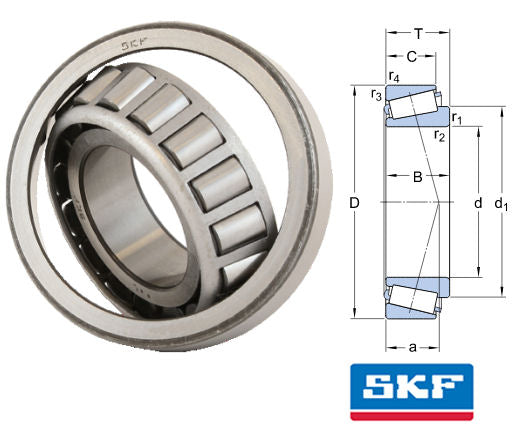

Dimensions:
d1: 62.7mm
B: 26mm
C: 20,5mm
r1,2 min: 1,5mm
r3,4 min: 1,5mm
a: 19mm
Taper roller bearings are generally separable, i.e. the cone, consisting of the inner ring with roller and cage assembly, can be mounted separately from the cup (outer ring).
SKF taper roller bearings have the logarithmic contact profile that provides optimum stress distribution over the roller/raceway contacts. The special design of the sliding surfaces of the guide flange and large roller ends considerably promote lubricant film formation in the roller end/flange contacts. The resulting benefits include increased operational reliability and reduced sensitivity to misalignment.
Principal dimensions:
Inside diameter d: 45mm
Outside diameter D: 80mm
Width T: 26mm
Basic load ratings:
Dynamic C: 96,5kN
Static Co: 114kN
Fatigue load limit Pu: 12,9kN
Speed ratings:
Reference speed: 6 700 r/min
Limiting speed: 8 000 r/min
Mass: 0,56kg
Dimensions:
d1: 62.7mm
B: 26mm
C: 20,5mm
r1,2 min: 1,5mm
r3,4 min: 1,5mm
a: 19mm
