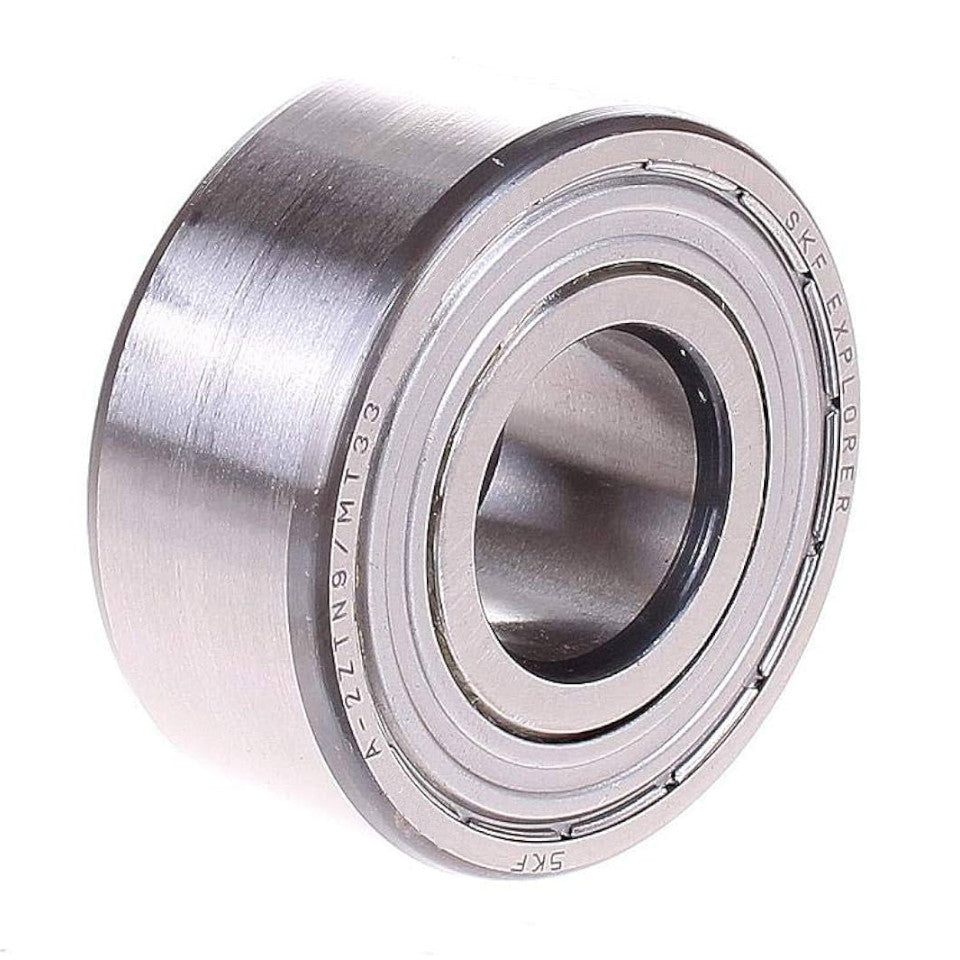

Angular contact ball bearings have raceways in the inner and outer rings which are displaced with respect to each other in the direction of the bearings axis. This means that they are suitable for combined loads both radial and axial. They provide a rigid bearing arrangement and accommodate tilting moments well.

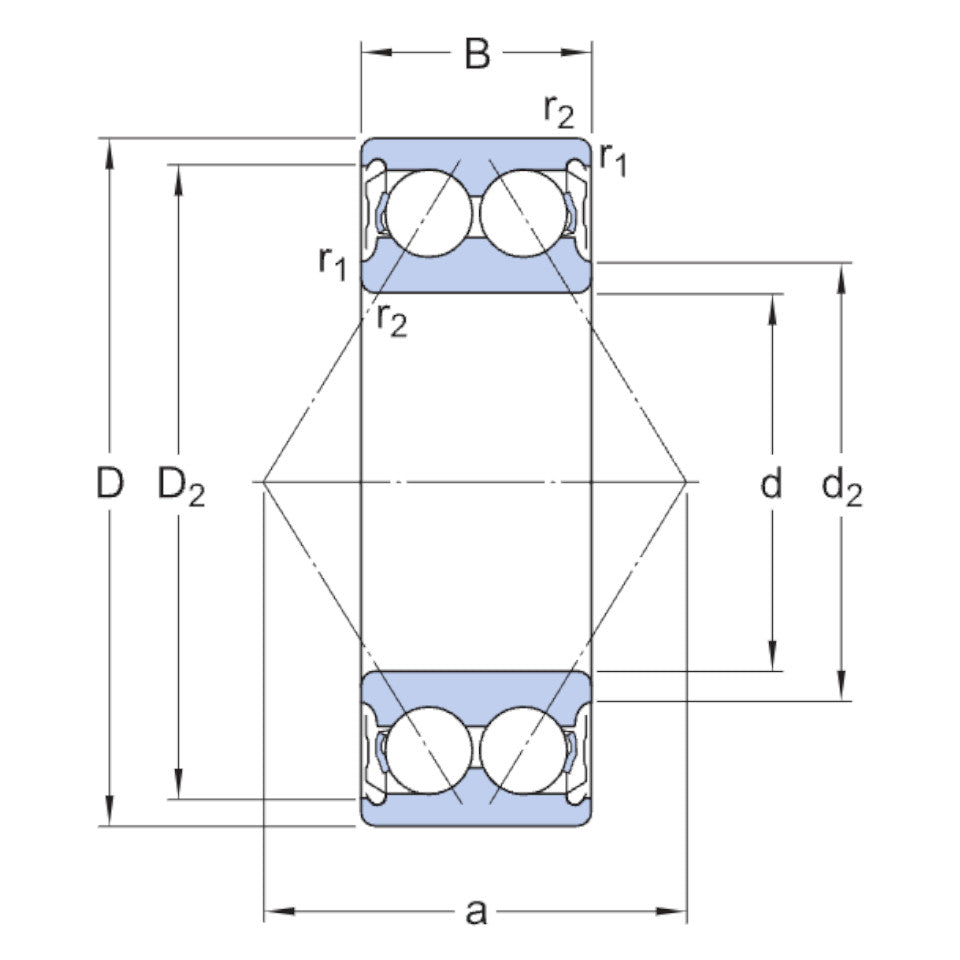

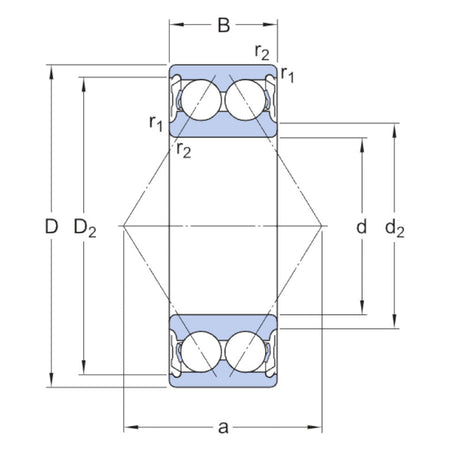

d: 60mm
D: 130mm
B: 54mm
Dynamic Load: 127kn
Static Load: 95kn
Fatigue Load Limit: 4.05kn
Reference Speed: 5 000 r/min
Limiting Speed: - r/min
Mass: 2.80kg
d2: 73.4mm
D2: 118mm
r1r2 Min: 2.1mm
a: 78mm
da Min: 72mm
da Max: 73mm
Da Max: 118mm
ra Max: 2mm
