Home » 4.5mm Diameter Grade 100 AISI316 Stainless Steel Balls

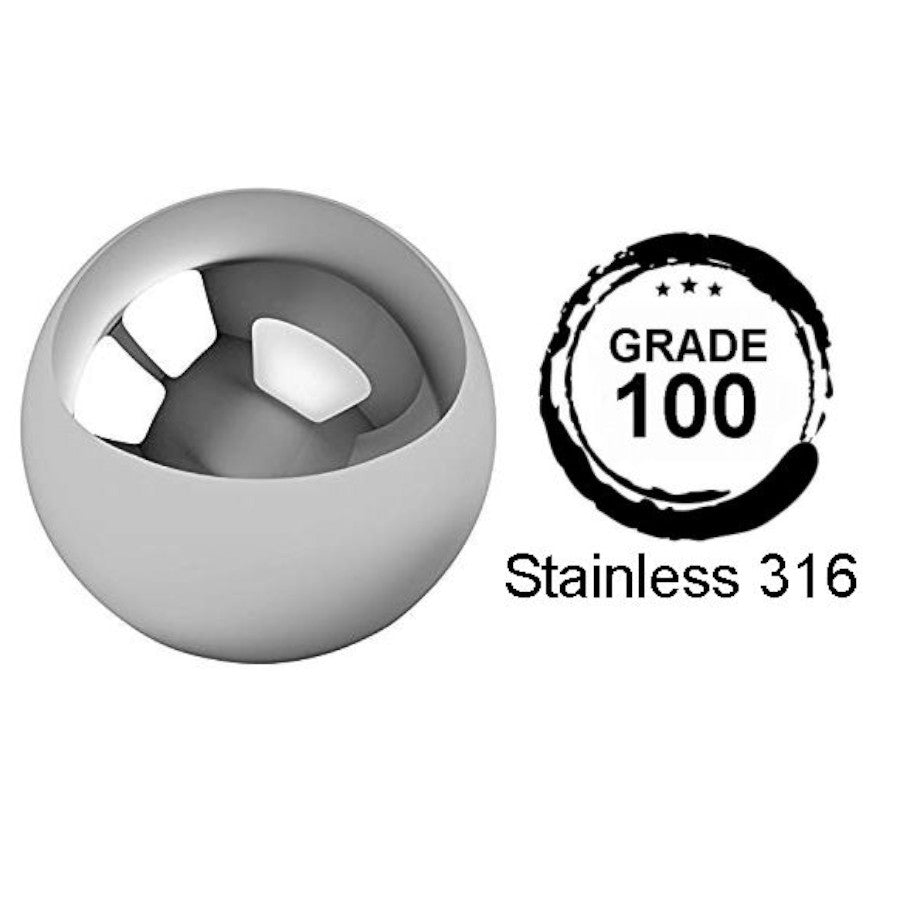

4.5mm Diameter Grade 100 AISI316 Stainless Steel Balls

In stock
SKU: 4.5mm-316-GD100/10PACK
High Quality 4.5mm Diameter loose grade 100 AISI316 stainless steel ball bearings
£5.05 inc.VAT
£4.21 exc.VAT
4.5mm Grade 100 AISI316 Stainless Steel Balls
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50

Product details

  • Vendor BKL Brand
  • SKU 4.5mm-316-GD100/10PACK
  • Outside diameter (D) 4.5mm
Description Delivery Returns
Grade 100 AISI316 Stainless steel loose ball bearings hardened to 25-39 Rockwell Scale, Similar to the AISI304 stainless steel, it has better resistance to the corrosion under particular circumstances and this is mainly due to the addition of molibdene, AISI316 stainless steel has a very low magnetic permeability which does not change in spite of work-hardening for deformation

Applications for 316 stainless steel balls include dairy, brewery, paper, pulp, photographic chemicals, inks, synthetic fiber, textile benches and dye stuffs equipment. Balls manufactured from 316 stainless steel are FDA approved for use in surgical implants. Due to high temperature properties type 316 stainless steel balls may be used at elevated temperatures.

International Equivalents
AISI316, X 5 Cr Ni Mo17-12-2, AFN Z6 CND 17.11, JIS SUS 316, Wks 1.4401

Min Crushing Load: 1240kg
Hardness: 25-39 HRC
Approximate qty per litre: 13,000
Weight each: 0.37g
Can be drilled
Attracted to magnets: No

Tensile Strength: 180,000 psi
Yield Strength: 150,000 psi
Density: 0.290 lbs/cu in

Chemical composition (percentage)
Carbon 0.070
Chromium 16.5-18.5
Nickel 10-13
Silicon 1.000
Molybdenum 2-2.5
Manganese 2
Phosphor 0.045
Sulphur 0.030
