51130M SKF Single Direction Thrust Ball Bearing 150x190x31mm

51130M SKF Single Direction Thrust Ball Bearing 150x190x31mm

Name: 51130M SKF Single Direction Thrust Ball Bearing 150x190x31mm
Brand: SKF
SKU: 51130M-SKF
Price: 315.79 GBP
Availability: InStock

In stock

SKU: 51130M-SKF

No reviews

Single direction thrust ball bearing 150mm inside x 190mm outside x 31mm width

£378.95 inc.VAT

£315.79 exc.VAT

All prices exclude VAT unless otherwise stated

Product variants

FREE UK MAINLAND DELIVERY ON ORDERS OVER £50

Product details

Vendor SKF
SKU 51130M-SKF
Inside diameter (d) 150mm
Outside diameter (D) 190mm
Width (B) 31mm

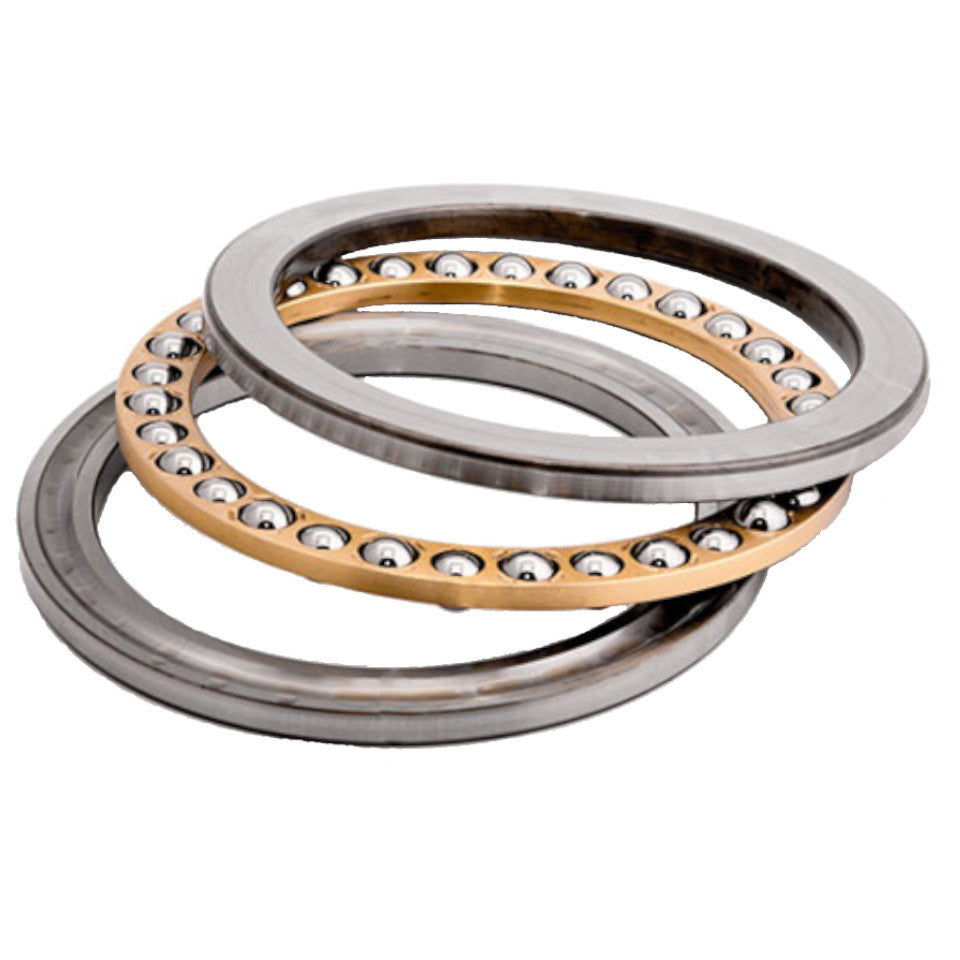

SKF Single direction thrust ball bearings consist of a shaft washer, a housing washer and a ball and cage thrust assembly. The bearings are separable so that mounting is simple as the washers and the ball and cage assembly can be mounted separately

Single direction thrust ball bearings, as their name suggests, can accommodate axial loads in one direction and thus locate a shaft axially in one direction. They must not be subjected to any radial load.

Principal dimensions:
d: 150mm
D: 190mm
H: 31mm

Basic load ratings:
Dynamic: 111 kN
Static: 440 kN

Fatigue load limit:
12.5 kN

Minimum load factor:
1

Speed ratings:
Reference speed 1 700 r/min
Limiting speed 2 400 r/min

Mass: 2.15kg

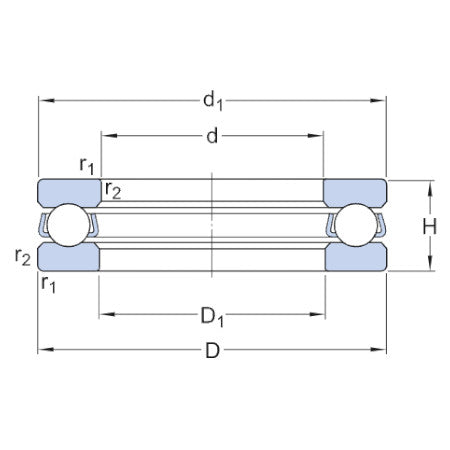

Dimensions:
d1: 188mm
D1: 152mm
r1,2 min: 1mm
