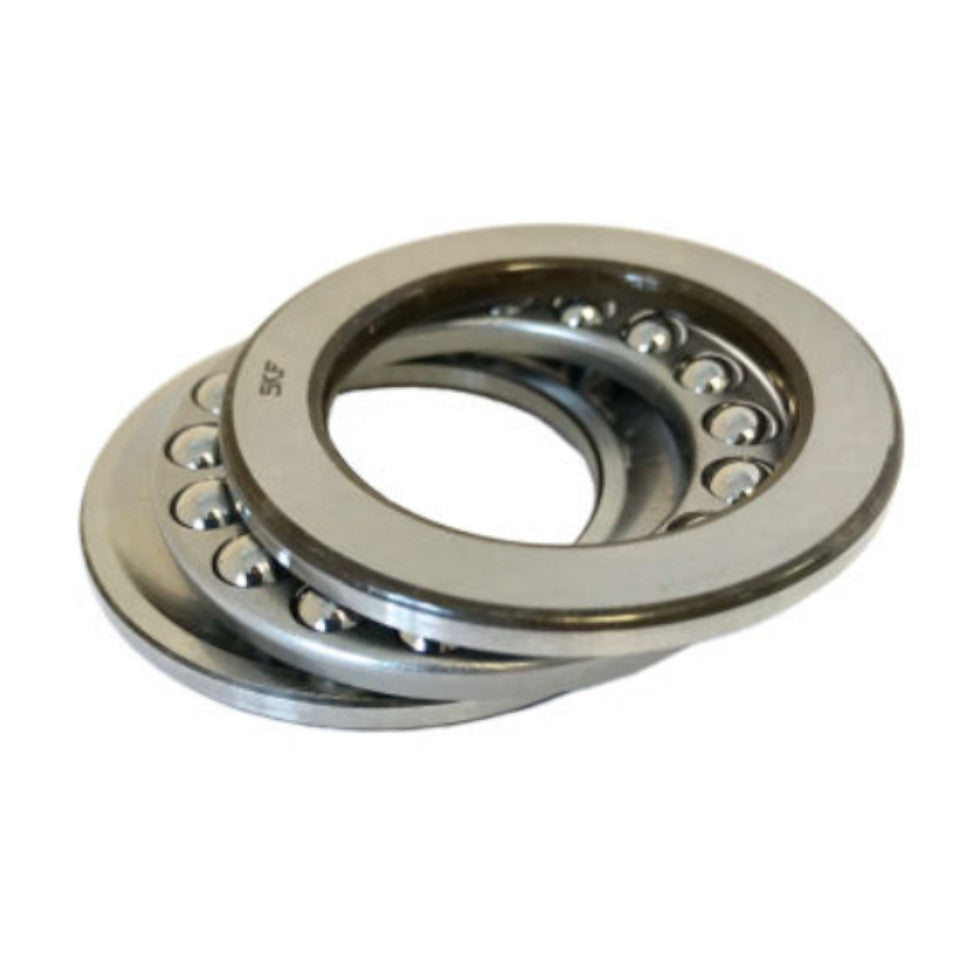

51226 SKF Single Direction Thrust Ball Bearing 130x190x45mm

51226 SKF Single Direction Thrust Ball Bearing 130x190x45mm

Name: 51226 SKF Single Direction Thrust Ball Bearing 130x190x45mm
Brand: SKF
SKU: 51226-SKF
Price: 319.45 GBP
Availability: InStock

In stock

SKU: 51226-SKF

No reviews

Single direction thrust ball bearing 130mm inside x 190mm outside x 45mm width

£383.34 inc.VAT

£319.45 exc.VAT

All prices exclude VAT unless otherwise stated

Product variants

FREE UK MAINLAND DELIVERY ON ORDERS OVER £50

Product details

Vendor SKF
SKU 51226-SKF
Inside diameter (d) 130mm
Outside diameter (D) 190mm
Width (B) 45mm

SKF Single direction thrust ball bearings consist of a shaft washer, a housing washer and a ball and cage thrust assembly. The bearings are separable so that mounting is simple as the washers and the ball and cage assembly can be mounted separately

Single direction thrust ball bearings, as their name suggests, can accommodate axial loads in one direction and thus locate a shaft axially in one direction. They must not be subjected to any radial load.

Principal dimensions:
d: 130mm
D: 190mm
H: 45mm

Basic load ratings:
Dynamic: 186 kN
Static: 585 kN

Fatigue load limit:
17 kN

Minimum load factor:
1,8

Speed ratings:
Reference speed 1 400 r/min
Limiting speed 2 000 r/min

Mass: 4,00kg

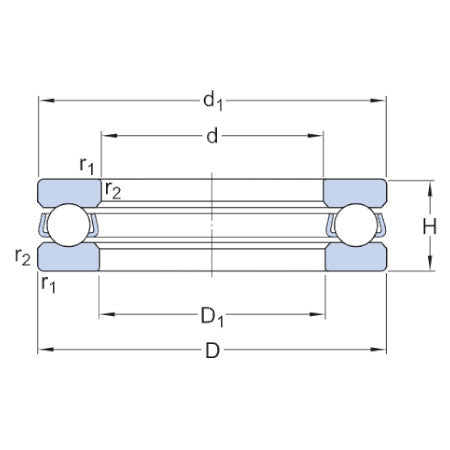

Dimensions:
d1: 130mm
D1: 187mm
r1,2 min: 1,5mm
