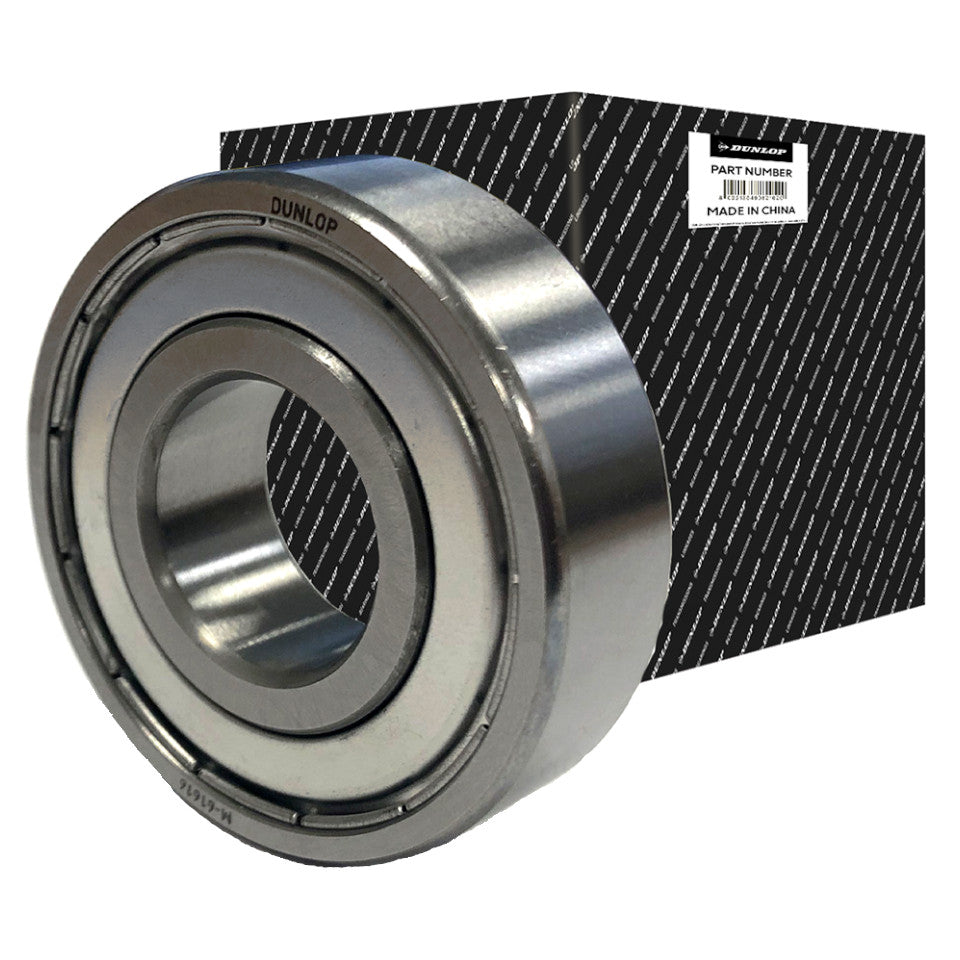

Home » 6001 ZZ C3 Dunlop Shielded Deep Groove Ball Bearing 12mm inside x 28mm outside x 8mm wide
6001 ZZ C3 Dunlop Shielded Deep Groove Ball Bearing 12mm inside x 28mm outside x 8mm wide
6001 ZZ C3 Dunlop Shielded Deep Groove Ball Bearing 12mm inside x 28mm outside x 8mm wide
6001 ZZ C3 Dunlop Shielded Deep Groove Ball Bearing 12mm inside x 28mm outside x 8mm wide
6001 ZZ C3 Dunlop Shielded Deep Groove Ball Bearing 12mm inside x 28mm outside x 8mm wide

6001 ZZ C3 Dunlop Shielded Deep Groove Ball Bearing 12mm inside x 28mm outside x 8mm wide

In stock
SKU: 6001-ZZ-C3-DUNLOP
Dunlop Single row deep groove ball bearing with two metal shields & C3 clearance 12mm inside x 28mm outside x 8mm width, also known as 6001ZC3, 6001ZC3, 6001ZZC3
£1.73 inc.VAT
£1.44 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50

Product details

  • Vendor Dunlop
  • SKU 6001-ZZ-C3-DUNLOP
  • Inside diameter (d) 12mm
  • Outside diameter (D) 28mm
  • Width (B) 8mm
Description Delivery Returns
Dunlop Single row deep groove ball bearings are used in a wide variety of applications, they are simple in design, non-separable, suitable for high speeds and are robust in operation, and need little maintenance. Deep raceway grooves and the close conformity between the raceway grooves and the balls enable deep groove ball bearings to accommodate axial loads in both directions, in addition to radial loads.

Single row deep groove ball bearings are manufactured as open type (unsealed), sealed and shielded, the most popular sizes of deep groove ball bearings are also produced in sealed versions with shields or contact seals on one or both sides, the bearings with shields or seals on both sides are lubricated for life and are maintenance free. A sealed bearings seals has contact on the bearings inner and outer, a shielded bearings shield has contact on the outer only, and Shielded bearings are primarily intended for applications where the inner ring rotates. If the outer ring rotates, there is a risk that the grease will leak from the bearing at high speeds.

Principal Dimensions
Inside diameter: 12mm
Outside diameter: 28mm
Width: 8mm

Basic Load Rating
Dynamic: 5.09 kN
Static: 2.36 kN

Fatigue Load Limit: 0.11 kN

Limiting speed for lubrication with
Grease: 25000 r/min
Oil: 30000 r/min

Weight: 0.022 kg
