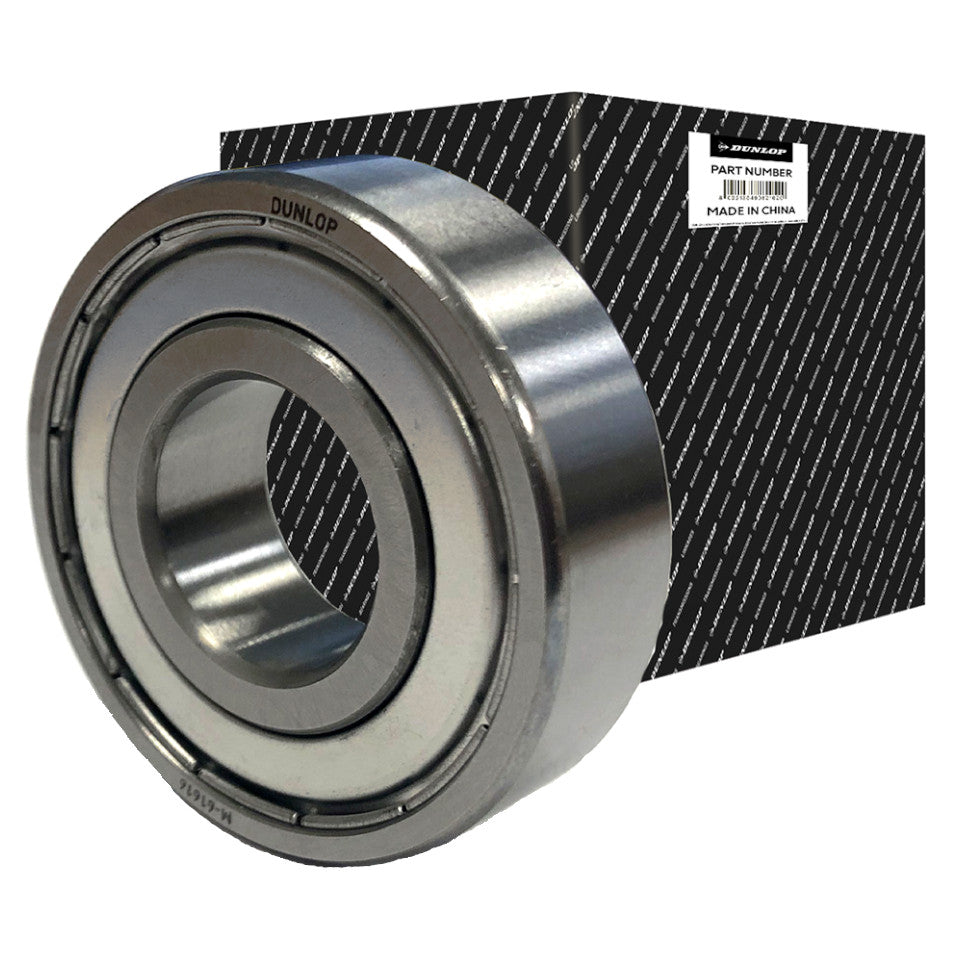

6003 ZZ C3 Dunlop Shielded Deep Groove Ball Bearing 17mm inside x 35mm outside x 10mm wide
Dunlop Single row deep groove ball bearing with two metal shields & C3 clearance 10mm inside x 26mm outside x 8mm width, also known as 60032ZC3, 6003ZC3, 6003ZZC3
Regular price
£2.14
inc.VAT
£1.78 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
Dunlop Single row deep groove ball bearings are used in a wide variety of applications, they are simple in design, non-separable, suitable for high speeds and are robust in operation, and need little maintenance. Deep raceway grooves and the close conformity between the raceway grooves and the balls enable deep groove ball bearings to accommodate axial loads in both directions, in addition to radial loads.
Single row deep groove ball bearings are manufactured as open type (unsealed), sealed and shielded, the most popular sizes of deep groove ball bearings are also produced in sealed versions with shields or contact seals on one or both sides, the bearings with shields or seals on both sides are lubricated for life and are maintenance free. A sealed bearings seals has contact on the bearings inner and outer, a shielded bearings shield has contact on the outer only, and Shielded bearings are primarily intended for applications where the inner ring rotates. If the outer ring rotates, there is a risk that the grease will leak from the bearing at high speeds.
Principal Dimensions
Inside diameter: 17mm
Outside diameter: 35mm
Width: 10mm
Basic Load Rating
Dynamic: 6.00 kN
Static: 3.27 kN
Fatigue Load Limit: 0.15 kN
Limiting speed for lubrication with
Grease: 20000 r/min
Oil: 24000 r/min
Weight: 0.04 kg
Single row deep groove ball bearings are manufactured as open type (unsealed), sealed and shielded, the most popular sizes of deep groove ball bearings are also produced in sealed versions with shields or contact seals on one or both sides, the bearings with shields or seals on both sides are lubricated for life and are maintenance free. A sealed bearings seals has contact on the bearings inner and outer, a shielded bearings shield has contact on the outer only, and Shielded bearings are primarily intended for applications where the inner ring rotates. If the outer ring rotates, there is a risk that the grease will leak from the bearing at high speeds.
Principal Dimensions
Inside diameter: 17mm
Outside diameter: 35mm
Width: 10mm
Basic Load Rating
Dynamic: 6.00 kN
Static: 3.27 kN
Fatigue Load Limit: 0.15 kN
Limiting speed for lubrication with
Grease: 20000 r/min
Oil: 24000 r/min
Weight: 0.04 kg
