6017NR SKF Open Deep Groove Ball Bearing with Circlip Groove and Circlip 85mm inside x 130mm outside x 22mm wide
SKF Single row deep groove ball bearing with circlip and circlip groove 85mm inside x 130mm outside x 22mm width, 6017 NR
Regular price
£109.19
inc.VAT
£90.99 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
SKF Single row deep groove ball bearings are used in a wide variety of applications, they are simple in design, non-separable, suitable for high speeds and are robust in operation, and need little maintenance. Deep raceway grooves and the close conformity between the raceway grooves and the balls enable deep groove ball bearings to accommodate axial loads in both directions, in addition to radial loads.
Single row deep groove ball bearings are manufactured as open type (unsealed), sealed and shielded, the most popular sizes of deep groove ball bearings are also produced in sealed versions with shields or contact seals on one or both sides, the bearings with shields or seals on both sides are lubricated for life and are maintenance free. A sealed bearings seals has contact on the bearings inner and outer, a shielded bearings shield has contact on the outer only, and Shielded bearings are primarily intended for applications where the inner ring rotates. If the outer ring rotates, there is a risk that the grease will leak from the bearing at high speeds.
Principal Dimensions
Inside diameter d: 85mm
Outside diameter B: 130mm
Width D: 22mm
Basic Load Ratings
Dynamic: 52kn
Static: 43kn
Speed Ratings
Reference speed: 11000 r/min
Limiting speed: 6700 r/min

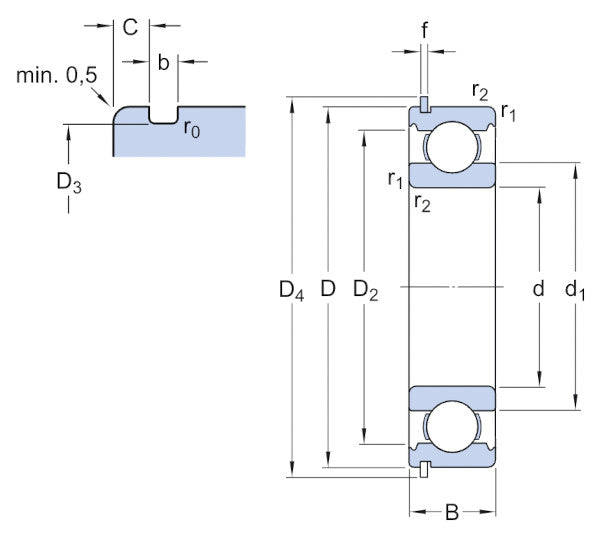

Dimensions mm
d: 85mm
D: 130mm
B: 22mm
d1: 99.4mm
D2: 116mm
D3: 125.22mm
D4: 139.7mm
b: 3.1mm
C: 2.87mm
f: 2.82mm
r0 max.0.6mm
r1,2 min.1.1mm
Single row deep groove ball bearings are manufactured as open type (unsealed), sealed and shielded, the most popular sizes of deep groove ball bearings are also produced in sealed versions with shields or contact seals on one or both sides, the bearings with shields or seals on both sides are lubricated for life and are maintenance free. A sealed bearings seals has contact on the bearings inner and outer, a shielded bearings shield has contact on the outer only, and Shielded bearings are primarily intended for applications where the inner ring rotates. If the outer ring rotates, there is a risk that the grease will leak from the bearing at high speeds.
Principal Dimensions
Inside diameter d: 85mm
Outside diameter B: 130mm
Width D: 22mm
Basic Load Ratings
Dynamic: 52kn
Static: 43kn
Speed Ratings
Reference speed: 11000 r/min
Limiting speed: 6700 r/min
Dimensions mm
d: 85mm
D: 130mm
B: 22mm
d1: 99.4mm
D2: 116mm
D3: 125.22mm
D4: 139.7mm
b: 3.1mm
C: 2.87mm
f: 2.82mm
r0 max.0.6mm
r1,2 min.1.1mm
