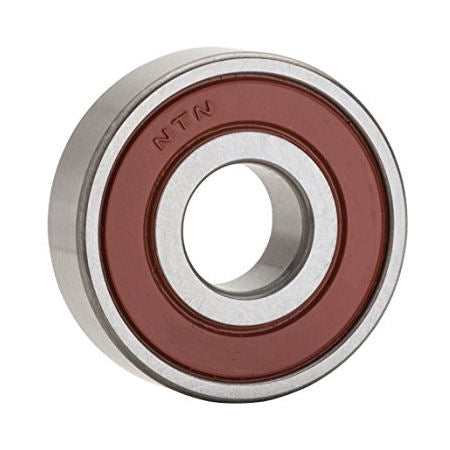

6028LLUC3 NTN Sealed Deep Groove Ball Bearing 140x210x33mm
NTN Single row deep groove ball bearing with C3 Clearance. 140mm inside x 210mm outside x 33mm width
Regular price
£244.31
inc.VAT
£203.59 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
Single row deep groove ball bearings are used in a wide variety of applications, they are simple in design, non-separable, suitable for high speeds and are robust in operation, and need little maintenance. Deep raceway grooves and the close conformity between the raceway grooves and the balls enable deep groove ball bearings to accommodate axial loads in both directions, in addition to radial loads.
Single row deep groove ball bearings are manufactured as open type (unsealed), sealed and shielded, the most popular sizes of deep groove ball bearings are also produced in sealed versions with shields or contact seals on one or both sides, the bearings with shields or seals on both sides are lubricated for life and are maintenance free. A sealed bearings seals has contact on the bearings inner and outer, a shielded bearings shield has contact on the outer only, and Shielded bearings are primarily intended for applications where the inner ring rotates. If the outer ring rotates, there is a risk that the grease will leak from the bearing at high speeds.

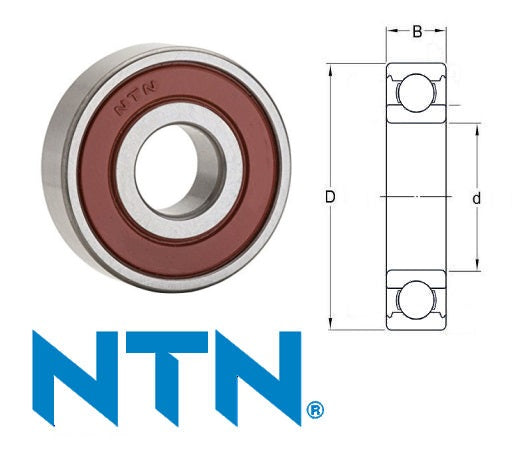

d - Internal diameter 140 mm
D - External diameter 210 mm
B - Bearing/Inner ring width 33 mm
rs - Min fillet radius 2 mm
Radial clearance class C3
Mass 3,35 kg
PRODUCT PERFORMANCE
C - Dynamic load 122 kN
C0 - Static load 109 kN
Cu - Fatigue limit load 5,85 kN
f0 - Coefficient 15.9
Nlim - Grease lubrication limit speed 1800 tr/min
Tmin - Min operating temperature -25 C
Tmax - Max operating temperature 110 C
ABUTMENT
da min - Min shoulder diameter IR 149 mm
Da max - Max shoulder diameter OR 201 mm
ra max - Max shaft & housing fillet radius 2 mm
NTN are a leading Japanese Bearing Manufacturer widely used around the world due to their exceptional durability and quality.
