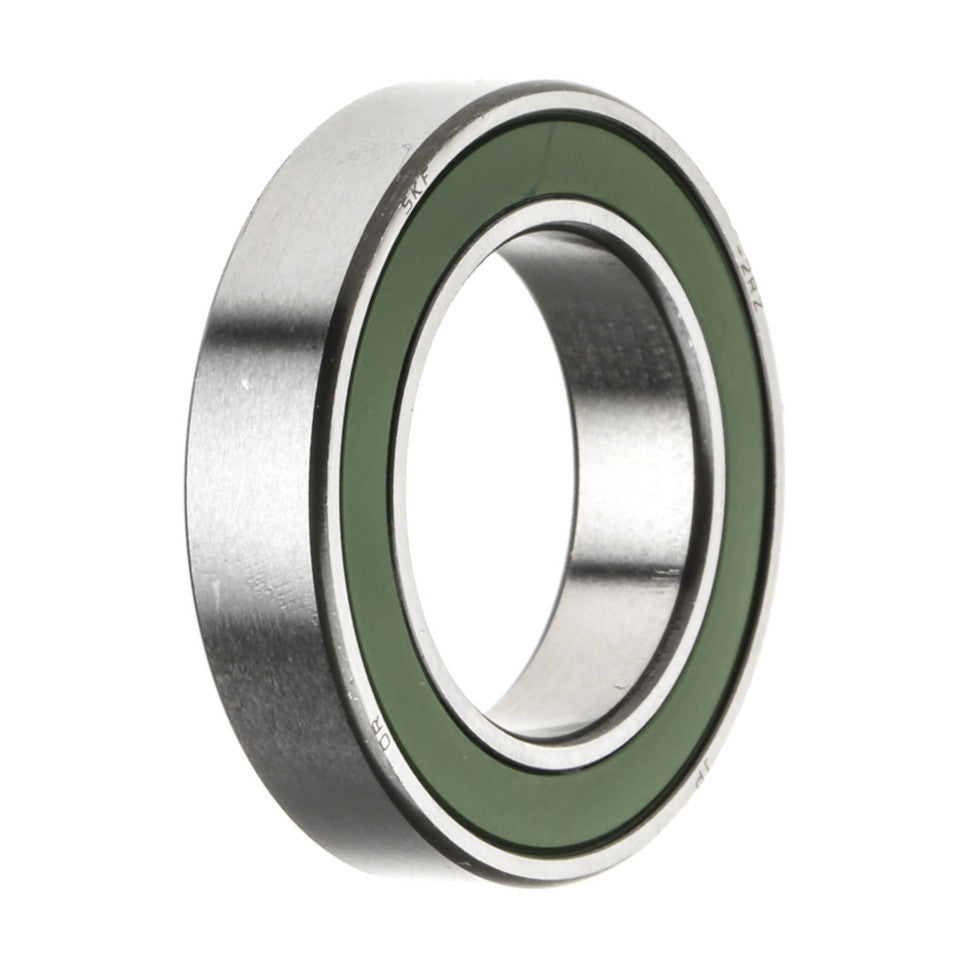

61815-2RZ SKF Sealed Deep Groove Ball Bearing 75x95x10mm
SKF Single row deep groove ball bearing with two low friction non contact rubber seals 75mm inside x 95mm outside x 10mm width
Regular price
£92.65
inc.VAT
£77.21 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
SKF 61815-2RZ is a high-precision, ultra-thin single row deep groove ball bearing, specifically designed for applications where space and weight are critical constraints. Despite its slim profile, this bearing delivers exceptional performance, supporting both radial loads and moderate axial loads at high speeds.
Fitted with two non contact rubber seals (2RZ) one on each side, produces very low friction and provides excellent protection against dust, dirt, and moisture, ensuring long and reliable service life even in demanding environments.
Factory filled with high quality SKF grease, the bearing is maintenance free and ready to install, saving time and reducing the risk of premature failure.
Its thin section design makes it ideal for compact assemblies such as small electric motors, medical devices, robotics, and precision instruments, where space savings and performance go hand in hand.
Key Features:
Bearing Type: Thin Section Deep Groove Ball Bearing
Brand: SKF
Sealing: 2RZ Non contact rubber seals on both sides which produces very low friction and for effective protection against contaminants
Internal Clearance: Standard (CN)
Grease: Factory-filled for long-lasting, maintenance-free operation
Design: Ultra-thin section, sealed and pre-lubricated ready to install
Typical Applications:
Small electric motors
Medical devices and laboratory equipment
Robotics and automation systems
Precision instruments
Office equipment
Aerospace and defence applications
Consumer electronics
Model making and hobby engineering
This bearing combines SKF renowned engineering quality with robust sealing and optimal clearance, ensuring reliable operation across a wide range of industrial and automotive applications.
SKF Single Row Deep Groove Ball Bearings - Trusted Performance, Proven Reliability. Engineered to perform under the most demanding conditions, SKF Single row deep groove ball bearings offer superior load carrying capacity, low friction, and extended service life. Their versatility makes them an excellent choice for a wide range of industries, from automotive to manufacturing. Whether you need high speed performance or robust sealing against contaminants, SKF delivers unmatched quality and value.
Principal Dimensions
Inside diameter d: 75mm
Outside diameter B: 95mm
Width D: 10mm
Basic Load Ratings
Dynamic: 12.5kn
Static: 10.8kn
Speed Ratings
Reference speed: 14 000 r/min
Limiting speed: 7 000 r/min

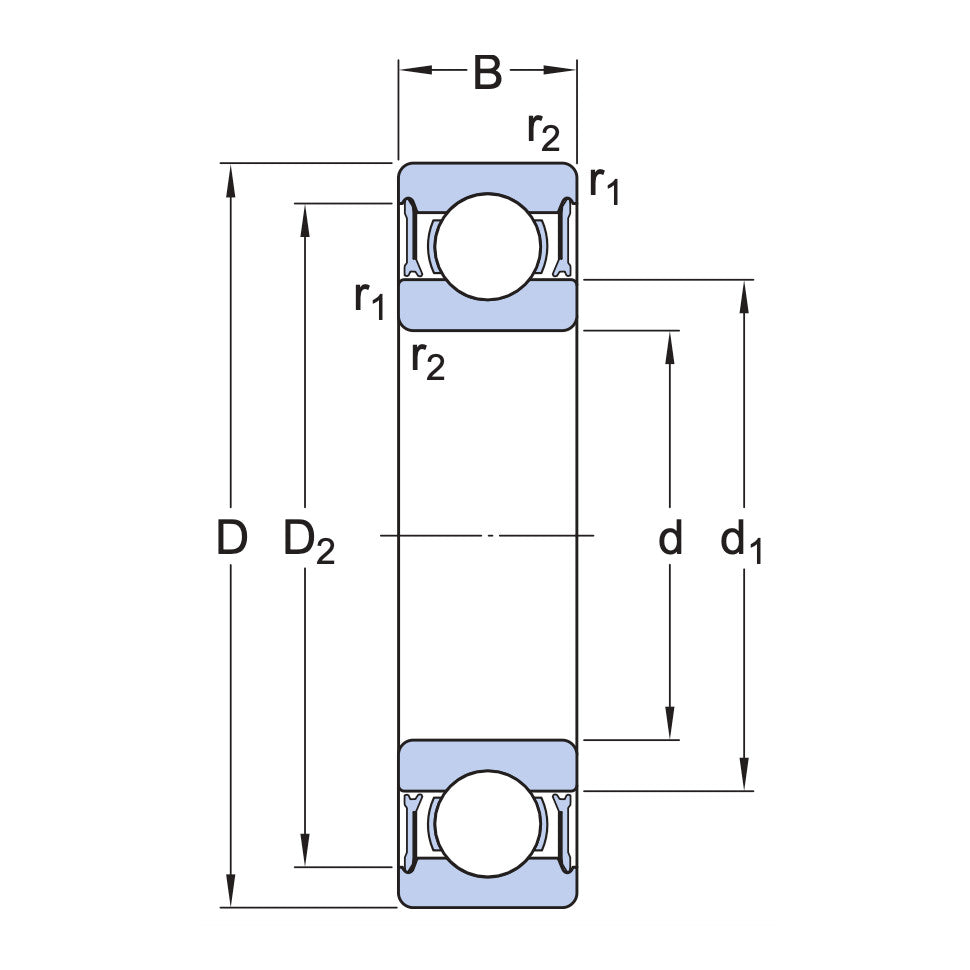

Dimensions mm
d1: 81.7
D2: 90.7
r1,2 min: 0.6
