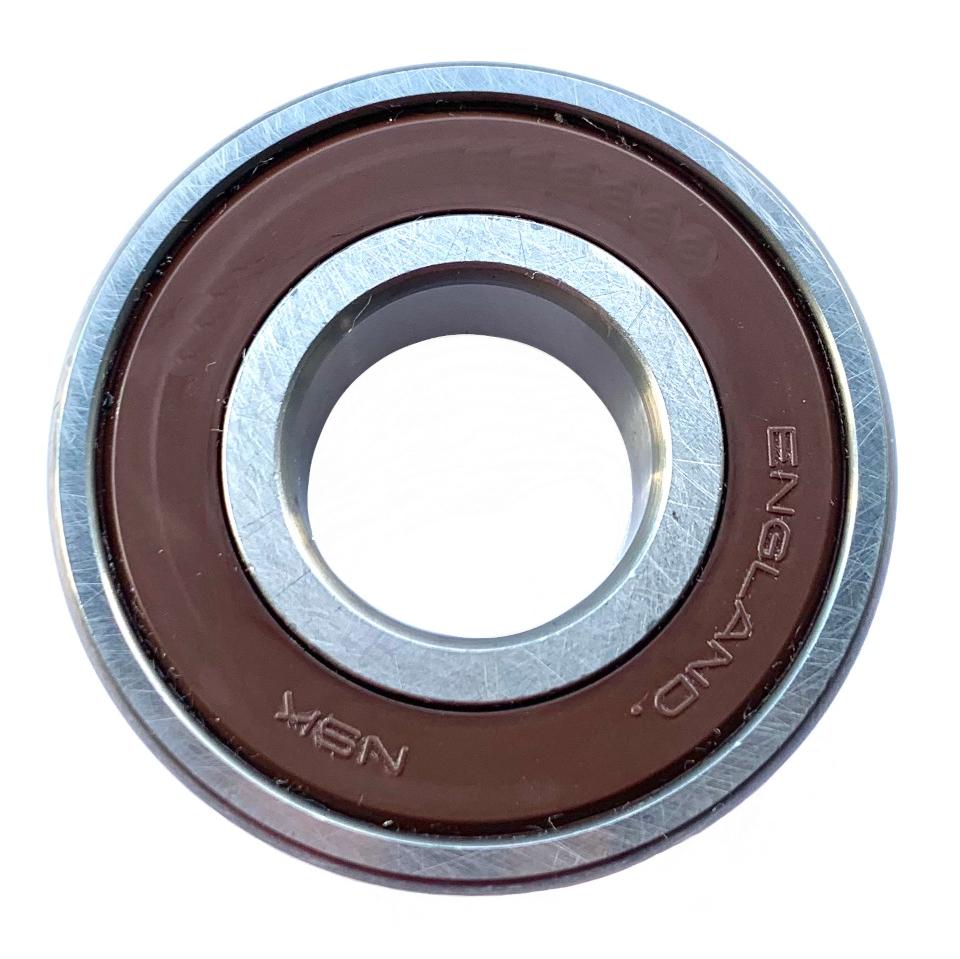

62/32DDUC3 NSK Sealed Deep Groove Ball Bearing 32x65x17mm
NSK Single row deep groove ball bearing with two rubber seals and C3 Clearance. 32mm inside x 65mm outside x 17mm width, also known as 62/32DU, 62/32LLU, 62/32LUC3, 62/32-2RS/C3, 62/32RSC3
Regular price
£17.96
inc.VAT
£14.97 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
Single row deep groove ball bearings are used in a wide variety of applications, they are simple in design, non-separable, suitable for high speeds and are robust in operation, and need little maintenance. Deep raceway grooves and the close conformity between the raceway grooves and the balls enable deep groove ball bearings to accommodate axial loads in both directions, in addition to radial loads.
Single row deep groove ball bearings are manufactured as open type (unsealed), sealed and shielded, the most popular sizes of deep groove ball bearings are also produced in sealed versions with shields or contact seals on one or both sides, the bearings with shields or seals on both sides are lubricated for life and are maintenance free. A sealed bearings seals has contact on the bearings inner and outer, a shielded bearings shield has contact on the outer only, and Shielded bearings are primarily intended for applications where the inner ring rotates. If the outer ring rotates, there is a risk that the grease will leak from the bearing at high speeds.
Principal Dimensions
Inside diameter: 32mm
Outside diameter: 65mm
Width: 17mm
Basic Load Ratings
Dynamic: 15.1kn
Static: 9.15kn
Speed Ratings
Limiting speed Grease: 10,000 rpm
Limiting speed Oil: 12,000 rpm
Limiting Speeds (r/min)
Grease: 9500
Single row deep groove ball bearings are manufactured as open type (unsealed), sealed and shielded, the most popular sizes of deep groove ball bearings are also produced in sealed versions with shields or contact seals on one or both sides, the bearings with shields or seals on both sides are lubricated for life and are maintenance free. A sealed bearings seals has contact on the bearings inner and outer, a shielded bearings shield has contact on the outer only, and Shielded bearings are primarily intended for applications where the inner ring rotates. If the outer ring rotates, there is a risk that the grease will leak from the bearing at high speeds.
Principal Dimensions
Inside diameter: 32mm
Outside diameter: 65mm
Width: 17mm
Basic Load Ratings
Dynamic: 15.1kn
Static: 9.15kn
Speed Ratings
Limiting speed Grease: 10,000 rpm
Limiting speed Oil: 12,000 rpm
Limiting Speeds (r/min)
Grease: 9500
