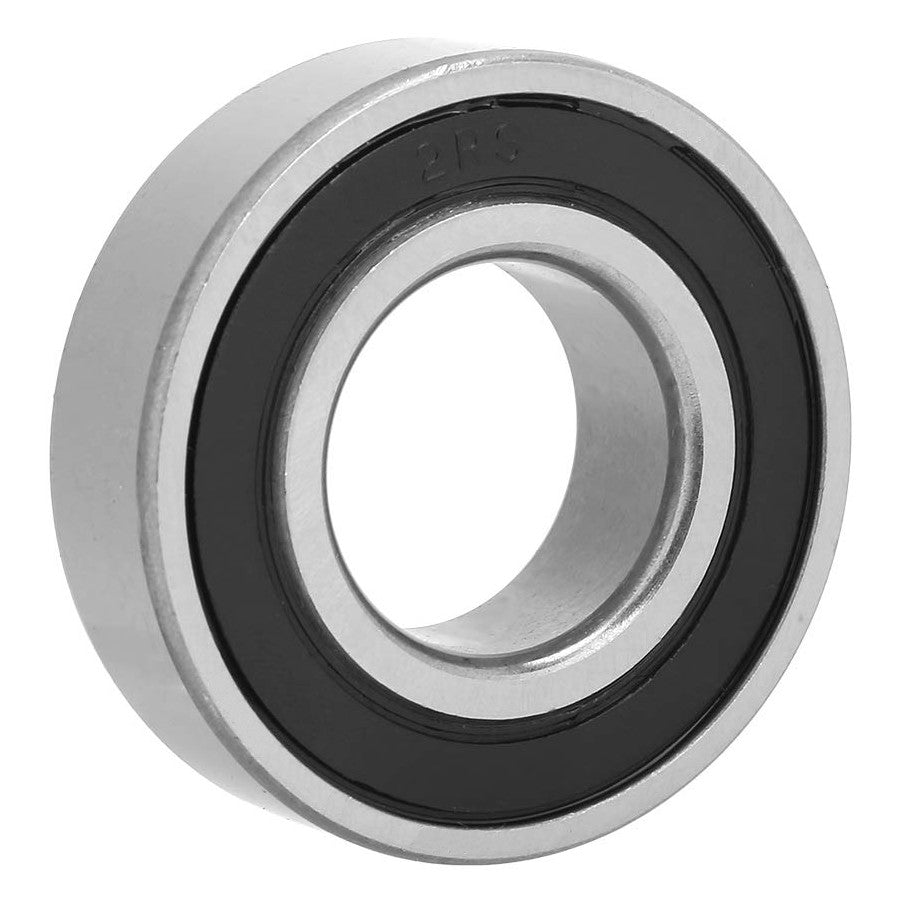

6205-2RS ZEN Sealed Deep Groove Ball Bearing 25x52x15mm
Single row deep groove ball bearing. 25mm inside x 52mm outside x 15mm width, also known as 6205 2RS, 6205rs, 6205DDU
Regular price
From
£3.73
£3.11 exc.VAT
Couldn't load pickup availability
ZEN Single row deep groove ball bearings are used in a wide variety of applications, they are simple in design, non-separable, suitable for high speeds and are robust in operation, and need little maintenance. Deep raceway grooves and the close conformity between the raceway grooves and the balls enable deep groove ball bearings to accommodate axial loads in both directions, in addition to radial loads.
Single row deep groove ball bearings are manufactured as open type (unsealed), sealed and shielded, the most popular sizes of deep groove ball bearings are also produced in sealed versions with shields or contact seals on one or both sides, the bearings with shields or seals on both sides are lubricated for life and are maintenance free. A sealed bearings seals has contact on the bearings inner and outer, a shielded bearings shield has contact on the outer only, and Shielded bearings are primarily intended for applications where the inner ring rotates. If the outer ring rotates, there is a risk that the grease will leak from the bearing at high speeds.

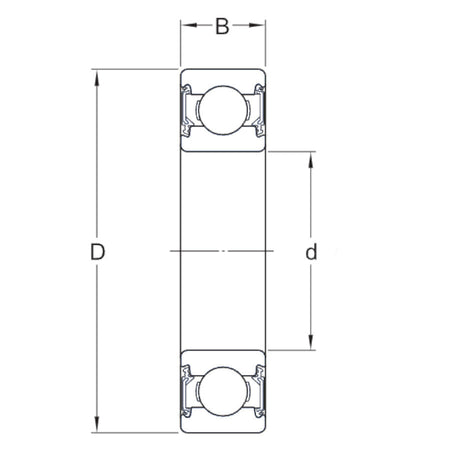

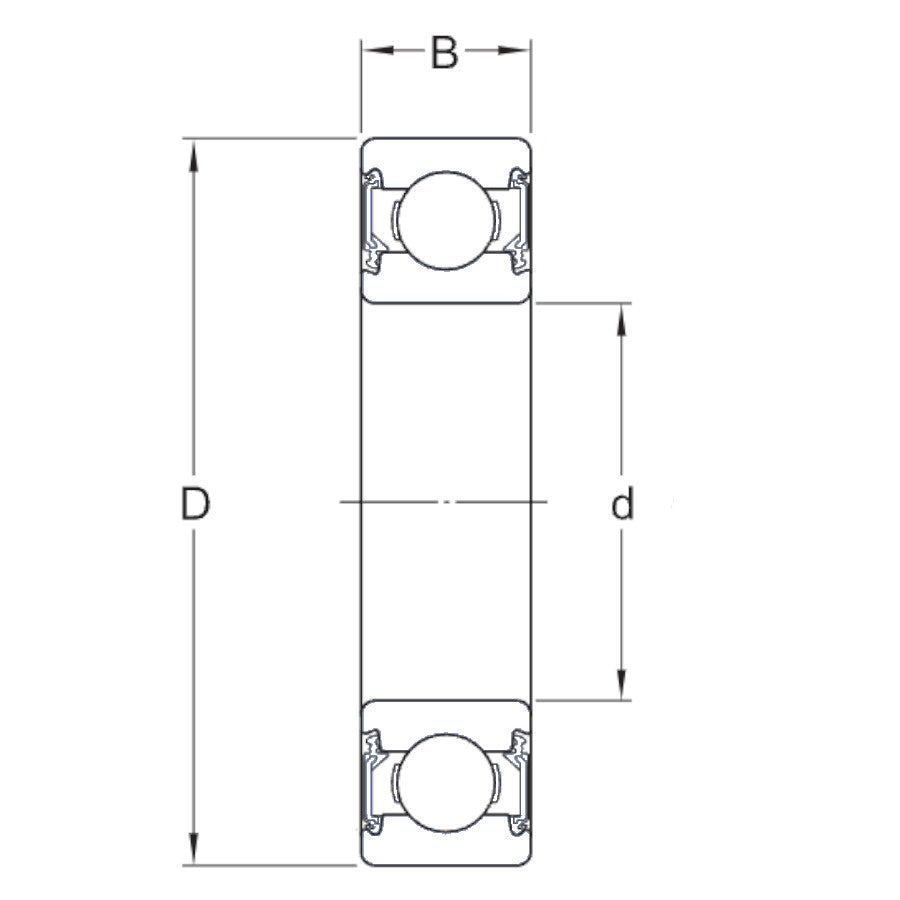

Principal Dimensions
Inside diameter: 25mm
Outside diameter: 52mm
Width: 15mm
WORKING INFORMATION
Radial Play (mm) 0.005-0.02
Load Rating C, dyn. N 14000
C, stat. N 7850
Weight (g) 129
Limiting Speed(x1000rpm) Grease 13.0
ZEN Group has been producing quality bearings that meet the stringent demands of our customers. Zen produce both standard and tailor made custom solutions engineered for the toughest production challenges. In these fast moving times their combination of creativity, innovation and technical expertise ensures customers worldwide experience consistent, industry leading quality in every bearing we manufacture. The ZEN group was established in Dusseldorf, Germany in 1992 specializing in manufacturing German industry standard bearings in China.
Single row deep groove ball bearings are manufactured as open type (unsealed), sealed and shielded, the most popular sizes of deep groove ball bearings are also produced in sealed versions with shields or contact seals on one or both sides, the bearings with shields or seals on both sides are lubricated for life and are maintenance free. A sealed bearings seals has contact on the bearings inner and outer, a shielded bearings shield has contact on the outer only, and Shielded bearings are primarily intended for applications where the inner ring rotates. If the outer ring rotates, there is a risk that the grease will leak from the bearing at high speeds.
Principal Dimensions
Inside diameter: 25mm
Outside diameter: 52mm
Width: 15mm
WORKING INFORMATION
Radial Play (mm) 0.005-0.02
Load Rating C, dyn. N 14000
C, stat. N 7850
Weight (g) 129
Limiting Speed(x1000rpm) Grease 13.0
ZEN Group has been producing quality bearings that meet the stringent demands of our customers. Zen produce both standard and tailor made custom solutions engineered for the toughest production challenges. In these fast moving times their combination of creativity, innovation and technical expertise ensures customers worldwide experience consistent, industry leading quality in every bearing we manufacture. The ZEN group was established in Dusseldorf, Germany in 1992 specializing in manufacturing German industry standard bearings in China.
