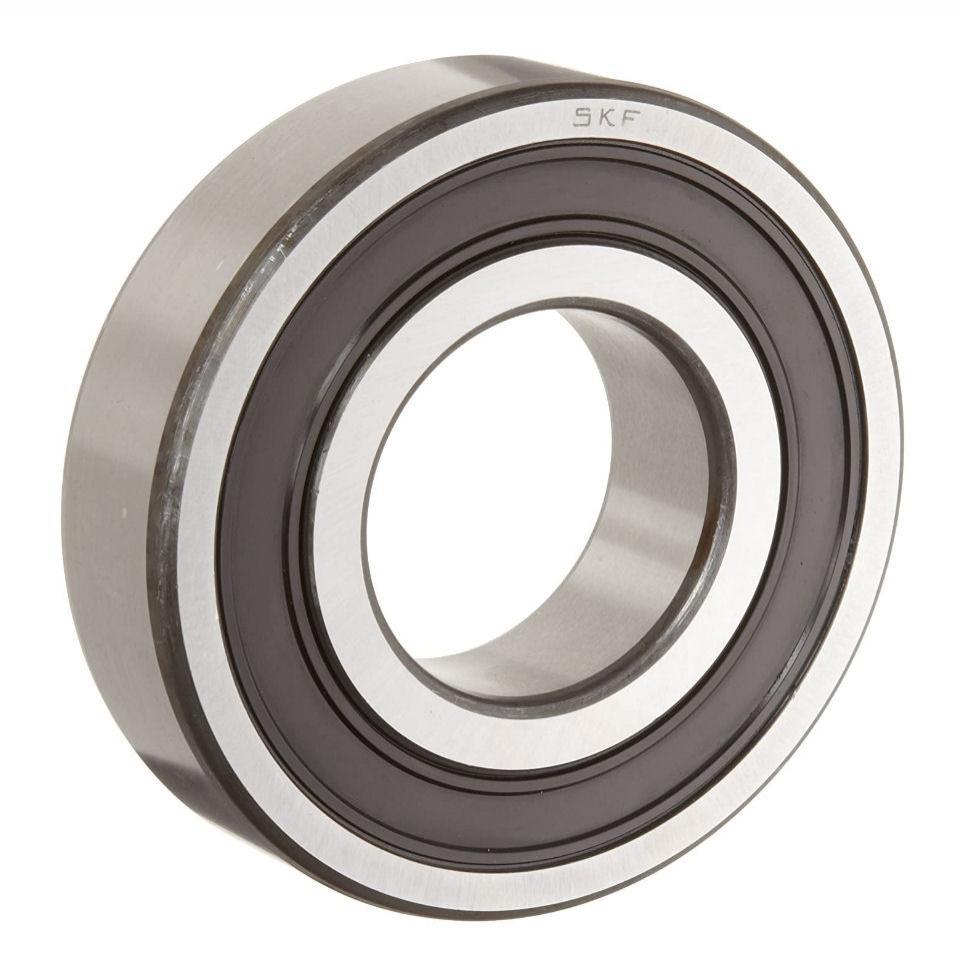

62203-2RS1 SKF Sealed Deep Groove Ball Bearing 17x40x16mm
SKF Single row deep groove ball bearing with two rubber seals 17mm inside x 40mm outside x 16mm width
Regular price
£12.34
inc.VAT
£10.28 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Pickup available at Bearing King
Usually ready in 24 hours
SKF 62203-2RS1 is a high performance single row deep groove ball bearing designed to deliver exceptional reliability and effciency in compact assemblies.
Featuring two rubber seals (2RS1) on both sides, this bearing offers outstanding protection against dust, moisture, and other contaminants helping to extend service life and minimise maintenance.
The unique 62200 series design incorporates a wide inner ring and larger load carrying capacity than standard 62 series bearings of similar bore size, making it an ideal solution for applications where space is limited but high performance is required.
Key Features:
Brand: SKF
Seals: 2RS1 - Rubber seals on both sides
Clearance: Standard
Material: High grade steel for superior durability and resistance to wear
Typical Applications:
Electric motors
Pumps and compressors
Fans and blowers
Textile machinery
Packaging equipment
General machinery with limited space
This bearing combines SKF renowned engineering quality with robust sealing and optimal clearance, ensuring reliable operation across a wide range of industrial and automotive applications.
SKF Single Row Deep Groove Ball Bearings - Trusted Performance, Proven Reliability. Engineered to perform under the most demanding conditions, SKF Single row deep groove ball bearings offer superior load carrying capacity, low friction, and extended service life. Their versatility makes them an excellent choice for a wide range of industries, from automotive to manufacturing. Whether you need high speed performance or robust sealing against contaminants, SKF delivers unmatched quality and value.

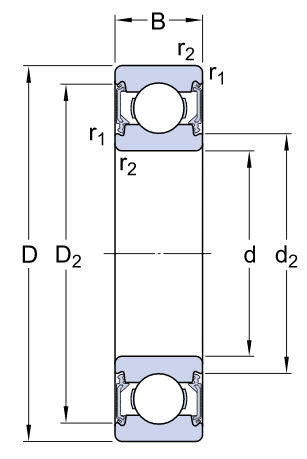

Principal Dimensions
Inside diameter d: 17mm
Outside diameter D: 40mm
Width B: 16mm
Basic Load Ratings
Dynamic: 9,56kn
Static: 4,75kn
Speed Ratings
Reference speed: - r/min
Limiting speed: 12000 r/min
Dimensions mm
d1: 24,5
d2: -
D2: 35
r1,2 min: 0,6
Featuring two rubber seals (2RS1) on both sides, this bearing offers outstanding protection against dust, moisture, and other contaminants helping to extend service life and minimise maintenance.
The unique 62200 series design incorporates a wide inner ring and larger load carrying capacity than standard 62 series bearings of similar bore size, making it an ideal solution for applications where space is limited but high performance is required.
Key Features:
Brand: SKF
Seals: 2RS1 - Rubber seals on both sides
Clearance: Standard
Material: High grade steel for superior durability and resistance to wear
Typical Applications:
Electric motors
Pumps and compressors
Fans and blowers
Textile machinery
Packaging equipment
General machinery with limited space
This bearing combines SKF renowned engineering quality with robust sealing and optimal clearance, ensuring reliable operation across a wide range of industrial and automotive applications.
SKF Single Row Deep Groove Ball Bearings - Trusted Performance, Proven Reliability. Engineered to perform under the most demanding conditions, SKF Single row deep groove ball bearings offer superior load carrying capacity, low friction, and extended service life. Their versatility makes them an excellent choice for a wide range of industries, from automotive to manufacturing. Whether you need high speed performance or robust sealing against contaminants, SKF delivers unmatched quality and value.
Principal Dimensions
Inside diameter d: 17mm
Outside diameter D: 40mm
Width B: 16mm
Basic Load Ratings
Dynamic: 9,56kn
Static: 4,75kn
Speed Ratings
Reference speed: - r/min
Limiting speed: 12000 r/min
Dimensions mm
d1: 24,5
d2: -
D2: 35
r1,2 min: 0,6
