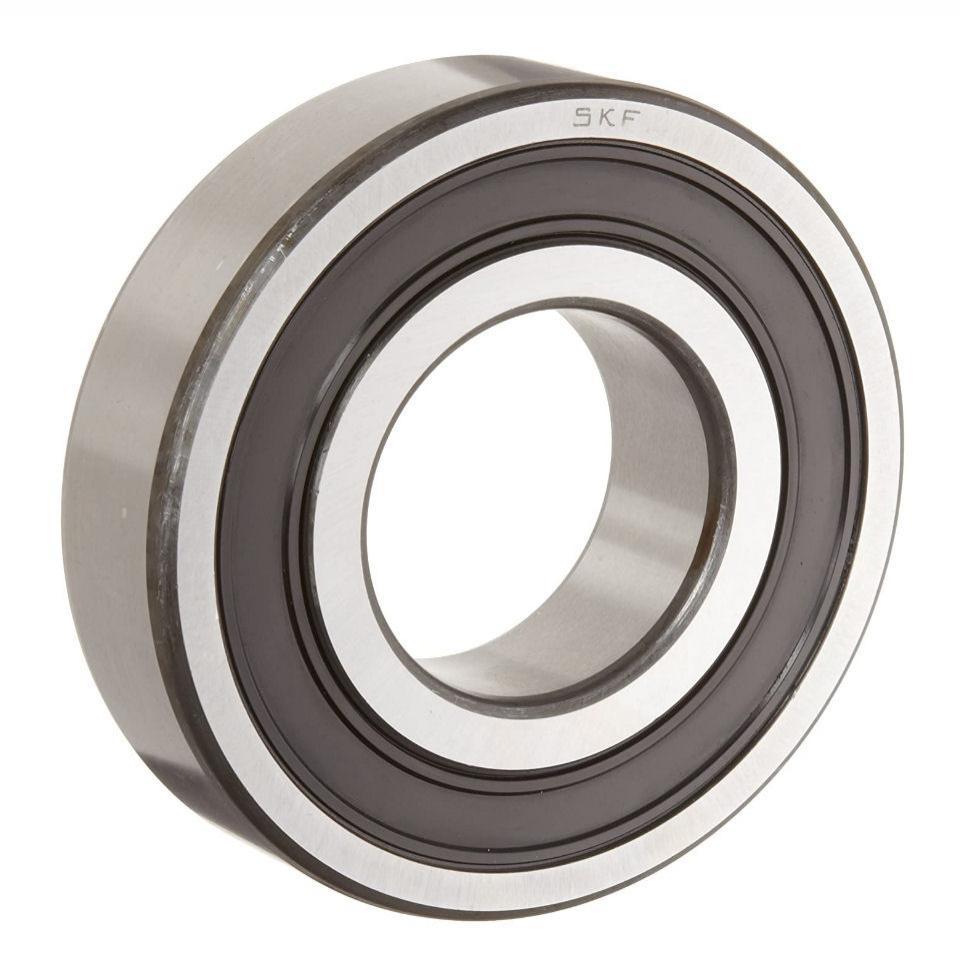

6314-2RS1 SKF Sealed Deep Groove Ball Bearing 70x150x35mm
SKF 6314 Single row deep groove ball bearing with two rubber seals 70mm inside x 150mm outside x 35mm width, also known as 63142RS1, 63142RS, 6314RS1, 63142RSR, 6314RSR
Regular price
£84.68 inc.VAT
£70.57 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
SKF 6314-2RS1 is a high quality single row deep groove ball bearing, engineered for a reliable performance and extended service life. It features two rubber seals one on each side (2RS1) to provide excellent protection against dust, moisture, and other contaminants, making it ideal for demanding environments.
Factory filled with high quality grease, the SKF 6314-2RS1 is ready to install and requires no relubrication, making it a maintenance free solution for a wide range of machinery.
Key Features:
Brand: SKF
Seals: 2RS1 - Rubber seals on both sides
Clearance: Standard
Material: High grade steel for superior durability and resistance to wear
Typical Applications:
Large electric motors and drives
Heavy duty gearboxes
Pumps and compressors
Fans and HVAC systems
Steel mills and paper mills
Mining and quarrying equipment
Construction machinery
Material handling equipment
Heavy industrial equipment
This bearing combines SKF renowned engineering quality with robust sealing and optimal clearance, ensuring reliable operation across a wide range of industrial and automotive applications.
SKF Single Row Deep Groove Ball Bearings - Trusted Performance, Proven Reliability. Engineered to perform under the most demanding conditions, SKF Single row deep groove ball bearings offer superior load carrying capacity, low friction, and extended service life. Their versatility makes them an excellent choice for a wide range of industries, from automotive to manufacturing. Whether you need high speed performance or robust sealing against contaminants, SKF delivers unmatched quality and value.

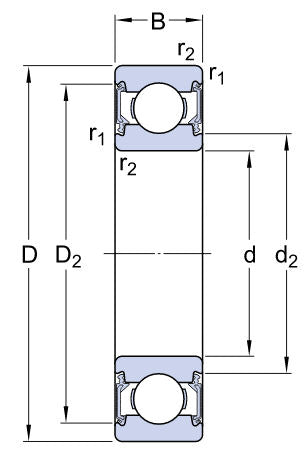

Dimensions
d 70 mm Bore diameter
D 150 mm Outside diameter
B 35 mm Width
d1 94.95 mm Shoulder diameter
D2 129.9 mm Recess diameter
r1,2 min.2.1 mm Chamfer dimension
Abutment dimensions
da min.82 mm Diameter of shaft abutment
da max.94.9 mm Diameter of shaft abutment
Da max.138 mm Diameter of housing abutment
ra max.2 mm Radius of shaft or housing fillet
Calculation data
Basic dynamic load rating C 111 kN
Basic static load rating C0 68 kN
Fatigue load limit Pu 2.75 kN
Limiting speed 3 000 r/min
Minimum load factor kr 0.03
Calculation factor f0 13.2
Mass
Mass bearing 2.62 kg
Properties
Bore type Cylindrical
Cage Sheet metal
Coating Without
Filling slots Without
Locating feature, bearing outer ring None
Lubricant Grease
Matched arrangement No
Material, bearing Bearing steel
Number of rows 1
Radial internal clearance CN
Relubrication feature Without
SKF performance class SKF Explorer
Sealing Seal on both sides
Sealing type Contact
